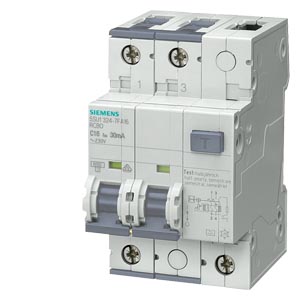

SIEMENS - 5SU1324-7FA06 - FI/LS A, 30MA 2P C6 10KA 3TE
SIEMENS - 5SU1324-7FA06 - FI/LS A, 30MA 2P C6 10KA 3TE
SIEMENS - 5SU1324-7FA06 - FI/LS A, 30MA 2P C6 10KA 3TE Supplied by KKM Solutions. Contact [email protected] for pricing and availability.
| Conductor range | 0.75-35 mm² (solid/stranded), 0.75-25 mm² (finely stranded with end-sleeve) |
|---|---|
| Derated operational current | 5.7 A @ 40 °C; 5.4 A @ 50 °C; 4.86 A @ 65 °C; 4.62 A @ 70 °C |
| EAN/GTIN | 4001869305882 |
| Energy limitation class | 3 |
| Halogen-free | Yes |
| Height | 90 mm; Width: 54 mm (3 modules) mm |
| Insulation voltage (Ui) | 264 V |
| IP protection | IP20 with connected conductors when installed in distribution board |
| Mechanical service life | 10,000 operating cycles |
| Neutral conductor switching | Yes |
| Number of poles | 2 (both poles protected; 1P+N functionality with neutral switching) |
| Order number (MLFB) | 5SU1324-7FA06 |
| Overvoltage category | III |
| Pollution degree | 2 |
| Power loss | max 3.7 W |
| Power supply position | top or bottom |
| Product Line | SENTRON |
| Product type | RCBO (instantaneous design) |
| Rated current In | 6 A |
| Residual current type | A (detects AC and pulsating DC fault currents) |
| Short-circuit breaking capacity | 10 kA per EN 60898 |
| Silicon-free | Yes |
| Standards | IEC/EN 61009-1, IEC/EN 60947-2 |
| Supply voltage | 230/240 V AC, 50 Hz |
| Surge current resistance (8/20 µs) | 1 kA |
| Surge voltage resistance | 4 kV |
| Test voltage (min) | 195 V AC |
| Tightening torque | 2.5-3 N·m |
| Touch protection | Yes |
| Tripping characteristic | C |
| Tripping fault current (IΔn) | 30 mA |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 5SU1324-7FA06 cost?
5SU1324-7FA06 is listed at CA$391.76 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 5SU1324-7FA06?
5SU1324-7FA06 is a Siemens part. KKM Solutions sources Siemens components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 5SU1324-7FA06 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 5SU1324-7FA06 — check Siemens's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 5SU1324-7FA06?
Key specifications include Conductor range: 0.75-35 mm² (solid/stranded), 0.75-25 mm² (finely stranded with end-sleeve); Derated operational current: 5.7 A @ 40 °C; 5.4 A @ 50 °C; 4.86 A @ 65 °C; 4.62 A @ 70 °C; EAN/GTIN: 4001869305882; Energy limitation class: 3. The full specification table on this page lists every published attribute for this part.
How quickly can 5SU1324-7FA06 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
