Siemens 4EP4000-6US00 Siemens
Overview

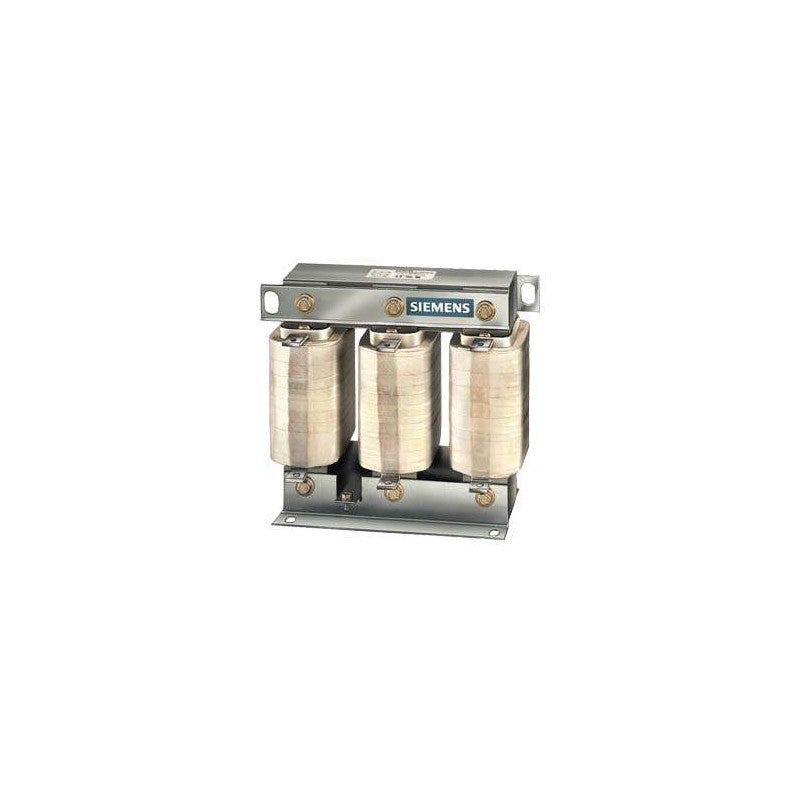

Product Overview The 4EP4000-6US00 is a three-phase input (line) reactor designed for use with inverter drives. Part of the Siemens 4EP reactor family, it is intended to reduce line impedance, limit inrush current and harmonics for AC drive systems. Typical inverting applications include frequency converter installations in motor control panels and industrial variable-frequency drive systems. The reactor is used upstream of the inverter to improve drive reliability and compliance with standards. Best Suited For Installation upstream of Siemens inverters (frequency converters) Industrial motor control panels Mitigation of input line harmonics Limiting inrush current at drive input Three-phase line reactor Yes Nominal voltage 480 V Rated current 112.5 A Inductance 0.113 mH Technical Specifications I/O & Electrical Nominal voltage (Un1) 480 V Rated current (I LN) 112.5 A Maximum thermal current (Ithmax / F1) 125 A @ 60 Hz Impedance (UK) 2 % Inductance (LN) 0.113 mH Physical & Environmental Insulation class / temperature rise Class B at 40 K Enclosure rating IP00 Connection type Flat-type Weight 10.655 kg Packaging dimensions 245 × 290 × 245 mm Certifications UL Recognized CSA Recognized UL/CSA recognized; complies with EN 61558-2-20
Specifications
| Condition | Surplus - Tested (With Warranty) |
|---|
Product details
| Manufacturer | Siemens |
|---|---|
| Manufacturer part number | 4EP4000-6US00 |
| KKM catalog reference | SIEMENS-4EP4000-6US00 |
| Product category | Three-phase 480V line reactor |
| Published specifications | 1 attribute listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
