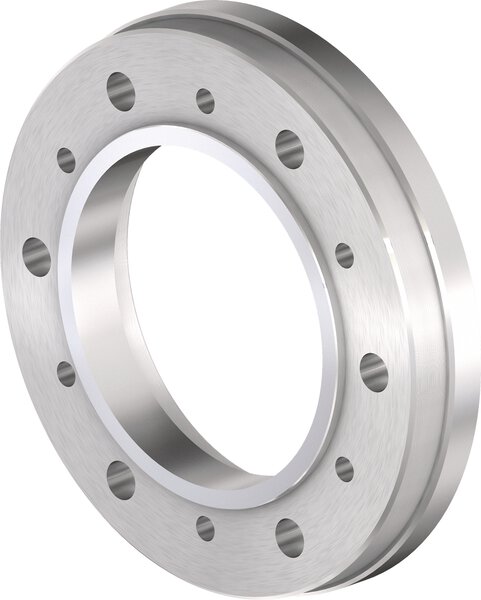

Schunk FFV Z120-D5
Schunk 836202 - Accessories/spare parts - Height [mm]: 24.0; Weight (Kg): 2.8; Through-hole [mm]: 79.6.
The Schunk 836202 is part of the Accessories/spare parts range in our industrial catalog. The manufacturer's published data for this part number specifies Height [mm]: 24.0 and Weight (Kg): 2.8.
Key manufacturer data on file for this item includes Through-hole [mm]: 79.6; Chuck side: Z120; Machine side: ISO 702-2 Nr. 5; Chuck pitch circle [mm]: 137.0; Spindle pitch circle [mm]: 104.8. The complete technical table is shown in the Specifications tab on this page.
| Chuck pitch circle [mm] | 137.0 |
|---|---|
| Chuck side | Z120 |
| Height [mm] | 24.0 |
| Machine side | ISO 702-2 Nr. 5 |
| Spindle pitch circle [mm] | 104.8 |
| Through-hole [mm] | 79.6 |
| Weight (Kg) | 2.8 |
Frequently Asked Questions
How do I get pricing for 836202?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 836202?
836202 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 836202?
Key specifications include Chuck pitch circle [mm]: 137.0; Chuck side: Z120; Height [mm]: 24.0; Machine side: ISO 702-2 Nr. 5. The full specification table on this page lists every published attribute for this part.
How quickly can 836202 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
