Schunk PWG-plus 50-HT
Schunk 39311610 - Angular/radial gripper - Weight (Kg): 0.13; Max Operating Pressure (bar): 8.0; Closing force (with finger lengths of 0 mm) [N]: 316.0.
The Schunk 39311610 is part of the Angular/radial gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.13 and Max Operating Pressure (bar): 8.0.
Key manufacturer data on file for this item includes Closing force (with finger lengths of 0 mm) [N]: 316.0; Recommended workpiece weight [kg]: 0.4; Cylinder volume per double stroke [cm³]: 5.5; Min. operating pressure [bar]: 2.0; Nominal operating pressure [bar]: 6.0; Min. air purge pressure [bar]: 0.5; Max. air purge pressure [bar]: 1.0; Closing time [s]: 0.06; Opening time [s]: 0.06; Max. permissible finger length [mm]: 64.0; IP protection class: 30; Min. ambient temperature [°C]: 5.0. See the Specifications tab on this page for the full technical table.
| Closed angle per jaw [°] | 3.0 |
|---|---|
| Closing force (with finger lengths of 0 mm) [N] | 316.0 |
| Closing moment [Nm] | 3.32 |
| Closing time [s] | 0.06 |
| Cylinder volume per double stroke [cm³] | 5.5 |
| Height Z [mm] | 38.5 |
| High-temperature version | yes |
| IP protection class | 30 |
| Length X [mm] | 56.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. air purge pressure [bar] | 1.0 |
| Max. ambient temperature [°C] | 130.0 |
| Max. axial force Fz max. [N] | 180.0 |
| Max. permissible finger length [mm] | 64.0 |
| Max. permissible inertia per chuck jaw [kgcm²] | 5.3 |
| Min. air purge pressure [bar] | 0.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 2.0 |
| Moment Mx max. [Nm] | 13.0 |
| Moment Mz max. [Nm] | 15.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening angle per jaw [°] | 15.0 |
| Opening time [s] | 0.06 |
| Recommended workpiece weight [kg] | 0.4 |
| Repeat accuracy [mm] | 0.02 |
| Weight (Kg) | 0.13 |
| Width Y [mm] | 30.0 |
Frequently Asked Questions
How do I get pricing for 39311610?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 39311610?
39311610 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 39311610?
Key specifications include Closed angle per jaw [°]: 3.0; Closing force (with finger lengths of 0 mm) [N]: 316.0; Closing moment [Nm]: 3.32; Closing time [s]: 0.06. The full specification table on this page lists every published attribute for this part.
How quickly can 39311610 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

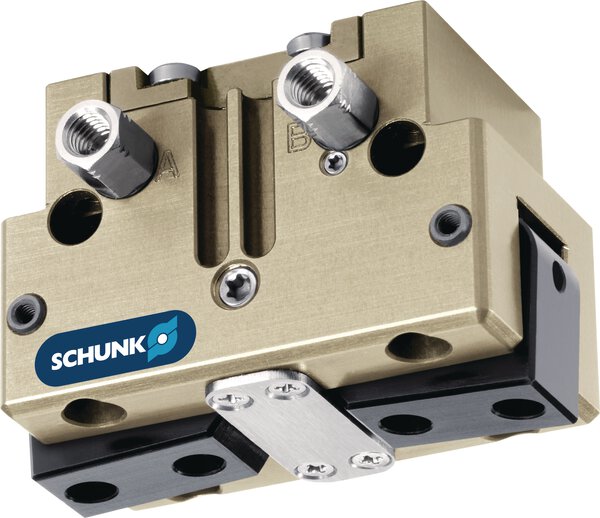

Schunk Schunk PWG-plus 50-AS-HT
