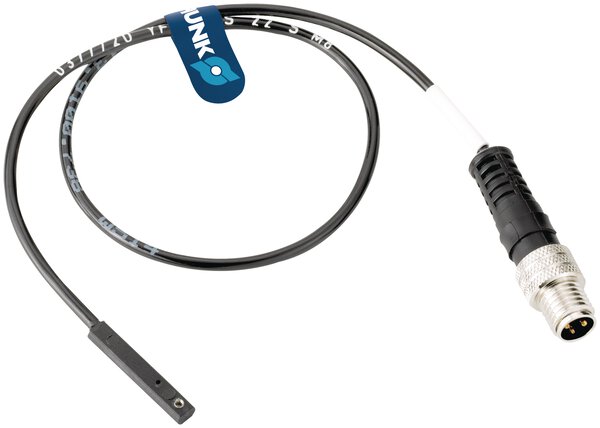

Schunk RMS 22-S-M8
Schunk 377720 - Sensors - Number Of Pins: 3.0; Measuring principle: reed; Number of wires: 2.0.
Schunk 377720 is a Sensors catalog item from Schunk. The manufacturer's published data for this part number specifies Number Of Pins: 3.0 and Measuring principle: reed.
Published specifications for this part include Number of wires: 2.0; Weight (Kg): 0.01; Min. ambient temperature [°C]: -5.0; Max. ambient temperature [°C]: 70.0; Nominal voltage [V]: 24.0; Cable connector/cable end: M8; Switching function: Closer; Type of voltage: DC/AC; Max. voltage [V]: 120.0; Number of switching points: 1; LED display in sensor: no; Cable length L [cm]: 31.0. The complete technical table is shown in the Specifications tab on this page.
| Cable connector/cable end | M8 |
|---|---|
| Cable diameter D [mm] | 2.35 |
| Cable length L [cm] | 31.0 |
| LED display in sensor | no |
| Max. ambient temperature [°C] | 70.0 |
| Max. switching current [A] | 0.5 |
| Max. voltage [V] | 120.0 |
| Measuring principle | reed |
| Min. ambient temperature [°C] | -5.0 |
| Min. bending radius (dynamic) [mm] | 23.5 |
| Min. bending radius (static) [mm] | 11.75 |
| Min. voltage [V] | 0.5 |
| Nominal voltage [V] | 24.0 |
| Number Of Pins | 3.0 |
| Number of switching points | 1 |
| Number of wires | 2.0 |
| Switching function | Closer |
| Tightness IP (sensor, connected) | 67 |
| Tightness IP (sensor) | 67 |
| Type of voltage | DC/AC |
| Weight (Kg) | 0.01 |
| Wire cross section [mm²] | 0.05 |
Frequently Asked Questions
How do I get pricing for 377720?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 377720?
377720 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 377720?
Key specifications include Cable connector/cable end: M8; Cable diameter D [mm]: 2.35; Cable length L [cm]: 31.0; LED display in sensor: no. The full specification table on this page lists every published attribute for this part.
How quickly can 377720 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

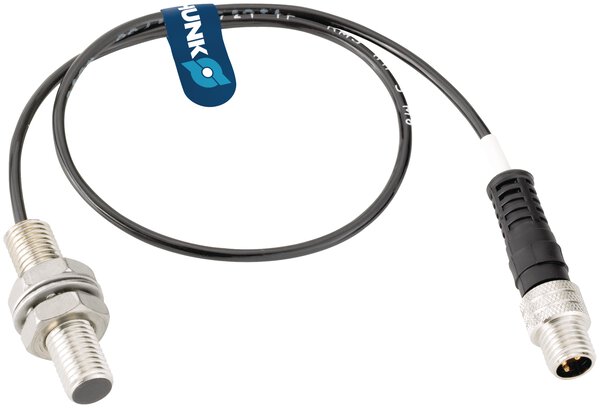

Schunk Schunk RMS 80-S-M8
Schunk Schunk MMS 22-IOL-M12

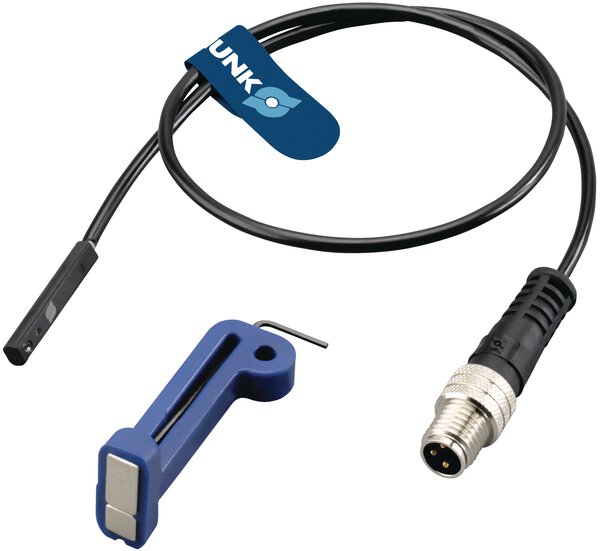

Schunk Schunk MMS 22-IOL-M08
