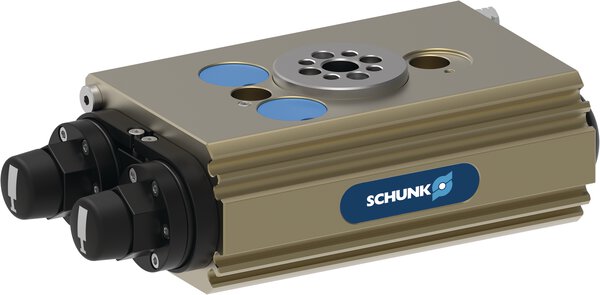

Schunk SRU-plus 20-S-180-3-4-M8-AS
Schunk 361327 - Rotary Actuators - Weight (Kg): 2.05; Repeat accuracy: 0.05; Torque [Nm]: 3.0.
In our catalog, the 361327 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 2.05 and Repeat accuracy: 0.05.
The specification set recorded for this part number covers Torque [Nm]: 3.0; Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; IP protection class: 67; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Cleanroom class ISO 14644-1: 1999; Length X [mm]: 158.9; Width Y [mm]: 76.0; Height Z [mm]: 121.0; Moment My max. [Nm]: 10.4. The complete technical table is shown in the Specifications tab on this page.
| Angle of rotation [°] | 180 |
|---|---|
| Cleanroom class ISO 14644-1 | 1999 |
| Diameter of connecting hose | 6 x 3.9 x 1.05 |
| End position adjustability [°] | 3 |
| End position damping | Damper-elastomer |
| Fluid consumption (2x nom. angle) [cm³] | 60.0 |
| Height Z [mm] | 121.0 |
| IP protection class | 67 |
| Length X [mm] | 158.9 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 800.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Moment My max. [Nm] | 10.4 |
| Nominal operating pressure [bar] | 6.0 |
| Number of intermediate positions | none |
| Repeat accuracy | 0.05 |
| Torque [Nm] | 3.0 |
| Version with electrical feed-throughs | yes |
| Version with fluid feed-through | yes |
| Version with mounting kit | yes |
| Version with speed damping | yes |
| Weight (Kg) | 2.05 |
| Width Y [mm] | 76.0 |
Frequently Asked Questions
How do I get pricing for 361327?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 361327?
361327 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 361327?
Key specifications include Angle of rotation [°]: 180; Cleanroom class ISO 14644-1: 1999; Diameter of connecting hose: 6 x 3.9 x 1.05; End position adjustability [°]: 3. The full specification table on this page lists every published attribute for this part.
How quickly can 361327 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
