Schunk SRU 8.2-H-2
Schunk 356816 - Rotary Actuators - Weight (Kg): 0.19; Repeat accuracy: 0.07; Torque [Nm]: 0.16.
In our catalog, the 356816 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 0.19 and Repeat accuracy: 0.07.
Published specifications for this part include Torque [Nm]: 0.16; Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 65; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Cleanroom class ISO 14644-1: 1999; Length X [mm]: 101.0; Width Y [mm]: 29.0; Height Z [mm]: 35.0; Moment My max. [Nm]: 2.5. See the Specifications tab on this page for the full technical table.
| Angle of rotation [°] | 180 |
|---|---|
| Cleanroom class ISO 14644-1 | 1999 |
| Diameter of connecting hose | 3 x 1.8 x 0.6 |
| End position adjustability [°] | 90 |
| End position damping | hydr. damper |
| Fluid consumption (2x nom. angle) [cm³] | 3.32 |
| Hard damper version | yes |
| Height Z [mm] | 35.0 |
| IP protection class | 65 |
| Length X [mm] | 101.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 255.0 |
| Max. pressure fluid feed-through [bar] | 8.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment My max. [Nm] | 2.5 |
| No. of fluid feed-throughs | 2.0 |
| Nominal operating pressure [bar] | 6.0 |
| Number of intermediate positions | none |
| Repeat accuracy | 0.07 |
| Torque [Nm] | 0.16 |
| Weight (Kg) | 0.19 |
| Width Y [mm] | 29.0 |
Frequently Asked Questions
How do I get pricing for 356816?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 356816?
356816 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 356816?
Key specifications include Angle of rotation [°]: 180; Cleanroom class ISO 14644-1: 1999; Diameter of connecting hose: 3 x 1.8 x 0.6; End position adjustability [°]: 90. The full specification table on this page lists every published attribute for this part.
How quickly can 356816 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SRU 8.2-H-M
Schunk Schunk SRU 8.2-H-M-2

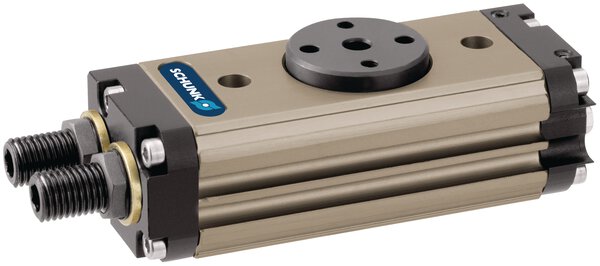

Schunk Schunk SRU 8.2-W-EX
