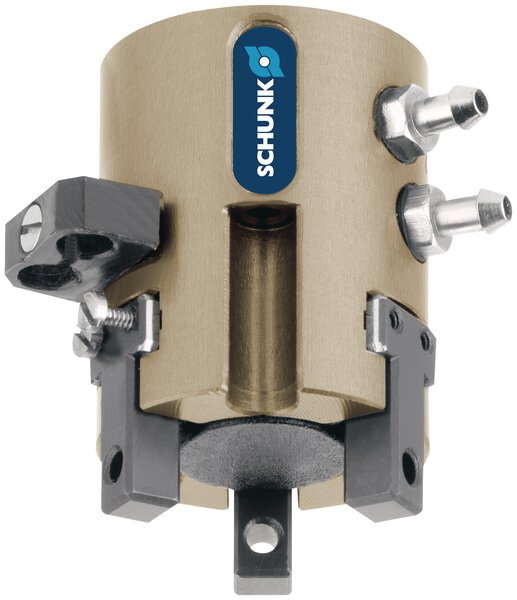

Schunk MPZ 20-AS
Schunk 340491 - Centric Grippers - Weight (Kg): 0.03; Diameter D [mm]: 20.0; Max Operating Pressure (bar): 6.5.
The Schunk 340491 is part of the Centric Grippers range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.03 and Diameter D [mm]: 20.0.
Published specifications for this part include Max Operating Pressure (bar): 6.5; Stroke per jaw [mm]: 1.5; Closing force [N]: 34.0; Closing force (with finger lengths of 0 mm) [N]: 44.0; Min. spring force [N]: 8.0; Recommended workpiece weight [kg]: 0.1; Cylinder volume per double stroke [cm³]: 0.7; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; Closing time [s]: 0.02; Opening time [s]: 0.04; Closing/opening time with spring [s]: 0.2. The complete technical table is shown in the Specifications tab on this page.
| Cleanroom class ISO 14644-1 | 1999 |
|---|---|
| Closing force (with finger lengths of 0 mm) [N] | 44.0 |
| Closing force [N] | 34.0 |
| Closing time [s] | 0.02 |
| Closing/opening time with spring [s] | 0.2 |
| Cylinder volume per double stroke [cm³] | 0.7 |
| Diameter D [mm] | 20.0 |
| Height Z [mm] | 33.0 |
| IP protection class | 40 |
| Max Operating Pressure (bar) | 6.5 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 70.0 |
| Max. permissible finger length [mm] | 20.0 |
| Max. permissible weight per finger [kg] | 0.03 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Min. spring force [N] | 8.0 |
| Moment Mx max. [Nm] | 0.6 |
| Moment My max. [Nm] | 1.0 |
| Moment Mz max. [Nm] | 1.1 |
| Nominal operating pressure [bar] | 6.0 |
| Opening time [s] | 0.04 |
| Recommended workpiece weight [kg] | 0.1 |
| Repeat accuracy [mm] | 0.01 |
| Stroke per jaw [mm] | 1.5 |
| Weight (Kg) | 0.03 |
Frequently Asked Questions
How do I get pricing for 340491?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 340491?
340491 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 340491?
Key specifications include Cleanroom class ISO 14644-1: 1999; Closing force (with finger lengths of 0 mm) [N]: 44.0; Closing force [N]: 34.0; Closing time [s]: 0.02. The full specification table on this page lists every published attribute for this part.
How quickly can 340491 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
