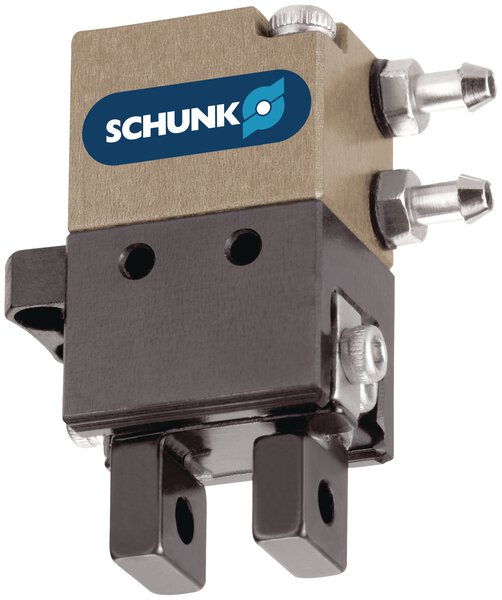

Schunk MPG-plus 12
Schunk 340007 - Parallel gripper - Weight (Kg): 0.01; Max Operating Pressure (bar): 6.0; Stroke per jaw [mm]: 1.2.
Schunk 340007 is a Parallel gripper catalog item from Schunk. The manufacturer's published data for this part number specifies Weight (Kg): 0.01 and Max Operating Pressure (bar): 6.0.
Published specifications for this part include Stroke per jaw [mm]: 1.2; Closing force [N]: 10.0; Closing force (with finger lengths of 0 mm) [N]: 11.0; Recommended workpiece weight [kg]: 0.05; Cylinder volume per double stroke [cm³]: 0.17; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; Closing time [s]: 0.01; Opening time [s]: 0.01; Max. permissible finger length [mm]: 12.0; Max. permissible weight per finger [kg]: 0.01; IP protection class: 30. See the Specifications tab on this page for the full technical table.
| Cleanroom class ISO 14644-1 | 2015 |
|---|---|
| Closing force (with finger lengths of 0 mm) [N] | 11.0 |
| Closing force [N] | 10.0 |
| Closing time [s] | 0.01 |
| Cylinder volume per double stroke [cm³] | 0.17 |
| Height Z [mm] | 19.0 |
| IP protection class | 30 |
| Length X [mm] | 12.0 |
| Max Operating Pressure (bar) | 6.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 25.0 |
| Max. permissible finger length [mm] | 12.0 |
| Max. permissible weight per finger [kg] | 0.01 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mx max. [Nm] | 0.2 |
| Moment My max. [Nm] | 0.2 |
| Moment Mz max. [Nm] | 0.2 |
| Nominal operating pressure [bar] | 6.0 |
| Opening force (with finger lengths of 0 mm) [N] | 9.0 |
| Opening force [N] | 8.0 |
| Opening time [s] | 0.01 |
| Recommended workpiece weight [kg] | 0.05 |
| Repeat accuracy [mm] | 0.02 |
| Stroke per jaw [mm] | 1.2 |
| Weight (Kg) | 0.01 |
| Width Y [mm] | 9.5 |
Frequently Asked Questions
How do I get pricing for 340007?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 340007?
340007 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 340007?
Key specifications include Cleanroom class ISO 14644-1: 2015; Closing force (with finger lengths of 0 mm) [N]: 11.0; Closing force [N]: 10.0; Closing time [s]: 0.01. The full specification table on this page lists every published attribute for this part.
How quickly can 340007 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk KGG 220

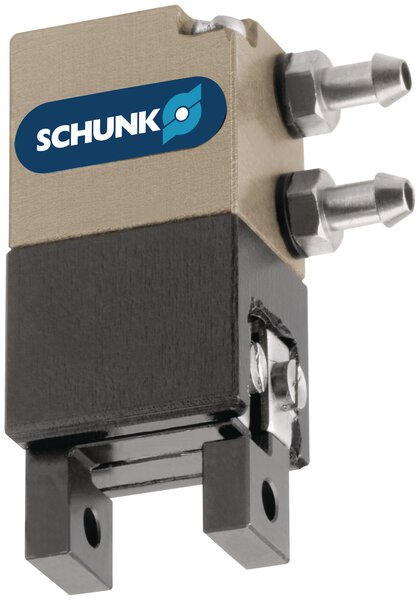

Schunk Schunk MPG-plus 10
Schunk Schunk PGF 50

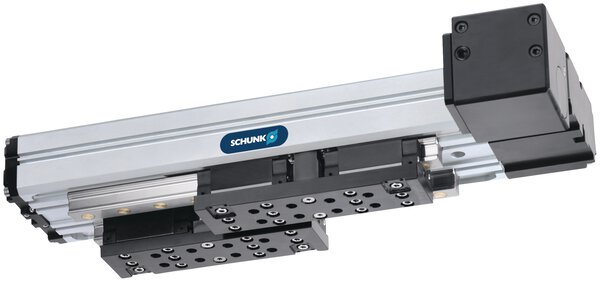

Schunk Schunk EGA-W 40-075-R-N-B
