Schunk EGA-W 25-045-R-N-B
Schunk 332015 - Parallel gripper - Weight (Kg): 2.1; Stroke per jaw [mm]: 45.0; Recommended workpiece weight [kg]: 2.5.
The Schunk 332015 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 2.1 and Stroke per jaw [mm]: 45.0.
Key manufacturer data on file for this item includes Recommended workpiece weight [kg]: 2.5; Closing time [s]: 0.6; Opening time [s]: 0.6; Max. permissible finger length [mm]: 200.0; Max. permissible weight per finger [kg]: 1.0; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 55.0; Repeat accuracy [mm]: 0.05; Length X [mm]: 247.5; Width Y [mm]: 126.6; Height Z [mm]: 59.7. The complete technical table is shown in the Specifications tab on this page.
| Basic version, radially | yes |
|---|---|
| Closing time [s] | 0.6 |
| Height Z [mm] | 59.7 |
| IP protection class | 40 |
| Length X [mm] | 247.5 |
| Max. ambient temperature [°C] | 55.0 |
| Max. axial force Fz max. [N] | 1000.0 |
| Max. gripping force [N] | 500.0 |
| Max. permissible finger length [mm] | 200.0 |
| Max. permissible speed positioning operation [mm/s] | 80.0 |
| Max. permissible speed power operation [mm/s] | 30.0 |
| Max. permissible weight per finger [kg] | 1.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. gripping force [N] | 150.0 |
| Moment Mx max. [Nm] | 29.0 |
| Moment My max. [Nm] | 120.0 |
| Moment Mz max. [Nm] | 33.0 |
| Motor moment required [Nm] | 0.28 |
| Motor speed required [1/min] | 2200.0 |
| Opening time [s] | 0.6 |
| Recommended workpiece weight [kg] | 2.5 |
| Repeat accuracy [mm] | 0.05 |
| Stroke per jaw [mm] | 45.0 |
| Weight (Kg) | 2.1 |
| Width Y [mm] | 126.6 |
Frequently Asked Questions
How do I get pricing for 332015?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 332015?
332015 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 332015?
Key specifications include Basic version, radially: yes; Closing time [s]: 0.6; Height Z [mm]: 59.7; IP protection class: 40. The full specification table on this page lists every published attribute for this part.
How quickly can 332015 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk EGA-W 25-045-P-N-B
Schunk Schunk EGA-W 25-060-P-N-B
Schunk Schunk EGA-W 25-060-R-N-B

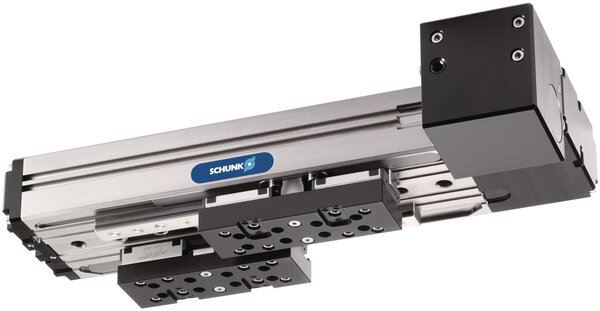

Schunk Schunk EGA-W 25-030-R-N-B

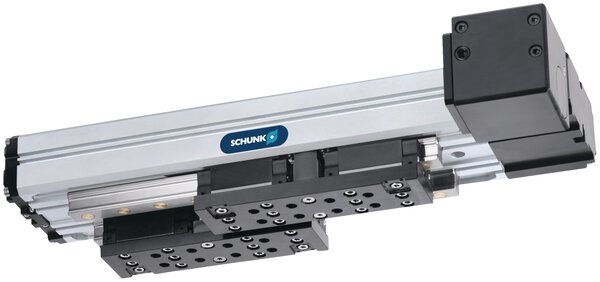

Schunk Schunk EGA-W 40-050-P-N-B
