324902 — Schunk AGE-F-XY-031-3
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 324902 - Compensation units - Weight (Kg): 0.123; Diameter D [mm]: 45.0; Min. ambient temperature [°C]: 5.0.
Overview
Part number 324902 from Schunk. Specifications on file: Compensation XY* [mm] ± 1.5; Diameter D [mm] 45.0; Force Fz max. [N] 100.0; Height Z [mm] 27.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the 324902 from Schunk is listed under the Compensation units category. The manufacturer's published data for this part number specifies Weight (Kg): 0.123 and Diameter D [mm]: 45.0.
The specification set recorded for this part number covers Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 80.0; Repeat accuracy [mm]: ± 0.01; Height Z [mm]: 27.0; Moment Mx max. [Nm]: 3.5; Moment My max. [Nm]: 3.5; Moment Mz max. [Nm]: 6.0; Force Fz max. [N]: 100.0; Compensation XY* [mm]: ± 1.5; Recommended handling weight, vertical [kg]: 1.5; Min. return force with integrated spring [N]: 5.5; Max. return force with integrated spring [N]: 7.0. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Compensation XY* [mm] | ± 1.5 |
|---|---|
| Diameter D [mm] | 45.0 |
| Force Fz max. [N] | 100.0 |
| Height Z [mm] | 27.0 |
| Max. ambient temperature [°C] | 80.0 |
| Max. force Fd [N] | 200.0 |
| Max. return force with integrated spring [N] | 7.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. return force with integrated spring [N] | 5.5 |
| Moment Mx max. [Nm] | 3.5 |
| Moment My max. [Nm] | 3.5 |
| Moment Mz max. [Nm] | 6.0 |
| Recommended handling weight, vertical [kg] | 1.5 |
| Repeat accuracy [mm] | ± 0.01 |
| Spring rate [N/mm] | 1.3 |
| Weight (Kg) | 0.123 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 324902 |
| Published specifications | 16 attributes listed |
| Related part numbers | 9 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 324902?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 324902?
324902 is made by Schunk. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 324902, and the quote confirms condition and lead time before you order.
Is the 324902 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 324902, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 324902?
No published lifecycle status is on file for 324902. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 324902?
Key specifications include Compensation XY* [mm]: ± 1.5; Diameter D [mm]: 45.0; Force Fz max. [N]: 100.0; Height Z [mm]: 27.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 324902 rated for?
Per the published specification for 324902: Max. ambient temperature [°C]: 80.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How much does 324902 weigh?
Per the published specification for 324902: Recommended handling weight, vertical [kg]: 1.5; Weight (Kg): 0.123. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 324902 ship?
Lead time for 324902 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products

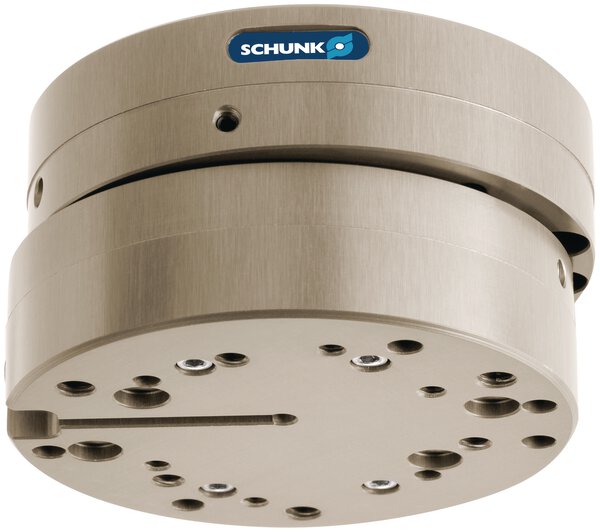

Schunk Schunk AGE-F-XY-031-2
Schunk Schunk AGE-F-XY-040-1
Schunk Schunk AGE-F-XY-031-1
Schunk Schunk AGE-F-XY-040-2

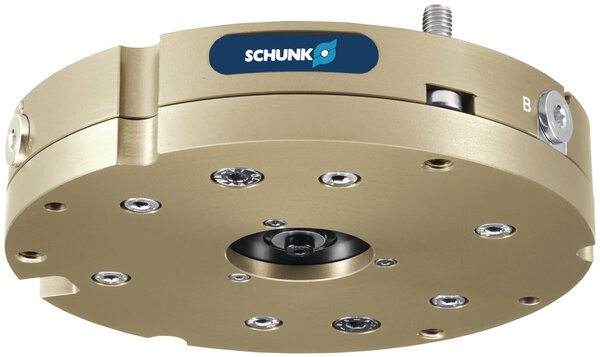

Schunk Schunk TCU-Z-160-3-MV
