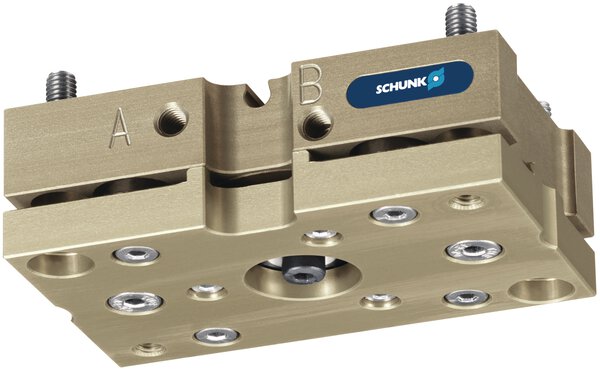

Schunk TCU-P-100-3-OV
Schunk 324811 - Compensation units - Weight (Kg): 0.22; Min. ambient temperature [°C]: -10.0; Max. ambient temperature [°C]: 90.0.
In our catalog, the 324811 from Schunk is listed under the Compensation units category. The manufacturer's published data for this part number specifies Weight (Kg): 0.22 and Min. ambient temperature [°C]: -10.0.
The specification set recorded for this part number covers Max. ambient temperature [°C]: 90.0; Length X [mm]: 50.0; Width Y [mm]: 81.0; Moment Mx max. [Nm]: 60.0; Moment My max. [Nm]: 25.0; Moment Mz max. [Nm]: 60.0; Locking: Without locking; Direct connection to*: PGN-plus 100; Max. force Fd [N]: 2000.0; Hardness of the elastomer [Shore]: 68.0; Deflection X [°]: ± 1; Deflection Y [°]: ± 1.5. See the Specifications tab on this page for the full technical table.
| Deflection X [°] | ± 1 |
|---|---|
| Deflection Y [°] | ± 1.5 |
| Deflection Z [°] | ± 1.2 |
| Direct connection to* | PGN-plus 100 |
| Hardness of the elastomer [Shore] | 68.0 |
| Length X [mm] | 50.0 |
| Locking | Without locking |
| Max. ambient temperature [°C] | 90.0 |
| Max. force Fd [N] | 2000.0 |
| Min. ambient temperature [°C] | -10.0 |
| Moment Mx max. [Nm] | 60.0 |
| Moment My max. [Nm] | 25.0 |
| Moment Mz max. [Nm] | 60.0 |
| Weight (Kg) | 0.22 |
| Width Y [mm] | 81.0 |
Frequently Asked Questions
How do I get pricing for 324811?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 324811?
324811 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 324811?
Key specifications include Deflection X [°]: ± 1; Deflection Y [°]: ± 1.5; Deflection Z [°]: ± 1.2; Direct connection to*: PGN-plus 100. The full specification table on this page lists every published attribute for this part.
How quickly can 324811 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk TCU-P-100-2-MV
Schunk Schunk TCU-P-125-3-MV

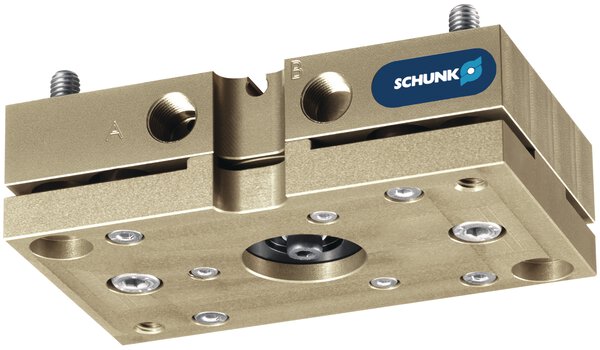

Schunk Schunk TCU-P-125-3-OV

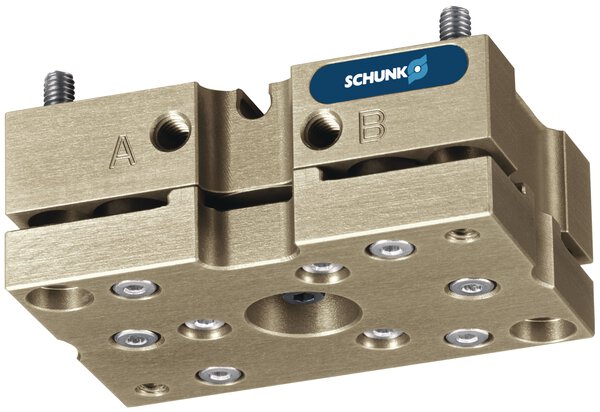

Schunk Schunk TCU-P-080-3-OV

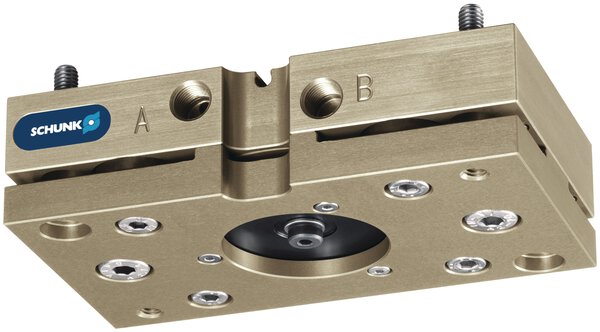

Schunk Schunk TCU-P-160-3-MV
