Schunk AGE-S-XYZ-100-P
| Compensation XY* [mm] | ± 4 |
|---|---|
| Compensation Z [mm] | 10.0 |
| Force Fz max. [N] | 110.0 |
| Height Z [mm] | 85.5 |
| Length X [mm] | 142.0 |
| Locking force [N] | 800.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. force Fd [N] | 500.0 |
| Max. radial force, position storage [N] | 126.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 2.5 |
| Min. spring force [N] | 240.0 |
| Moment Mx max. [Nm] | 30.0 |
| Moment My max. [Nm] | 30.0 |
| Moment Mz max. [Nm] | 30.0 |
| Nominal operating pressure [bar] | 6.0 |
| Piston force Z [N] | 800.0 |
| Position memory piston force [N] | 1100.0 |
| Recommended handling weight, horizontal [kg] | 5.5 |
| Recommended handling weight, vertical [kg] | 9.0 |
| Repeat accuracy [mm] | 0.1 |
| Robot-side connection | ISO 9409-1-100-6-M8 |
| Tool-side connection | ISO 9409-1-100-6-M8 |
| Weight (Kg) | 3.6 |
| Width Y [mm] | 125.0 |
Frequently Asked Questions
How do I get pricing for 324504?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 324504?
324504 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 324504?
Key specifications include Compensation XY* [mm]: ± 4; Compensation Z [mm]: 10.0; Force Fz max. [N]: 110.0; Height Z [mm]: 85.5. The full specification table on this page lists every published attribute for this part.
How quickly can 324504 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk AGE-S-XY-125-0

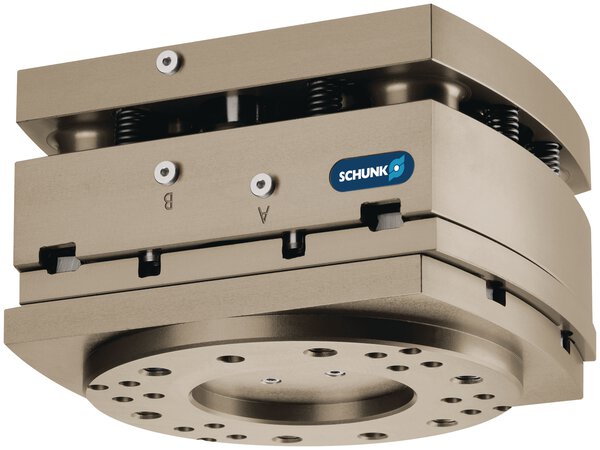

Schunk Schunk AGE-S-XY-100-P
Schunk Schunk AGE-S-XY-125-P
Schunk Schunk AGE-S-XYZ-100-0

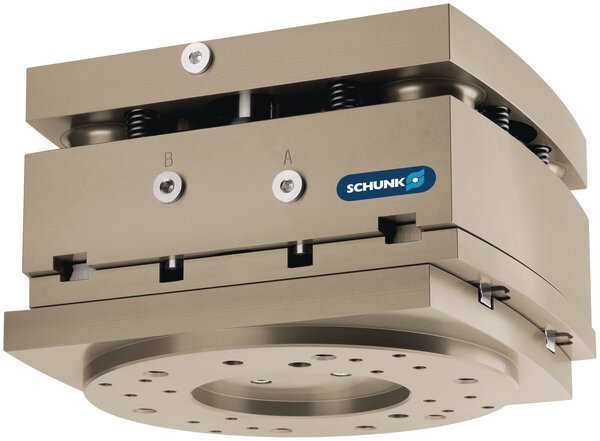

Schunk Schunk AGE-S-XY-160-0
