Schunk AGE-Z 2-063-1
| Compensation Z [mm] | 8.0 |
|---|---|
| Force Fz max. [N] | 350.0 |
| Height Z [mm] | 59.5 |
| Length X [mm] | 80.0 |
| Locking force extended at 6 bar [N] | 900.0 |
| Locking force retracted at 6 bar [N] | 800.0 |
| Max Operating Pressure (bar) | 6.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. force Fd [N] | 1000.0 |
| Max. spring force [N] | 60.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 2.5 |
| Min. spring force [N] | 40.0 |
| Moment Mx max. [Nm] | 20.0 |
| Moment My max. [Nm] | 20.0 |
| Moment Mz max. [Nm] | 50.0 |
| Recommended handling weight, vertical [kg] | 9.0 |
| Repeat accuracy [mm] | 0.02 |
| Robot-side connection | ISO 9409-1-63-4-M6 |
| Weight (Kg) | 0.8 |
| Width Y [mm] | 80.0 |
Frequently Asked Questions
How do I get pricing for 324466?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 324466?
324466 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 324466?
Key specifications include Compensation Z [mm]: 8.0; Force Fz max. [N]: 350.0; Height Z [mm]: 59.5; Length X [mm]: 80.0. The full specification table on this page lists every published attribute for this part.
How quickly can 324466 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk AGE-Z 2-063-2

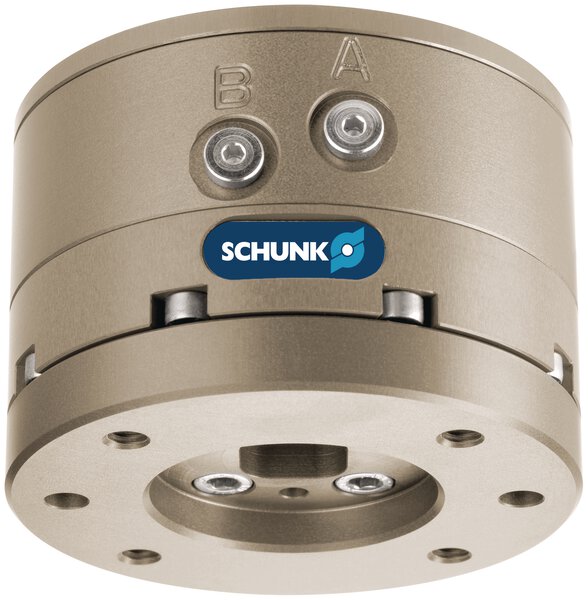

Schunk Schunk AGE-XY-063-P
