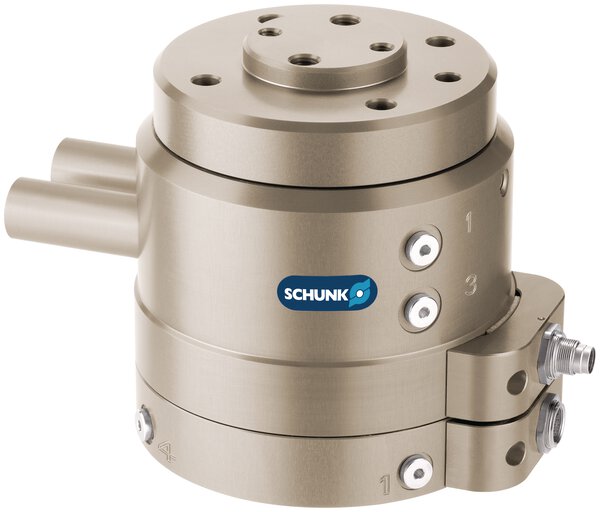

Schunk DDF 2-063-P4-E6
Schunk 323068 - Rotary feed-through - Weight (Kg): 2.2; Diameter D [mm]: 95.0; Min. ambient temperature [°C]: 5.0.
The Schunk 323068 is part of the Rotary feed-through range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 2.2 and Diameter D [mm]: 95.0.
The specification set recorded for this part number covers Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Height Z [mm]: 97.5; Nominal torque [Nm]: 3.0; Force Fz max. [N]: 1400.0; Angle of rotation [°]: > 360; Robot-side connection: ISO 9409-1-63-4-M6; No. of fluid feed-throughs: 4.0; Recommended handling weight [kg]: 35.0; Air connection thread pneumatic feed-through: 4x M5; Max. air pressure air purge [bar]: 1.0; Number of electrical feed-throughs: 6.0. See the Specifications tab on this page for the full technical table.
| Air connection thread pneumatic feed-through | 4x M5 |
|---|---|
| Angle of rotation [°] | > 360 |
| Bending moment Mx [Nm] | 200.0 |
| Bending moment My [Nm] | 200.0 |
| Diameter D [mm] | 95.0 |
| Feed-through | pneumatic and electric feed-through |
| Force Fz max. [N] | 1400.0 |
| Height Z [mm] | 97.5 |
| Max. air pressure air purge [bar] | 1.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. current strength [A] | 1.0 |
| Max. drive speed [1/min] | 110.0 |
| Max. dynamic bending moment Mx* [Nm] | 85.0 |
| Max. dynamic bending moment My* [Nm] | 85.0 |
| Max. dynamic torsional moment Mz* [Nm] | 60.0 |
| Max. force Fd [N] | 6000.0 |
| Max. pressure per connection [bar] | 10.0 |
| Max. shear force Fq* [N] | 350.0 |
| Max. speed of rotation [°/s] | 660.0 |
| Max. voltage [V] | 60.0 |
| Min. ambient temperature [°C] | 5.0 |
| No. of fluid feed-throughs | 4.0 |
| Nominal torque [Nm] | 3.0 |
| Number of electrical feed-throughs | 6.0 |
| Rate of flow at 6 bar (per channel) [l/min] | 110.0 |
| Recommended handling weight [kg] | 35.0 |
| Robot-side connection | ISO 9409-1-63-4-M6 |
| Starting torque [Nm] | 4.5 |
| Weight (Kg) | 2.2 |
Frequently Asked Questions
How do I get pricing for 323068?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 323068?
323068 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 323068?
Key specifications include Air connection thread pneumatic feed-through: 4x M5; Angle of rotation [°]: > 360; Bending moment Mx [Nm]: 200.0; Bending moment My [Nm]: 200.0. The full specification table on this page lists every published attribute for this part.
How quickly can 323068 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

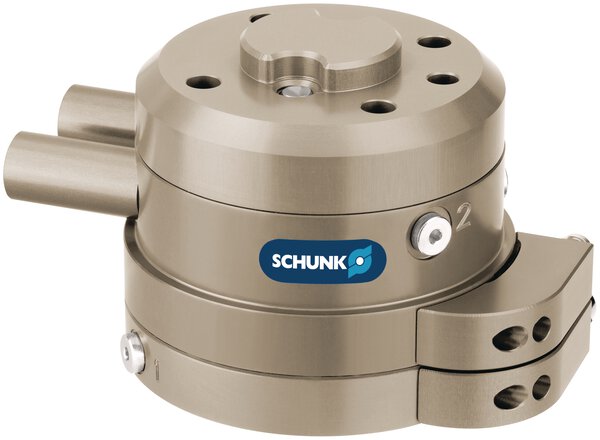

Schunk Schunk DDF 2-050-P2

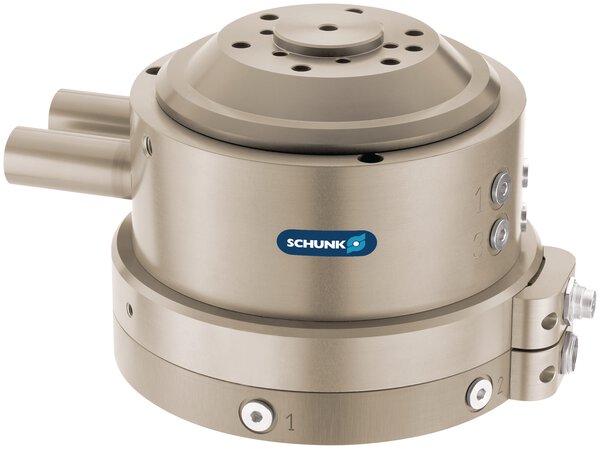

Schunk Schunk DDF 2-080-1-P4-E10
Schunk Schunk DDF-SE-080

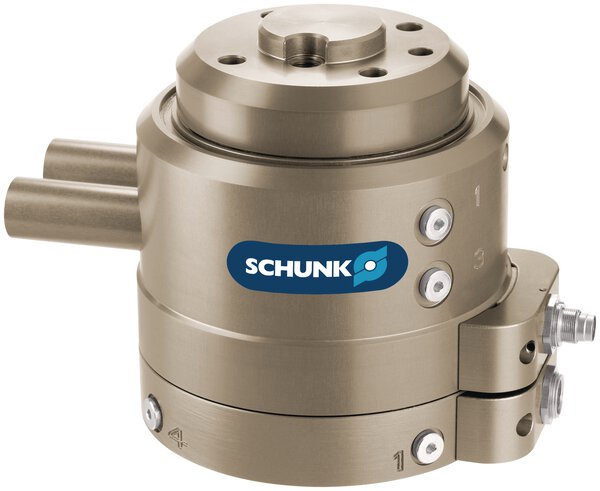

Schunk Schunk DDF 2-050-1-P4-E6

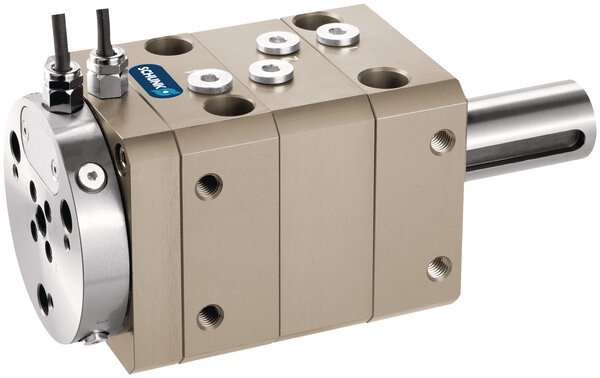

Schunk Schunk DDF-SE-120
