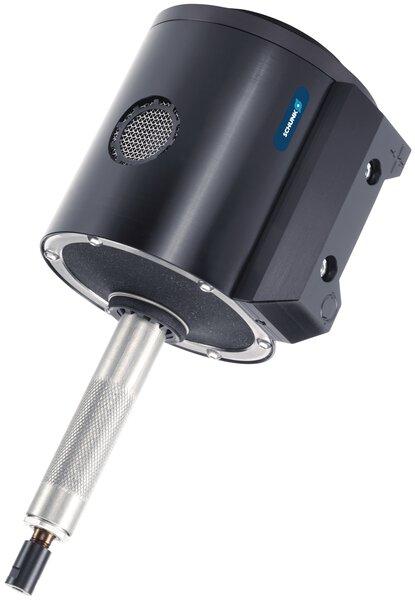

Schunk FDB-150
Schunk 322200 - FDB - Weight (Kg): 1.11; Diameter D [mm]: 82.6; Min. ambient temperature [°C]: 5.0.
The Schunk 322200 is part of the FDB range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 1.11 and Diameter D [mm]: 82.6.
The specification set recorded for this part number covers Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 35.0; Height Z [mm]: 193.7; Noise emission [dB(A)]: 78; Force Fx max. [N]: 6.7; Force Fy max. [N]: 6.7; Min. compensating pressure [bar]: 1.0; Max. compensation pressure [bar]: 4.1; Power [W]: 150.0; Idle speed [1/min]: 65000.0; Max. compensation X [mm]: ± 6.4; Max. compensation Y [mm]: ± 6.4. See the Specifications tab on this page for the full technical table.
| Collet diameter [mm] | 3.0 |
|---|---|
| Diameter D [mm] | 82.6 |
| Force Fx max. [N] | 6.7 |
| Force Fy max. [N] | 6.7 |
| Height Z [mm] | 193.7 |
| Idle air consumption [l/s] | 1.4 |
| Idle speed [1/min] | 65000.0 |
| Max. ambient temperature [°C] | 35.0 |
| Max. compensation force [N] | 5.8 |
| Max. compensation pressure [bar] | 4.1 |
| Max. compensation X [mm] | ± 6.4 |
| Max. compensation Y [mm] | ± 6.4 |
| Min. ambient temperature [°C] | 5.0 |
| Min. compensating pressure [bar] | 1.0 |
| Min. compensation force [N] | 0.9 |
| Noise emission [dB(A)] | 78 |
| Operating pressure [bar] | 6.2 |
| Power [W] | 150.0 |
| Recommended compensation path [mm] | ± 3.2 |
| Stalled air consumption [l/s] | 3.8 |
| Weight (Kg) | 1.11 |
