Schunk OPS-100
Schunk 321130 - Anti-collision unit - Weight (Kg): 0.7; Diameter D [mm]: 100.0; Max Operating Pressure (bar): 5.0.
This listing covers the Schunk 321130, a part number in the Anti-collision unit category. The manufacturer's published data for this part number specifies Weight (Kg): 0.7 and Diameter D [mm]: 100.0.
Key manufacturer data on file for this item includes Max Operating Pressure (bar): 5.0; Min. operating pressure [bar]: 0.5; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: ± 0.02; Height Z [mm]: 63.0; Moment Mx max. [Nm]: 19.0; Moment My max. [Nm]: 19.0; Moment Mz max. [Nm]: 50.0; Angular deflection [°]: ± 12; Deflection rotatory [°]: ± 360; Axial deflection [mm]: 14.0. See the Specifications tab on this page for the full technical table.
| Angular deflection [°] | ± 12 |
|---|---|
| Axial deflection [mm] | 14.0 |
| Deflection rotatory [°] | ± 360 |
| Diameter D [mm] | 100.0 |
| Height Z [mm] | 63.0 |
| Max Operating Pressure (bar) | 5.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. force Fd [N] | 1500.0 |
| Max. supply voltage [V] | 30.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 0.5 |
| Min. supply voltage [V] | 10.0 |
| Min. triggering moment, angular Mx, My [Nm] | 5.0 |
| Moment Mx max. [Nm] | 19.0 |
| Moment My max. [Nm] | 19.0 |
| Moment Mz max. [Nm] | 50.0 |
| Repeat accuracy [mm] | ± 0.02 |
| Repeat accuracy, rotary [min] | 5.0 |
| Responsiveness [mm] | 0.1 |
| Weight (Kg) | 0.7 |
Frequently Asked Questions
How do I get pricing for 321130?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 321130?
321130 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 321130?
Key specifications include Angular deflection [°]: ± 12; Axial deflection [mm]: 14.0; Deflection rotatory [°]: ± 360; Diameter D [mm]: 100.0. The full specification table on this page lists every published attribute for this part.
How quickly can 321130 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk OPS-160

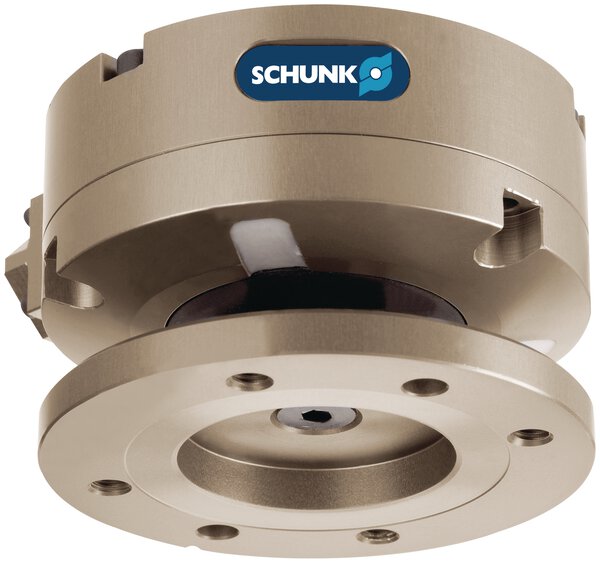

Schunk Schunk OPS-080
Schunk Schunk OPS-200

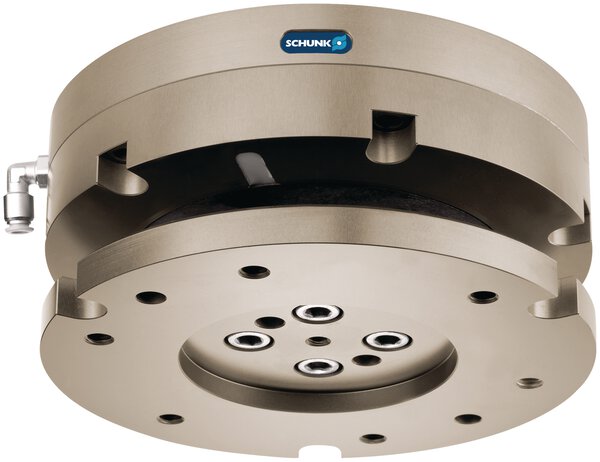

Schunk Schunk OPS-200-VS

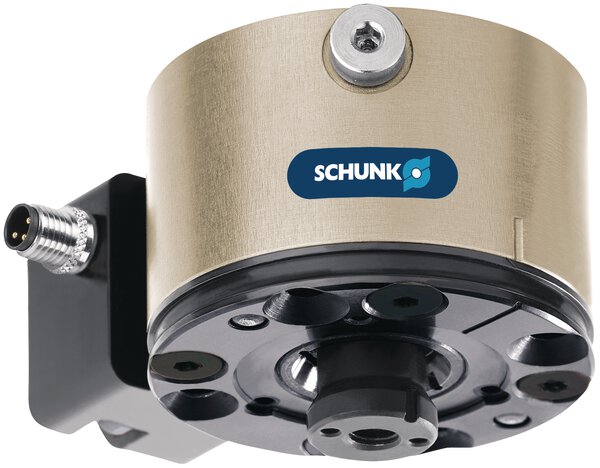

Schunk Schunk OPR-048-P00
