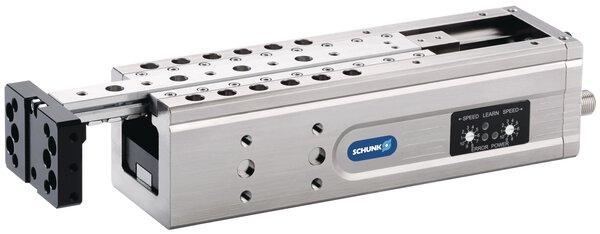

Schunk ELP 025-H080
| Cleanroom class ISO 14644-1 | 2015 |
|---|---|
| Clearance N (for moment load) [mm] | 139.0 |
| Communication interface | digital I/O |
| Controller electronics | integrated |
| Dead weight including slide [kg] | 2.0 |
| Drive concept | Linear direct drive |
| Force Fy max. [N] | 1140.0 |
| Force Fz max. [N] | 1140.0 |
| Height Z [mm] | 56.0 |
| IP protection class | 20 |
| Length X [mm] | 246.0 |
| Max. ambient temperature [°C] | 55.0 |
| Max. current [A] | 2.0 |
| Max. payload (horizontal) [kg] | 1.0 |
| Max. payload (vertical) [kg] | 0.75 |
| Max. stroke [mm] | 80.0 |
| Min. ambient temperature [°C] | 5.0 |
| Moment Mx max. [Nm] | 9.0 |
| Moment My max. [Nm] | 16.0 |
| Moment Mz max. [Nm] | 16.0 |
| Noise emission [dB(A)] | 52 |
| Nominal current [A] | 0.64 |
| Nominal force [N] | 17.0 |
| Nominal voltage [V] | 24.0 |
| Number of digital inputs | 2.0 |
| Rated current logic [A] | 0.04 |
| Repeat accuracy [mm] | ± 0.01 |
| Weight of slide [kg] | 0.34 |
| Width Y [mm] | 60.0 |
Frequently Asked Questions
How do I get pricing for 315716?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 315716?
315716 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 315716?
Key specifications include Cleanroom class ISO 14644-1: 2015; Clearance N (for moment load) [mm]: 139.0; Communication interface: digital I/O; Controller electronics: integrated. The full specification table on this page lists every published attribute for this part.
How quickly can 315716 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk ELP 025-H050
Schunk Schunk ELP 050-H040

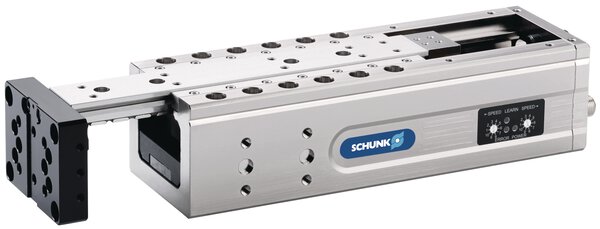

Schunk Schunk ELP 050-H060
Schunk Schunk ELP 025-H030

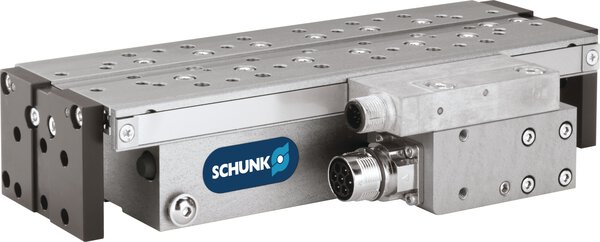

Schunk Schunk ELB 70-H050-D-N-L-2
