Schunk RST-D 60-8
Schunk 315502 - Rotary Actuators - Pitch: 8.0 in; Weight (Kg): 1.0; Repeat accuracy: 0.09.
Schunk 315502 is a Rotary Actuators catalog item from Schunk. The manufacturer's published data for this part number specifies Pitch: 8.0 in and Weight (Kg): 1.0.
Key manufacturer data on file for this item includes Repeat accuracy: 0.09; Torque [Nm]: 3.1; Max Operating Pressure (bar): 8.0; Cylinder volume per double stroke [cm³]: 11.0; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; IP protection class: 50; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Length X [mm]: 93.0; Width Y [mm]: 70.0; Height Z [mm]: 54.0. See the Specifications tab on this page for the full technical table.
| Angle of rotation [°] | 45.0 |
|---|---|
| Axial run-out cycle ring [mm] | 0.02 |
| Cylinder volume per double stroke [cm³] | 11.0 |
| Direction of rotation | on both sides |
| Height Z [mm] | 54.0 |
| IP protection class | 50 |
| Length X [mm] | 93.0 |
| Locking time [s] | 0.1 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 1950.0 |
| Max. radial force Fr max. [N] | 1000.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Moment My max. [Nm] | 18.0 |
| Moment Mz max. [Nm] | 15.0 |
| Nominal operating pressure [bar] | 6.0 |
| Number of hydraulic shock absorber | 2.0 |
| Parallelism cycle ring [mm] | 0.04 |
| Pitch | 8.0 in |
| Repeat accuracy | 0.09 |
| Run-out cycle ring [mm] | 0.02 |
| Torque [Nm] | 3.1 |
| Unlocking time [s] | 0.1 |
| Weight (Kg) | 1.0 |
| Width Y [mm] | 70.0 |
Frequently Asked Questions
How do I get pricing for 315502?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 315502?
315502 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 315502?
Key specifications include Angle of rotation [°]: 45.0; Axial run-out cycle ring [mm]: 0.02; Cylinder volume per double stroke [cm³]: 11.0; Direction of rotation: on both sides. The full specification table on this page lists every published attribute for this part.
How quickly can 315502 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk RST-D 60-6
Schunk Schunk RST-D 60-12
Schunk Schunk RST-D 87-4
Schunk Schunk RST-D 60-4

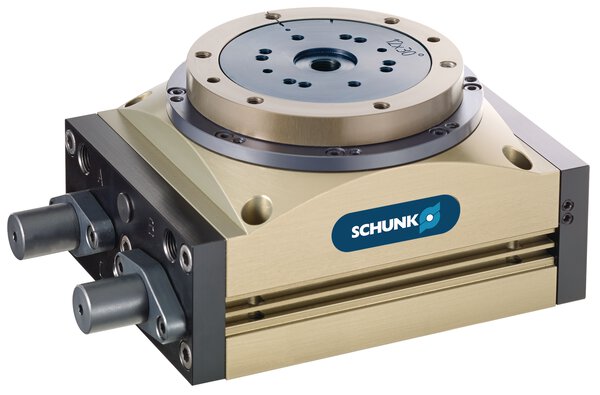

Schunk Schunk RST-D 87-6
