Schunk HLM 50-H050
| Bar diameter [mm] | 6.0 |
|---|---|
| Clearance N (for moment load) [mm] | 34.0 |
| Cylinder volume/10 mm per double stroke [cm³] | 2.0 |
| Drive concept | Piston rod cylinders |
| extend force [N] | 120.0 |
| Height Z [mm] | 45.0 |
| IP protection class | 40 |
| Length X [mm] | 166.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 372.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment Mx max. [Nm] | 17.0 |
| Moment My max. [Nm] | 15.1 |
| Moment Mz max. [Nm] | 7.55 |
| Nominal operating pressure [bar] | 6.0 |
| Overall Length (mm) | 166.0 |
| Piston diameter [mm] | 16.0 |
| Repeat accuracy [mm] | 0.02 |
| retracted force [N] | 103.0 |
| Stroke [mm] | 50.0 |
| Weight (Kg) | 1.07 |
| Width Y [mm] | 70.0 |
Frequently Asked Questions
How do I get pricing for 314584?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 314584?
314584 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 314584?
Key specifications include Bar diameter [mm]: 6.0; Clearance N (for moment load) [mm]: 34.0; Cylinder volume/10 mm per double stroke [cm³]: 2.0; Drive concept: Piston rod cylinders. The full specification table on this page lists every published attribute for this part.
How quickly can 314584 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk HLM 50-H025

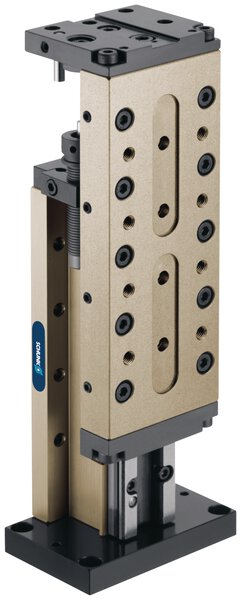

Schunk Schunk HLM 50-H050-ASP

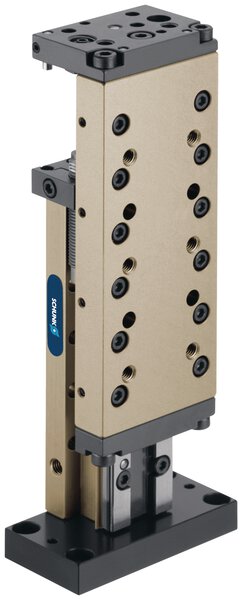

Schunk Schunk HLM 25-H059
