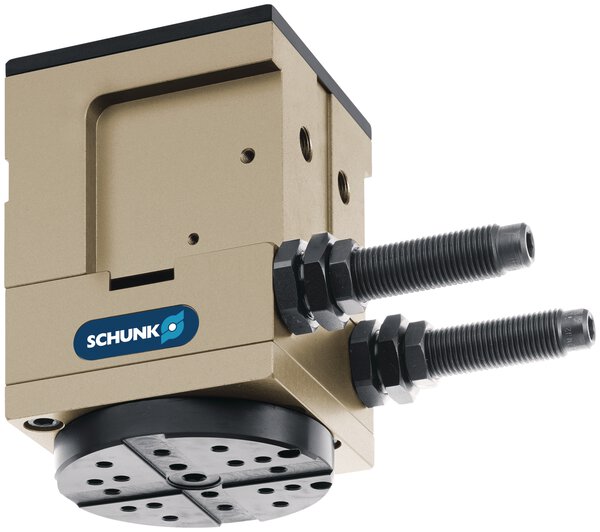

Schunk RM 200-W90-2
Schunk 313994 - Rotary Actuators - Weight (Kg): 2.1; Repeat accuracy: 0.044; Torque [Nm]: 4.0.
In our catalog, the 313994 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 2.1 and Repeat accuracy: 0.044.
The specification set recorded for this part number covers Torque [Nm]: 4.0; Max Operating Pressure (bar): 8.0; Min. operating pressure [bar]: 3.0; Nominal operating pressure [bar]: 6.0; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Length X [mm]: 80.0; Width Y [mm]: 142.0; Height Z [mm]: 115.0; Moment My max. [Nm]: 18.0; Max. axial force Fz max. [N]: 1800.0. See the Specifications tab on this page for the full technical table.
| Angle of rotation [°] | 90 |
|---|---|
| End position adjustability [°] | 5 |
| Fluid consumption (2x nom. angle) [cm³] | 74.0 |
| Height Z [mm] | 115.0 |
| IP protection class | 40 |
| Length X [mm] | 80.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 1800.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment My max. [Nm] | 18.0 |
| Nominal operating pressure [bar] | 6.0 |
| Repeat accuracy | 0.044 |
| Swiveling time (1x nominal rotation angle) without attached load [s] | 0.16 |
| Torque [Nm] | 4.0 |
| Weight (Kg) | 2.1 |
| Width Y [mm] | 142.0 |
Frequently Asked Questions
How do I get pricing for 313994?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 313994?
313994 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 313994?
Key specifications include Angle of rotation [°]: 90; End position adjustability [°]: 5; Fluid consumption (2x nom. angle) [cm³]: 74.0; Height Z [mm]: 115.0. The full specification table on this page lists every published attribute for this part.
How quickly can 313994 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

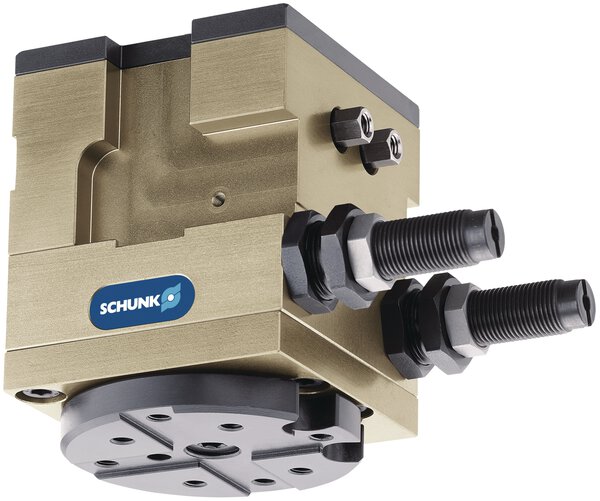

Schunk Schunk RM 110-W180-2
