Schunk PWG-plus 50-AS-KVZ
Schunk 311616 - Angular/radial gripper - Weight (Kg): 0.22; Max Operating Pressure (bar): 6.0; Closing force (with finger lengths of 0 mm) [N]: 693.0.
In our catalog, the 311616 from Schunk is listed under the Angular/radial gripper category. The manufacturer's published data for this part number specifies Weight (Kg): 0.22 and Max Operating Pressure (bar): 6.0.
The specification set recorded for this part number covers Closing force (with finger lengths of 0 mm) [N]: 693.0; Recommended workpiece weight [kg]: 0.77; Cylinder volume per double stroke [cm³]: 14.5; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; Min. air purge pressure [bar]: 0.5; Max. air purge pressure [bar]: 1.0; Closing time [s]: 0.12; Opening time [s]: 0.14; Max. permissible finger length [mm]: 64.0; IP protection class: 30; Min. ambient temperature [°C]: 5.0. The complete technical table is shown in the Specifications tab on this page.
| Closed angle per jaw [°] | 3.0 |
|---|---|
| Closing force (with finger lengths of 0 mm) [N] | 693.0 |
| Closing moment [Nm] | 7.28 |
| Closing moment generated by spring [Nm] | 0.87 |
| Closing time [s] | 0.12 |
| Cylinder volume per double stroke [cm³] | 14.5 |
| Height Z [mm] | 69.8 |
| IP protection class | 30 |
| Length X [mm] | 56.0 |
| Max Operating Pressure (bar) | 6.0 |
| Max. air purge pressure [bar] | 1.0 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 180.0 |
| Max. permissible finger length [mm] | 64.0 |
| Max. permissible inertia per chuck jaw [kgcm²] | 5.3 |
| Min. air purge pressure [bar] | 0.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Moment Mx max. [Nm] | 13.0 |
| Moment Mz max. [Nm] | 15.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening angle per jaw [°] | 15.0 |
| Opening time [s] | 0.14 |
| Power booster version | yes |
| Recommended workpiece weight [kg] | 0.77 |
| Repeat accuracy [mm] | 0.02 |
| Weight (Kg) | 0.22 |
| Width Y [mm] | 30.0 |
Frequently Asked Questions
How do I get pricing for 311616?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 311616?
311616 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 311616?
Key specifications include Closed angle per jaw [°]: 3.0; Closing force (with finger lengths of 0 mm) [N]: 693.0; Closing moment [Nm]: 7.28; Closing moment generated by spring [Nm]: 0.87. The full specification table on this page lists every published attribute for this part.
How quickly can 311616 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

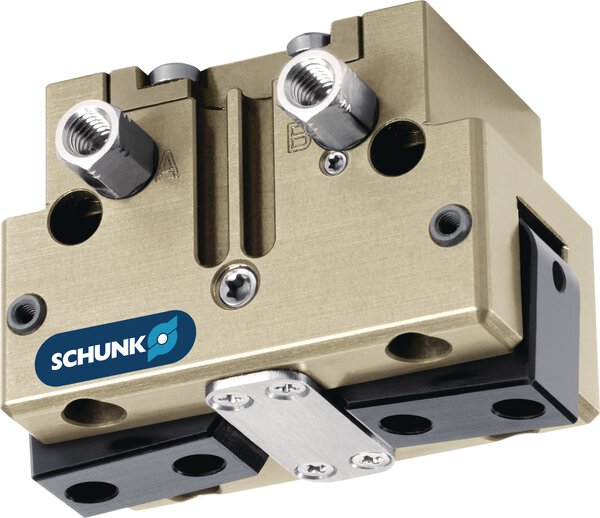

Schunk Schunk PWG-plus 50-KVZ
Schunk Schunk PWG-plus 64
Schunk Schunk PWG-plus 50-AS

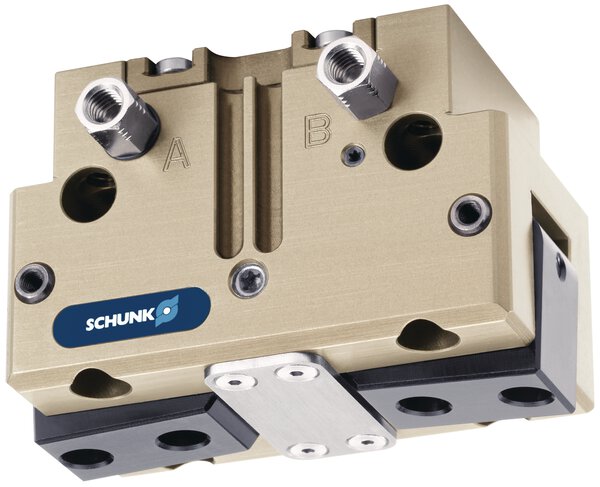

Schunk Schunk PWG-plus 64-AS
