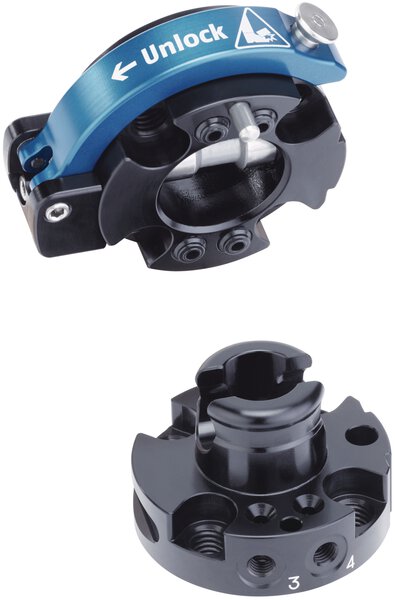

310400 — Schunk SHK-040-000-000
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 310400 - Tool changer - Weight (Kg): 0.14; Diameter D [mm]: 50.0; Min. ambient temperature [°C]: 5.0.
Overview
Part number 310400 from Schunk, listed in Electric Grippers & EOAT. Specifications on file: Connection flange according to ISO 9409-1-40-4-M6; Diameter D [mm] 50.0; Feed-throughs for radial use 2.0; Height Z [mm] 24.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the 310400 from Schunk is listed under the Tool changer category. The manufacturer's published data for this part number specifies Weight (Kg): 0.14 and Diameter D [mm]: 50.0.
The specification set recorded for this part number covers Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.02; Height Z [mm]: 24.0; Moment Mx max. [Nm]: 45.0; Moment My max. [Nm]: 45.0; Moment Mz max. [Nm]: 75.0; Screw connection diagram: S5/S7 über Adapterplatte; Recommended handling weight [kg]: 9.0; Lock sensing: optionally via attachment kit; Max. distance when locking [mm]: 1.0; Number of pneumatic feed-throughs: 4.0. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Connection flange according to | ISO 9409-1-40-4-M6 |
|---|---|
| Diameter D [mm] | 50.0 |
| Feed-throughs for radial use | 2.0 |
| Height Z [mm] | 24.0 |
| Lock sensing | optionally via attachment kit |
| Max. ambient temperature [°C] | 60.0 |
| Max. distance when locking [mm] | 1.0 |
| Max. dynamic moment Mx/My [Nm] | 22.5 |
| Max. dynamic moment Mz [Nm] | 15.0 |
| max. static tensile force Fz [N] | 700.0 |
| Min. ambient temperature [°C] | 5.0 |
| Moment Mx max. [Nm] | 45.0 |
| Moment My max. [Nm] | 45.0 |
| Moment Mz max. [Nm] | 75.0 |
| Number of pneumatic feed-throughs | 4.0 |
| Pitch circle diameter [mm] | 40.0 |
| Repeat accuracy [mm] | 0.02 |
| Screw connection diagram | S5/S7 über Adapterplatte |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 310400 |
| Product category | Electric Grippers & EOAT |
| Published specifications | 18 attributes listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 310400?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 310400?
310400 is made by Schunk and is listed in our Electric Grippers & EOAT category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 310400, and the quote confirms condition and lead time before you order.
Is the 310400 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 310400, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 310400?
No published lifecycle status is on file for 310400. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 310400?
Key specifications include Connection flange according to: ISO 9409-1-40-4-M6; Diameter D [mm]: 50.0; Feed-throughs for radial use: 2.0; Height Z [mm]: 24.0. The full specification table on this page lists every published attribute for this part.
What operating temperature is 310400 rated for?
Per the published specification for 310400: Max. ambient temperature [°C]: 60.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 310400 ship?
Lead time for 310400 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk SHA-040-000-000
Schunk Schunk SHK-050-000-000

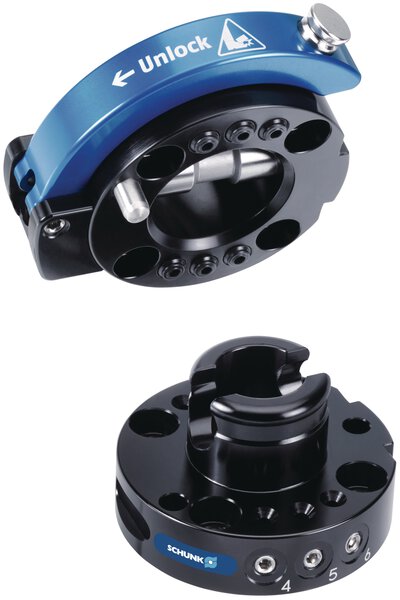

Schunk Schunk SHA-050-000-000
