Schunk ERS 170-560-40-N-D-I
Schunk 310180 - Rotary Actuators - Output signal: Sin/Cos 1Vss; Weight (Kg): 6.3; Repeat accuracy: 0.01.
Schunk 310180 is a Rotary Actuators catalog item from Schunk. The manufacturer's published data for this part number specifies Output signal: Sin/Cos 1Vss and Weight (Kg): 6.3.
The specification set recorded for this part number covers Repeat accuracy: 0.01; Diameter D [mm]: 170.0; Max Operating Pressure (bar): 8.0; IP protection class: 40; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 55.0; Height Z [mm]: 100.0; Moment My max. [Nm]: 150.0; Nominal torque [Nm]: 4.7; Nominal current [A]: 1.6; Max. current [A]: 2.0; Force Fz max. [N]: 5000.0. See the Specifications tab on this page for the full technical table.
| Axial run-out [mm] | 0.05 |
|---|---|
| Diameter D [mm] | 170.0 |
| Encoder system | Encoder (incremental) |
| Force Fx max. [N] | 3750.0 |
| Force Fz max. [N] | 5000.0 |
| Height Z [mm] | 100.0 |
| Intermediate circuit voltage [V] | 560.0 |
| IP protection class | 40 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 55.0 |
| Max. current [A] | 2.0 |
| Max. permissible mass moment of inertia [kgm²] | 0.2 |
| Max. rotational speed [1/min] | 250.0 |
| Max. voltage (DC) [V] | 24.0 |
| Min. ambient temperature [°C] | 5.0 |
| Moment My max. [Nm] | 150.0 |
| Nominal current [A] | 1.6 |
| Nominal speed [1/min] | 250.0 |
| Nominal torque [Nm] | 4.7 |
| Number of electrical feed-throughs | 8.0 |
| Number of pneumatic feed-throughs | 1.0 |
| Output signal | Sin/Cos 1Vss |
| Peak torque [Nm] | 17.0 |
| Repeat accuracy | 0.01 |
| Run-out accuracy [mm] | 0.05 |
| Weight (Kg) | 6.3 |
Frequently Asked Questions
How do I get pricing for 310180?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 310180?
310180 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 310180?
Key specifications include Axial run-out [mm]: 0.05; Diameter D [mm]: 170.0; Encoder system: Encoder (incremental); Force Fx max. [N]: 3750.0. The full specification table on this page lists every published attribute for this part.
How quickly can 310180 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk ERS 170-560-40-B-N-I
Schunk Schunk ERS 170-560-40-N-N-I

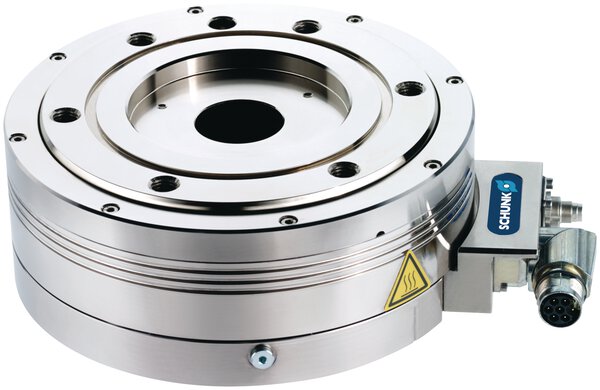

Schunk Schunk ERS 170-560-40-B-D-I
Schunk Schunk ERS 135-560-40-B-N-I

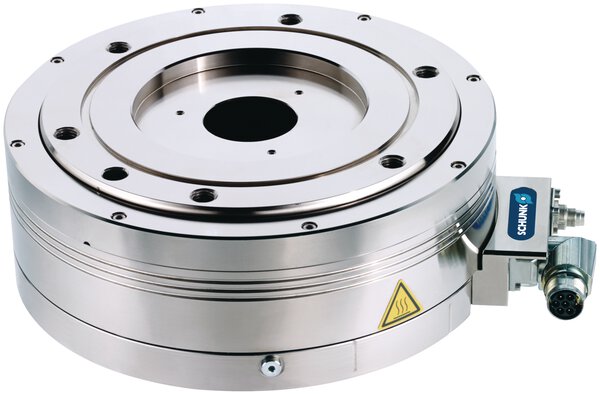

Schunk Schunk ERS 210-560-40-N-N-I
