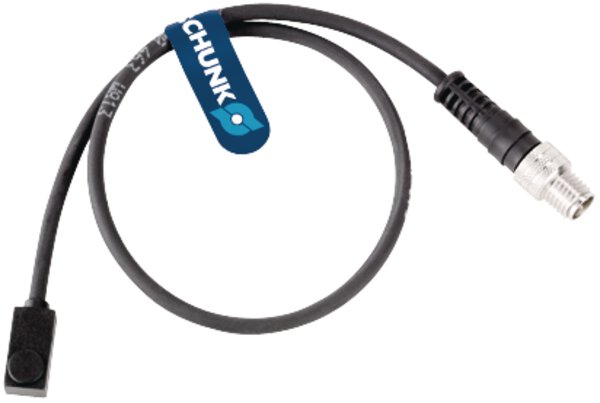

Schunk IN 8-S-M12
| Cable connector/cable end | M12 |
|---|---|
| Cable diameter D [mm] | 3.5 |
| Cable length L [cm] | 30.0 |
| Cable sheath material | PUR |
| Housing material | PA 6, black |
| LED display in sensor | no |
| Max. ambient temperature [°C] | 70.0 |
| Max. operating voltage | 36.0 |
| Max. switching current | 0.2 |
| Max. switching frequency [Hz] | 1000.0 |
| Measuring principle | inductive |
| Min. ambient temperature [°C] | -25.0 |
| Min. bending radius (dynamic) [mm] | 35.0 |
| Min. bending radius (static) [mm] | 17.5 |
| Min. operating voltage | 10.0 |
| Nominal Voltage | 24.0 |
| Number of switching points | 1 |
| Protected against polarity reversal | yes |
| Protection class | II |
| Protection class IP (sensor, plugged) | 67 |
| Short circuit protection | yes |
| Switching distance [mm] | 1.5 |
| Switching function | Closer |
| Switching hysterisis from the nominal switching distance | < 10% |
| Type of switching | PNP |
| Type of voltage | DC |
| Voltage drop [V] | 1.5 |
| Weight (Kg) | 0.019 |
Frequently Asked Questions
How do I get pricing for 301581?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 301581?
301581 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 301581?
Key specifications include Cable connector/cable end: M12; Cable diameter D [mm]: 3.5; Cable length L [cm]: 30.0; Cable sheath material: PUR. The full specification table on this page lists every published attribute for this part.
How quickly can 301581 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

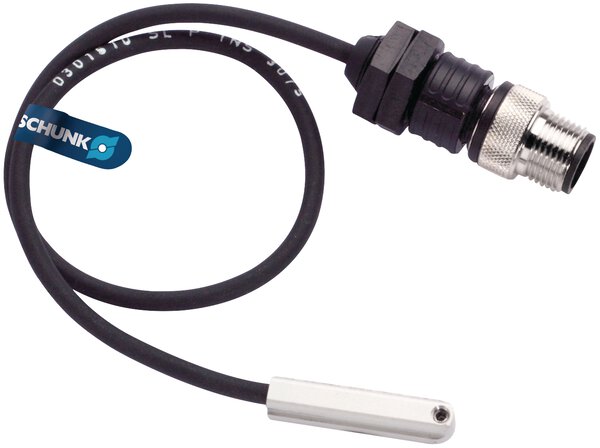

Schunk Schunk MMS 30-S-M12-PNP

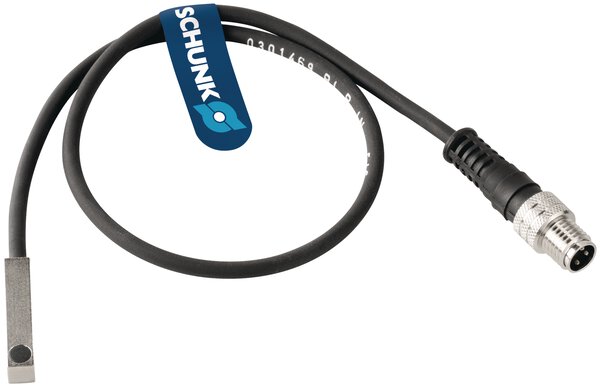

Schunk Schunk IN 5-S-M12

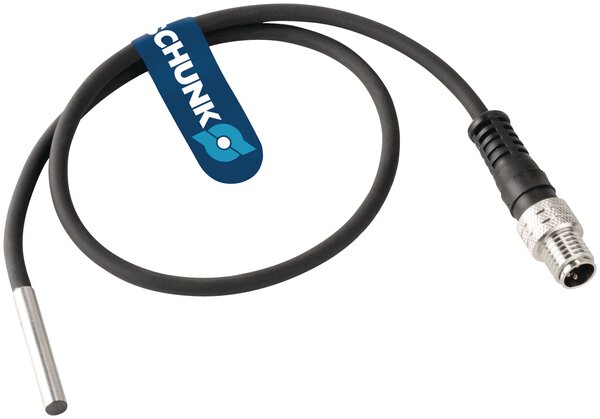

Schunk Schunk IN 40-O-M8
