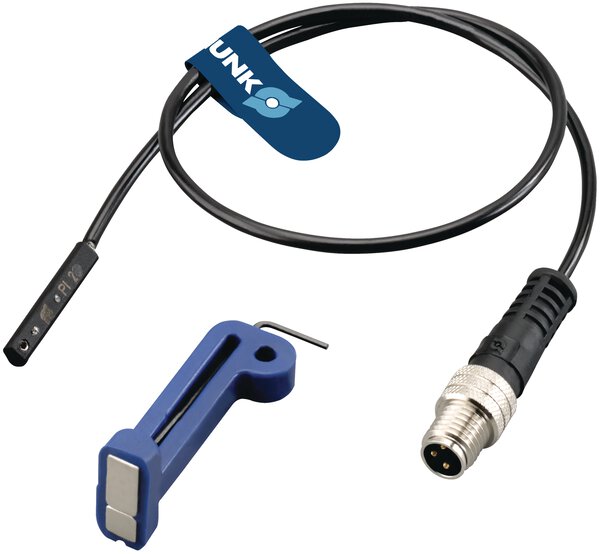

301183 — Schunk MMSK 22-PI2-S-NPN
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 301183 - Sensors - Housing material: PA; Protection class: III; Nominal Voltage: 24.0.
Overview
Part number 301183 from Schunk, listed in Sensors & Encoders. Specifications on file: Cable connector/cable end open wire strands; Cable design (wire cross section/number of wires) 4x 0,05mm2; Cable diameter D [mm] 2.55; Cable length L [cm] 200.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the 301183 from Schunk is listed under the Sensors category. The manufacturer's published data for this part number specifies Housing material: PA and Protection class: III.
Published specifications for this part include Nominal Voltage: 24.0; Measuring principle: magnetic; Weight (Kg): 0.04; Min. ambient temperature [°C]: -20.0; Max. ambient temperature [°C]: 80.0; Cable connector/cable end: open wire strands; Max. switching current: 25.0; Switching function: Closer; Short circuit protection: yes; Teach function: yes; Type of voltage: DC; Type of switching: NPN. See the Specifications tab on this page for the full technical table.
Specifications
| Cable connector/cable end | open wire strands |
|---|---|
| Cable design (wire cross section/number of wires) | 4x 0,05mm2 |
| Cable diameter D [mm] | 2.55 |
| Cable length L [cm] | 200.0 |
| Cable sheath material | PUR |
| Drilling emulsion resistance * | yes |
| Housing material | PA |
| LED display in sensor | yes |
| Max. ambient temperature [°C] | 80.0 |
| Max. operating voltage | 30.0 |
| Max. switching current | 25.0 |
| Max. switching frequency [Hz] | 1000.0 |
| Measuring principle | magnetic |
| Min. ambient temperature [°C] | -20.0 |
| Min. bending radius (dynamic) [mm] | 25.5 |
| Min. bending radius (static) [mm] | 12.75 |
| Min. operating voltage | 10.0 |
| Nominal Voltage | 24.0 |
| Number of switching points | 2 |
| Protected against polarity reversal | yes |
| Protection class | III |
| Protection class IP (sensor, plugged) | 67 |
| Short circuit protection | yes |
| Switching function | Closer |
| Teach function | yes |
| Type of switching | NPN |
| Type of voltage | DC |
| typical switching time [s] | 0.001 |
| Voltage drop [V] | 2.0 |
| Weight (Kg) | 0.04 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 301183 |
| Product category | Sensors & Encoders |
| Published specifications | 30 attributes listed |
| Related part numbers | 13 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 301183?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 301183?
301183 is made by Schunk and is listed in our Sensors & Encoders category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 301183, and the quote confirms condition and lead time before you order.
Is the 301183 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 301183, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 301183?
No published lifecycle status is on file for 301183. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 301183?
Key specifications include Cable connector/cable end: open wire strands; Cable design (wire cross section/number of wires): 4x 0,05mm2; Cable diameter D [mm]: 2.55; Cable length L [cm]: 200.0. The full specification table on this page lists every published attribute for this part.
What voltage does 301183 use?
Per the published specification for 301183: Max. operating voltage: 30.0; Min. operating voltage: 10.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What operating temperature is 301183 rated for?
Per the published specification for 301183: Max. ambient temperature [°C]: 80.0; Min. ambient temperature [°C]: -20.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is 301183 made of?
Per the published specification for 301183: Housing material: PA. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 301183 ship?
Lead time for 301183 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk MMSK 22-PI2-S-PNP
Schunk Schunk MMS 22-PI2-S-M8-PNP-SA
Schunk Schunk MMS 22-PI2-S-M8-NPN
Schunk Schunk MMSK 22-PI2-S-PNP-SA
Schunk Schunk MMS 22-PI2-S-M8-PNP

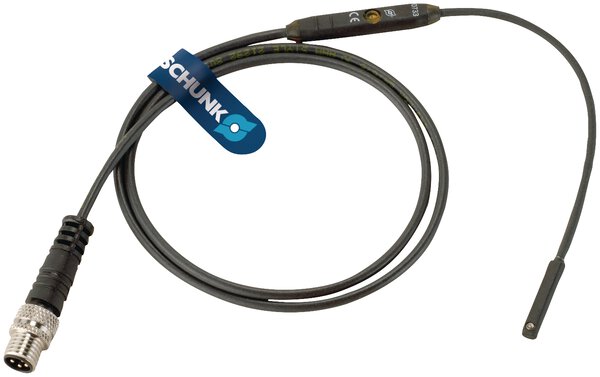

Schunk Schunk MMS-P 22-S-M8-PNP
