263643 — Schunk MES HSK-A 63 Ø32x60
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 263643 - Toolholder quickfinder - Series: Face mill arbors; Technology: Face mill arbors; Weight (Kg): 1.85.
Overview
Part number 263643 from Schunk, listed in Tools & Workholding. Specifications on file: Clamping diameter D1 32 mm; Coolant-proof yes; D2 [mm] 78.0; L11 [mm] 24.0. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 263643 is part of the Toolholder quickfinder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Face mill arbors and Technology: Face mill arbors.
Key manufacturer data on file for this item includes Weight (Kg): 1.85; D2 [mm]: 78.0; Toolholder interface: HSK-A 63; Toolholder standard: DIN ISO 12164-1; Clamping diameter D1: 32 mm; Projecting length L1 [mm]/[inch]: 60 mm / 2.4"; L4 [mm]: 34.0; Coolant-proof: yes; Thread tightening bolt G: M16; Standard length: yes; L11 [mm]: 24.0. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Clamping diameter D1 | 32 mm |
|---|---|
| Coolant-proof | yes |
| D2 [mm] | 78.0 |
| L11 [mm] | 24.0 |
| L4 [mm] | 34.0 |
| Projecting length L1 [mm]/[inch] | 60 mm / 2.4" |
| Series | Face mill arbors |
| Standard length | yes |
| Technology | Face mill arbors |
| Thread tightening bolt G | M16 |
| Toolholder interface | HSK-A 63 |
| Toolholder standard | DIN ISO 12164-1 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 263643 |
| Product category | Tools & Workholding |
| Published specifications | 12 attributes listed |
| Related part numbers | 9 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 263643?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 263643?
263643 is made by Schunk and is listed in our Tools & Workholding category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 263643, and the quote confirms condition and lead time before you order.
Is the 263643 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 263643, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 263643?
No published lifecycle status is on file for 263643. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 263643?
Key specifications include Clamping diameter D1: 32 mm; Coolant-proof: yes; D2 [mm]: 78.0; L11 [mm]: 24.0. The full specification table on this page lists every published attribute for this part.
What thread or connection does 263643 use?
Per the published specification for 263643: Thread tightening bolt G: M16. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 263643 ship?
Lead time for 263643 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products

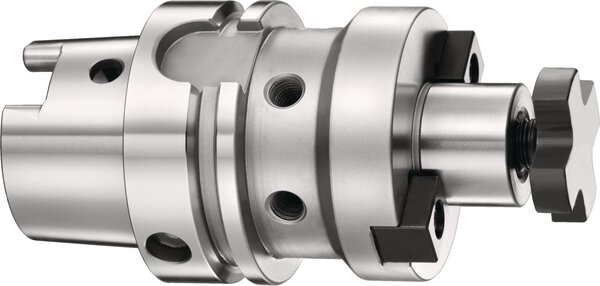

Schunk Schunk MES HSK-A 63 Ø27x60
Schunk Schunk MES HSK-A 63 Ø40x60
Schunk Schunk MES HSK-A 63 Ø22x50
Schunk Schunk MES HSK-A 63 Ø16x50
Schunk Schunk KOM HSK-A 63 Ø40x70

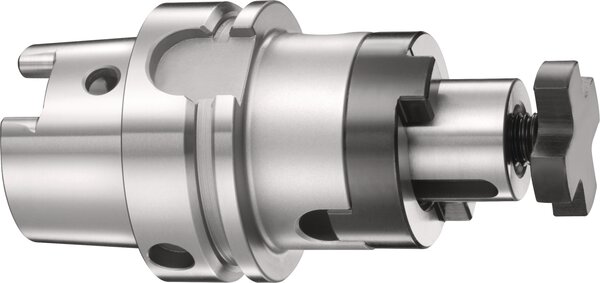

Schunk Schunk KOM HSK-A 63 Ø32x60
