Schunk TRIBOS-R HSK-A 63 Ø16x90
Schunk 233335 - Toolholder quickfinder - Series: TRIBOS-R; Technology: Polygonal toolholders; g: M10x1.
The Schunk 233335 is part of the Toolholder quickfinder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: TRIBOS-R and Technology: Polygonal toolholders.
Published specifications for this part include g: M10x1; Weight (Kg): 1.25; Min torque (Nm): 120.0; D2 [mm]: 48.0; D3 [mm]: 50.0; Toolholder interface: HSK-A 63; Toolholder standard: DIN ISO 12164-1; Clamping diameter D1: 16 mm; Projecting length L1 [mm]/[inch]: 90 mm / 3.5"; L2 [mm]: 48.0; L3 [mm]: 10.0; L4 [mm]: 45.0. The complete technical table is shown in the Specifications tab on this page.
| Clamping diameter D1 | 16 mm |
|---|---|
| D2 [mm] | 48.0 |
| D3 [mm] | 50.0 |
| g | M10x1 |
| L2 [mm] | 48.0 |
| L3 [mm] | 10.0 |
| L4 [mm] | 45.0 |
| L5 [mm] | 64.0 |
| Min torque (Nm) | 120.0 |
| Projecting length L1 [mm]/[inch] | 90 mm / 3.5" |
| Series | TRIBOS-R |
| Standard length | yes |
| Technology | Polygonal toolholders |
| Toolholder interface | HSK-A 63 |
| Toolholder standard | DIN ISO 12164-1 |
| Weight (Kg) | 1.25 |
Frequently Asked Questions
How do I get pricing for 233335?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 233335?
233335 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 233335?
Key specifications include Clamping diameter D1: 16 mm; D2 [mm]: 48.0; D3 [mm]: 50.0; g: M10x1. The full specification table on this page lists every published attribute for this part.
How quickly can 233335 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk TRIBOS-R HSK-A 63 Ø12x85

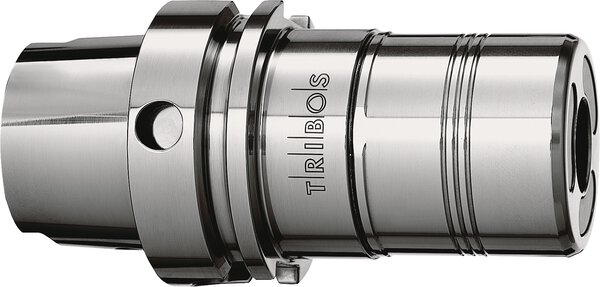

Schunk Schunk TRIBOS-R HSK-A 63 Ø20x90
