23004343 — Schunk MTTH HSK-A 63 MK4x160
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 23004343 - Toolholder quickfinder - Series: Morse taper mountings with locking thread; Technology: Morse taper mountings with locking thread; Weight (Kg): 2.06.
Overview
Part number 23004343 from Schunk, listed in Tools & Workholding. Specifications on file: Coolant-proof yes; D2 [mm] 48.0; L4 [mm] 134.0; MK size MK 4. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 23004343 is part of the Toolholder quickfinder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Morse taper mountings with locking thread and Technology: Morse taper mountings with locking thread.
Published specifications for this part include Weight (Kg): 2.06; D2 [mm]: 48.0; Toolholder interface: HSK-A 63; Toolholder standard: DIN ISO 12164-1; Projecting length L1 [mm]/[inch]: 160 mm / 6.3"; L4 [mm]: 134.0; Coolant-proof: yes; Thread tightening bolt G: M16; Standard length: yes; MK size: MK 4. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Coolant-proof | yes |
|---|---|
| D2 [mm] | 48.0 |
| L4 [mm] | 134.0 |
| MK size | MK 4 |
| Projecting length L1 [mm]/[inch] | 160 mm / 6.3" |
| Series | Morse taper mountings with locking thread |
| Standard length | yes |
| Technology | Morse taper mountings with locking thread |
| Thread tightening bolt G | M16 |
| Toolholder interface | HSK-A 63 |
| Toolholder standard | DIN ISO 12164-1 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 23004343 |
| Product category | Tools & Workholding |
| Published specifications | 11 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 23004343?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 23004343?
23004343 is made by Schunk and is listed in our Tools & Workholding category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 23004343, and the quote confirms condition and lead time before you order.
Is the 23004343 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 23004343, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 23004343?
No published lifecycle status is on file for 23004343. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 23004343?
Key specifications include Coolant-proof: yes; D2 [mm]: 48.0; L4 [mm]: 134.0; MK size: MK 4. The full specification table on this page lists every published attribute for this part.
What thread or connection does 23004343 use?
Per the published specification for 23004343: Thread tightening bolt G: M16. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 23004343 ship?
Lead time for 23004343 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Schunk part numbers in this family:
Related Products
Schunk Schunk MTTH HSK-A 63 MK3x140

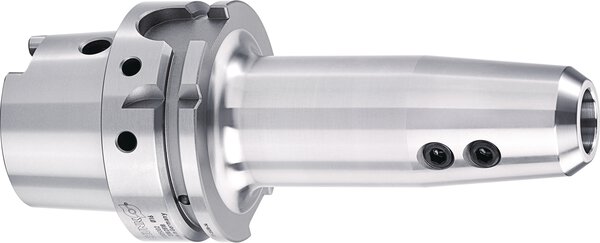

Schunk Schunk WEL S HSK-A 63 Ø12x100
Schunk Schunk MTTH HSK-A 63 MK2x120

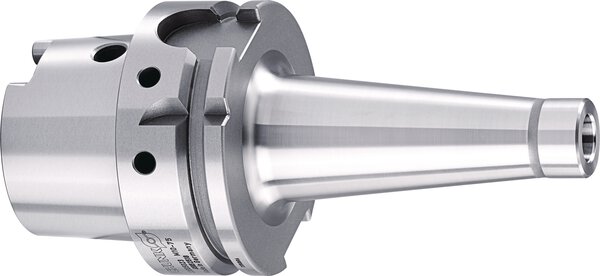

Schunk Schunk AMC CON HSK-A 63 M8x25 L1=51
