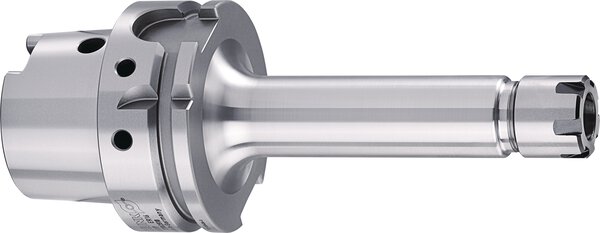

Schunk ER 11 Mini HSK-A 63x160
Schunk 23002986 - Toolholder quickfinder - Series: ER collet chuck Mini; Technology: ER collet chuck Mini; g: M8x1.
In our catalog, the 23002986 from Schunk is listed under the Toolholder quickfinder category. The manufacturer's published data for this part number specifies Series: ER collet chuck Mini and Technology: ER collet chuck Mini.
Key manufacturer data on file for this item includes g: M8x1; Weight (Kg): 0.855; D2 [mm]: 16.0; D3 [mm]: 16.0; Toolholder interface: HSK-A 63; Toolholder standard: DIN ISO 12164-1; Projecting length L1 [mm]/[inch]: 160 mm / 6.3"; L4 [mm]: 12.0; L5 [mm]: 134.0; Coolant-proof: yes; ER clamping size: ER 11; Min. clamping diameter D1 [mm]: 1.0. See the Specifications tab on this page for the full technical table.
| Coolant-proof | yes |
|---|---|
| D2 [mm] | 16.0 |
| D3 [mm] | 16.0 |
| ER clamping size | ER 11 |
| g | M8x1 |
| L4 [mm] | 12.0 |
| L5 [mm] | 134.0 |
| Max. clamping diameter D1 [mm] | 7.0 |
| Min. clamping diameter D1 [mm] | 1.0 |
| Projecting length L1 [mm] | 160.0 |
| Projecting length L1 [mm]/[inch] | 160 mm / 6.3" |
| Series | ER collet chuck Mini |
| Technology | ER collet chuck Mini |
| Toolholder interface | HSK-A 63 |
| Toolholder standard | DIN ISO 12164-1 |
| Weight (Kg) | 0.855 |
Frequently Asked Questions
How do I get pricing for 23002986?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 23002986?
23002986 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 23002986?
Key specifications include Coolant-proof: yes; D2 [mm]: 16.0; D3 [mm]: 16.0; ER clamping size: ER 11. The full specification table on this page lists every published attribute for this part.
How quickly can 23002986 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk ER 11 Mini HSK-A 63x100
Schunk Schunk ER 11 Mini JIS-BT 40x100

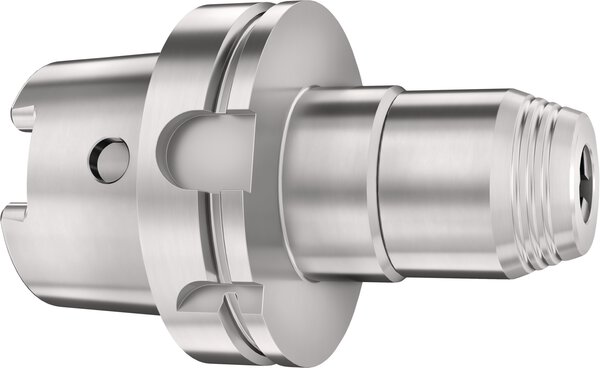

Schunk Schunk CNC SDC HSK-A 100 Ø1-16x104

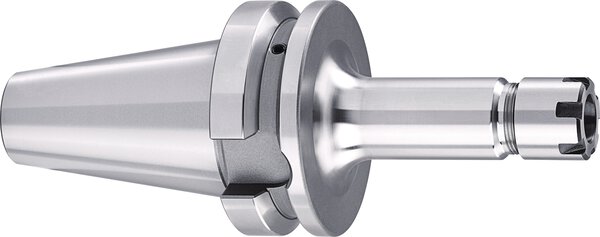

Schunk Schunk ER 11 Mini JIS-BT 40x160

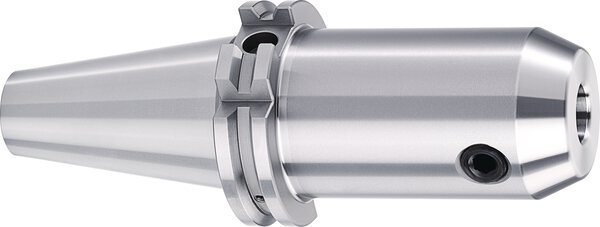

Schunk Schunk WEL S SK 40 Ø12x100
