Schunk SINO-R HSK-A 100 Ø20x88
Schunk 209567 - Toolholder quickfinder - Series: SINO-R; Technology: Expansion toolholder; g: M8x1.
The Schunk 209567 is part of the Toolholder quickfinder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: SINO-R and Technology: Expansion toolholder.
Key manufacturer data on file for this item includes g: M8x1; Weight (Kg): 2.75; Min torque (Nm): 450.0; D2 [mm]: 48.5; D3 [mm]: 49.72; Toolholder interface: HSK-A 100; Toolholder standard: DIN ISO 12164-1; Clamping diameter D1: 20 mm; D6 [mm]: 41.7; Projecting length L1 [mm]/[inch]: 88 mm / 3.5"; L2 [mm]: 51.0; L3 [mm]: 10.0. See the Specifications tab on this page for the full technical table.
| Clamping diameter D1 | 20 mm |
|---|---|
| Coolant-proof | yes |
| D2 [mm] | 48.5 |
| D3 [mm] | 49.72 |
| D6 [mm] | 41.7 |
| g | M8x1 |
| L2 [mm] | 51.0 |
| L3 [mm] | 10.0 |
| L4 [mm] | 42.0 |
| L5 [mm] | 59.0 |
| Min torque (Nm) | 450.0 |
| Projecting length L1 [mm]/[inch] | 88 mm / 3.5" |
| Series | SINO-R |
| Standard length | yes |
| Technology | Expansion toolholder |
| Toolholder interface | HSK-A 100 |
| Toolholder standard | DIN ISO 12164-1 |
| Weight (Kg) | 2.75 |
Frequently Asked Questions
How do I get pricing for 209567?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 209567?
209567 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 209567?
Key specifications include Clamping diameter D1: 20 mm; Coolant-proof: yes; D2 [mm]: 48.5; D3 [mm]: 49.72. The full specification table on this page lists every published attribute for this part.
How quickly can 209567 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SINO-R HSK-A 63 Ø1/2"x80
Schunk Schunk SINO-R HSK-A 100 Ø32x100
Schunk Schunk SINO-R HSK-A 63 Ø3/4"x85

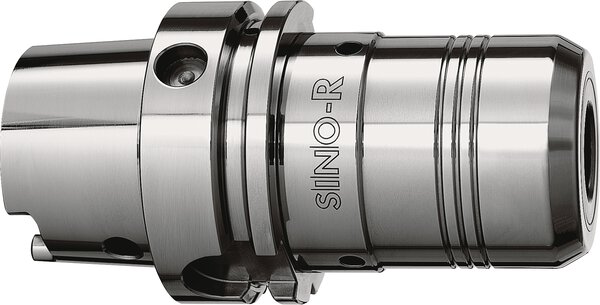

Schunk Schunk SINO-R HSK-A 100 Ø25x95
