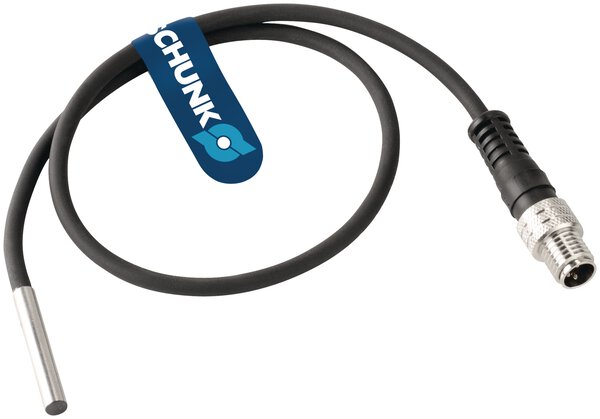

Schunk IN 40L-S-M8-SW
Schunk 1618937 - Sensors - Housing material: stainless steel; Protection class: III; Nominal Voltage: 24.0.
This listing covers the Schunk 1618937, a part number in the Sensors category. The manufacturer's published data for this part number specifies Housing material: stainless steel and Protection class: III.
Key manufacturer data on file for this item includes Nominal Voltage: 24.0; Measuring principle: inductive; Weight (Kg): 0.03; Min. ambient temperature [°C]: -25.0; Max. ambient temperature [°C]: 70.0; Cable connector/cable end: M8; Max. switching current: 0.1; Switching function: Closer; Short circuit protection: yes; Type of voltage: DC; Type of switching: PNP; Number of switching points: 1. The complete technical table is shown in the Specifications tab on this page.
| Cable connector/cable end | M8 |
|---|---|
| Cable design (wire cross section/number of wires) | 3x 0.14mm2 |
| Cable diameter D [mm] | 3.0 |
| Cable length L [cm] | 30.0 |
| Cable sheath material | PUR |
| Housing material | stainless steel |
| LED display in sensor | yes |
| Max. ambient temperature [°C] | 70.0 |
| Max. operating voltage | 30.0 |
| Max. switching current | 0.1 |
| Max. switching frequency [Hz] | 3000.0 |
| Measuring principle | inductive |
| Min. ambient temperature [°C] | -25.0 |
| Min. bending radius (dynamic) [mm] | 30.0 |
| Min. bending radius (static) [mm] | 15.0 |
| Min. operating voltage | 10.0 |
| Nominal Voltage | 24.0 |
| Number of switching points | 1 |
| Protected against polarity reversal | yes |
| Protection class | III |
| Protection class IP (sensor, plugged) | 67 |
| Short circuit protection | yes |
| Switching distance [mm] | 1.0 |
| Switching function | Closer |
| Switching hysterisis from the nominal switching distance | < 15% |
| Type of switching | PNP |
| Type of voltage | DC |
| Voltage drop [V] | 1.8 |
| Weight (Kg) | 0.03 |
Frequently Asked Questions
How do I get pricing for 1618937?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1618937?
1618937 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1618937?
Key specifications include Cable connector/cable end: M8; Cable design (wire cross section/number of wires): 3x 0.14mm2; Cable diameter D [mm]: 3.0; Cable length L [cm]: 30.0. The full specification table on this page lists every published attribute for this part.
How quickly can 1618937 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

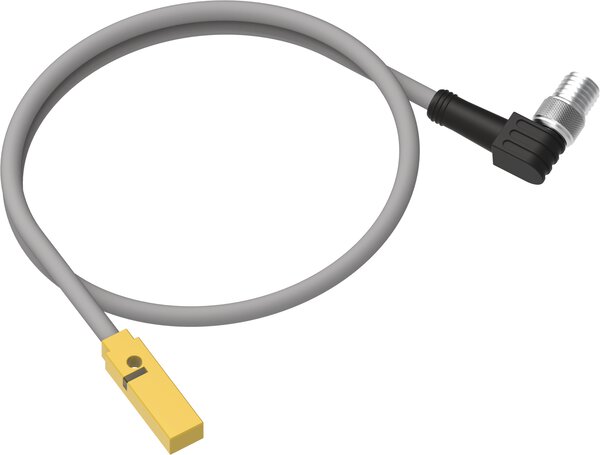

Schunk Schunk IN 8-SL-M8-SW
Schunk Schunk IN 40L-S-M8-SW-38

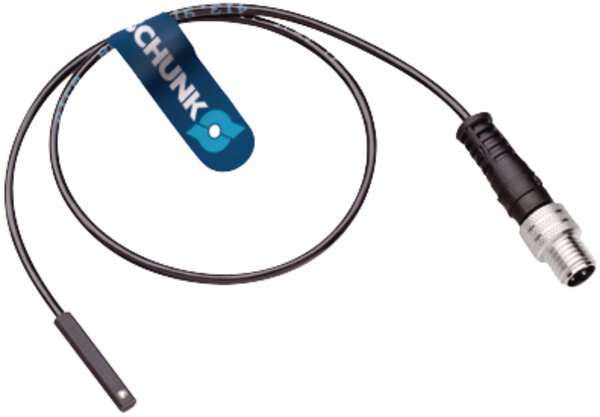

Schunk Schunk MMS 22-S-M8-PNP
