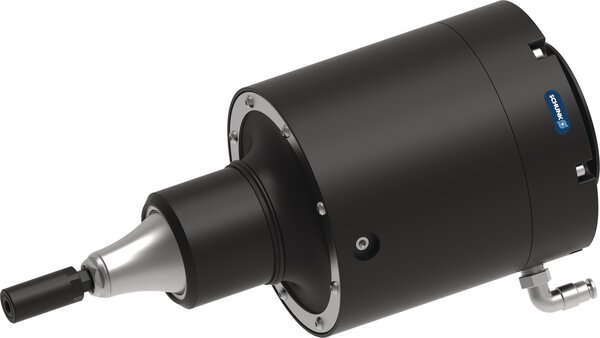

1427058 — Schunk CRT 12-5
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 1427058 - CRT - Weight (Kg): 3.08; Diameter D [mm]: 109.2; Min. ambient temperature [°C]: 5.0.
Overview
Part number 1427058 from Schunk. Specifications on file: Air connection spindle 10 mm; Axis fixation integrated; Compensation air connection 4 mm; Diameter D [mm] 109.2. KKM Solutions quotes this part with pricing and availability confirmed per order.
Schunk 1427058 is a CRT catalog item from Schunk. The manufacturer's published data for this part number specifies Weight (Kg): 3.08 and Diameter D [mm]: 109.2.
The specification set recorded for this part number covers Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 35.0; Height Z [mm]: 251.3; Noise emission [dB(A)]: 85; Force Fx max. [N]: 62.0; Force Fy max. [N]: 62.0; Max. compensation angle X [°]: ± 1.8; Max. compensation angle Y [°]: ± 1.8; Tool holder: File holder Ø 5 mm; Axis fixation: integrated; Min. radial compensation force [N]: 18.0; Max. radial compensation force [N]: 62.0. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Air connection spindle | 10 mm |
|---|---|
| Axis fixation | integrated |
| Compensation air connection | 4 mm |
| Diameter D [mm] | 109.2 |
| File stroke [mm] | 5.0 |
| Force Fx max. [N] | 62.0 |
| Force Fy max. [N] | 62.0 |
| Height Z [mm] | 251.3 |
| Max. ambient temperature [°C] | 35.0 |
| Max. compensation angle X [°] | ± 1.8 |
| Max. compensation angle Y [°] | ± 1.8 |
| Max. compensation pressure [bar] | 4.1 |
| Max. compensation X [mm] | ± 8 |
| Max. compensation Y [mm] | ± 8 |
| Max. radial compensation force [N] | 62.0 |
| maximum air consumption [l/s] | 2.8 |
| Min. ambient temperature [°C] | 5.0 |
| Min. compensating pressure [bar] | 1.0 |
| Min. radial compensation force [N] | 18.0 |
| Noise emission [dB(A)] | 85 |
| Number of idle running strokes [1/min] | 12000.0 |
| Operating pressure [bar] | 6.2 |
| Recommended compensation path [mm] | ± 4 |
| Tool holder | File holder Ø 5 mm |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 1427058 |
| Published specifications | 24 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1427058?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1427058?
1427058 is made by Schunk. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 1427058, and the quote confirms condition and lead time before you order.
Is the 1427058 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 1427058, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 1427058?
No published lifecycle status is on file for 1427058. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1427058?
Key specifications include Air connection spindle: 10 mm; Axis fixation: integrated; Compensation air connection: 4 mm; Diameter D [mm]: 109.2. The full specification table on this page lists every published attribute for this part.
What operating temperature is 1427058 rated for?
Per the published specification for 1427058: Max. ambient temperature [°C]: 35.0; Min. ambient temperature [°C]: 5.0. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 1427058 ship?
Lead time for 1427058 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
