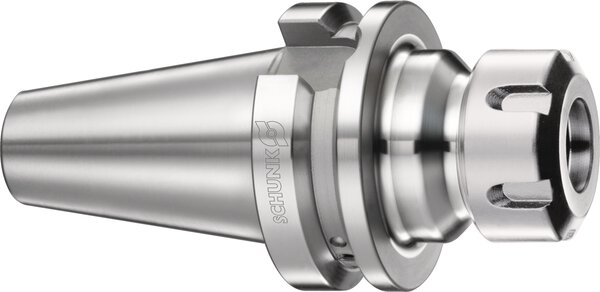

1415580 — Schunk ER 16 BT-DC 30x60
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 1415580 - Toolholder quickfinder - Series: ER collet chucks; Technology: ER collet chucks; g: M8x1.
Overview
Part number 1415580 from Schunk, listed in Tools & Workholding. Specifications on file: Coolant-proof yes; D2 [mm] 28.0; D3 [mm] 28.0; ER clamping size ER 16. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 1415580 is part of the Toolholder quickfinder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: ER collet chucks and Technology: ER collet chucks.
The specification set recorded for this part number covers g: M8x1; Weight (Kg): 0.41; D2 [mm]: 28.0; D3 [mm]: 28.0; Toolholder interface: BT-DC 30; Projecting length L1 [mm]/[inch]: 60 mm / 2.4"; L4 [mm]: 17.5; L5 [mm]: 38.0; Coolant-proof: yes; ER clamping size: ER 16; Min. clamping diameter D1 [mm]: 1.0; Max. clamping diameter D1 [mm]: 7.0. See the Specifications tab on this page for the full technical table.
Specifications
| Coolant-proof | yes |
|---|---|
| D2 [mm] | 28.0 |
| D3 [mm] | 28.0 |
| ER clamping size | ER 16 |
| g | M8x1 |
| L4 [mm] | 17.5 |
| L5 [mm] | 38.0 |
| Max. clamping diameter D1 [mm] | 7.0 |
| Min. clamping diameter D1 [mm] | 1.0 |
| Projecting length L1 [mm] | 60.0 |
| Projecting length L1 [mm]/[inch] | 60 mm / 2.4" |
| Series | ER collet chucks |
| Standard length | yes |
| Technology | ER collet chucks |
| Toolholder interface | BT-DC 30 |
| Weight (Kg) | 0.41 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 1415580 |
| Product category | Tools & Workholding |
| Published specifications | 16 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1415580?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1415580?
1415580 is made by Schunk and is listed in our Tools & Workholding category. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 1415580, and the quote confirms condition and lead time before you order.
Is the 1415580 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 1415580, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 1415580?
No published lifecycle status is on file for 1415580. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1415580?
Key specifications include Coolant-proof: yes; D2 [mm]: 28.0; D3 [mm]: 28.0; ER clamping size: ER 16. The full specification table on this page lists every published attribute for this part.
How much does 1415580 weigh?
Per the published specification for 1415580: Weight (Kg): 0.41. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 1415580 ship?
Lead time for 1415580 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Related Products

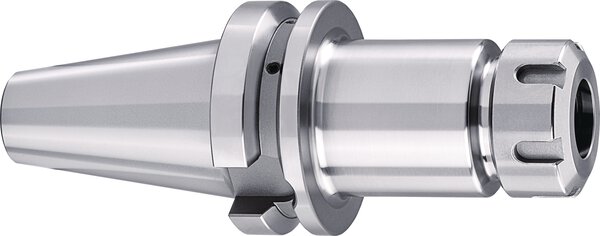

Schunk Schunk ER 16 BT-DC 30x100

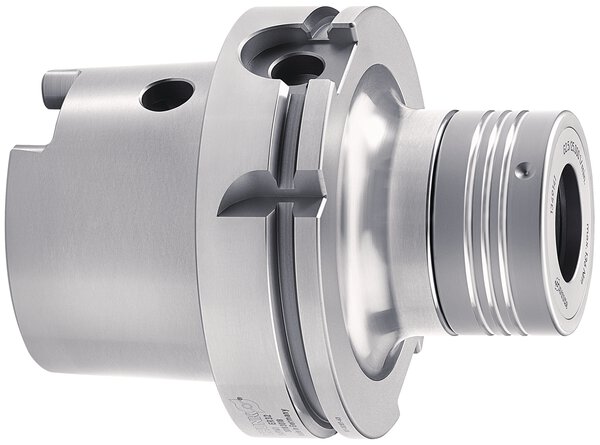

Schunk Schunk ER 16 P HSK-A 100x75

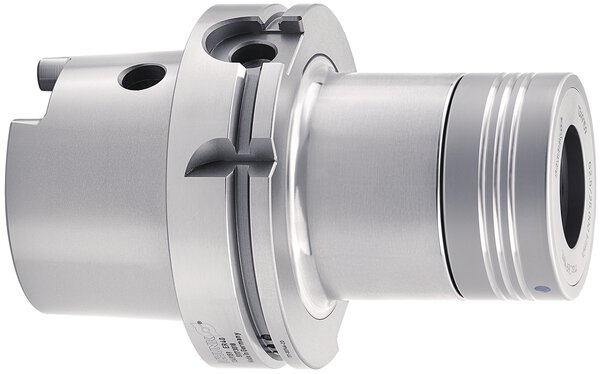

Schunk Schunk ER 16 P HSK-A 100x100
Schunk Schunk CELSIO HSK-A 40 Ø3x60

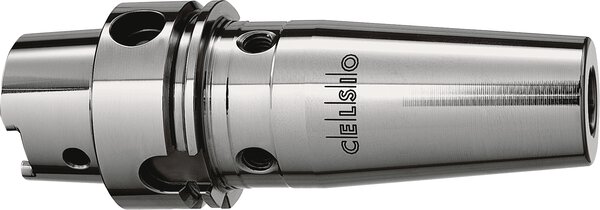

Schunk Schunk CELSIO HSK-A 40 Ø4x60
