Schunk FTRS485-AXIA80-DUAL SI-75-4/SI-150-8
Schunk 1392581 - Force/torque sensors - Housing material: Aluminum; Weight (Kg): 0.28; Diameter D [mm]: 82.0.
In our catalog, the 1392581 from Schunk is listed under the Force/torque sensors category. The manufacturer's published data for this part number specifies Housing material: Aluminum and Weight (Kg): 0.28.
The specification set recorded for this part number covers Diameter D [mm]: 82.0; IP protection class: 64; Height Z [mm]: 25.4; evaluation via: serial interface (RS-485); Calibration 1: SI-75-4; Measuring range Fx, Fy [N]: ± 150; Measuring range Fz [N]: ± 470; Measuring range Mx, My [Nm]: ± 8; Measuring range Mz [Nm]: ± 8; Calibration 2: SI-150-8; Overload Fx, Fy [N]: ± 2350; Overload Fz [N]: ± 7500. The complete technical table is shown in the Specifications tab on this page.
| Calibration 1 | SI-75-4 |
|---|---|
| Calibration 2 | SI-150-8 |
| Diameter D [mm] | 82.0 |
| evaluation via | serial interface (RS-485) |
| Height Z [mm] | 25.4 |
| Housing material | Aluminum |
| IP protection class | 64 |
| Measuring range Fx, Fy [N] | ± 150 |
| Measuring range Fz [N] | ± 470 |
| Measuring range Mx, My [Nm] | ± 8 |
| Measuring range Mz [Nm] | ± 8 |
| Overload Fx, Fy [N] | ± 2350 |
| Overload Fz [N] | ± 7500 |
| Overload Mx, My [Nm] | ± 40 |
| Overload Mz [Nm] | ± 40 |
| Resolution Fx, Fy [N] | 0.04 |
| Resolution Fz [N] | 0.04 |
| Resolution Mx, My [Nm] | 0.002 |
| Resolution Mz [Nm] | 0.002 |
| Resonant Frequency Fx, Fy, Mz [Hz] | 1500.0 |
| Resonant Frequency Fz, Mx, My [Hz] | 1500.0 |
| Weight (Kg) | 0.28 |
Frequently Asked Questions
How do I get pricing for 1392581?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1392581?
1392581 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1392581?
Key specifications include Calibration 1: SI-75-4; Calibration 2: SI-150-8; Diameter D [mm]: 82.0; evaluation via: serial interface (RS-485). The full specification table on this page lists every published attribute for this part.
How quickly can 1392581 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk FTRS485-AXIA80-DUAL SI-200-8/SI-500-20
Schunk Schunk FTE-AXIA80-DUAL SI-480-20/SI-1200-50

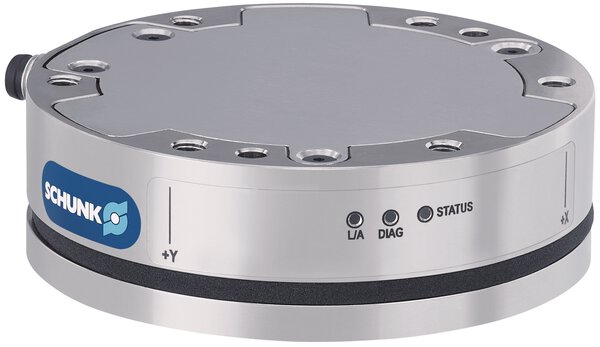

Schunk Schunk FTRS485-AXIA80-DUAL SI-480-20/SI-1200-50
