Schunk OPUS-H3 170-77
Schunk 1360387 - Clamping cylinders - Weight (Kg): 23.0; Max. rotational speed [1/min]: 5000.0; Moment of inertia [kgm²]: 0.09.

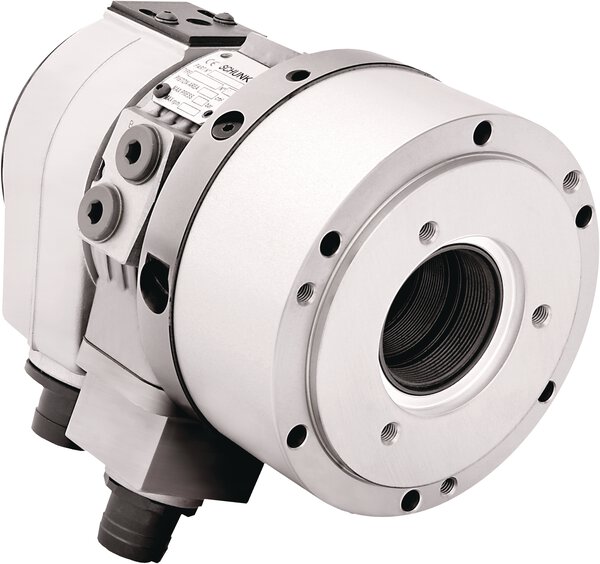

This listing covers the Schunk 1360387, a part number in the Clamping cylinders category. The manufacturer's published data for this part number specifies Weight (Kg): 23.0 and Max. rotational speed [1/min]: 5000.0.
Published specifications for this part include Moment of inertia [kgm²]: 0.09; Piston surface [cm²]: 170.0; Piston stroke [mm]: 29.0; Through-hole [mm]: 77.0; Max. pressure [bar]: 45.0; Pull force at 45 bar [kN]: 76.0; Oil leakage rate [l/min]: 4.5; Power consumption [kW]: 1.8. The complete technical table is shown in the Specifications tab on this page.
| Max. pressure [bar] | 45.0 |
|---|---|
| Max. rotational speed [1/min] | 5000.0 |
| Moment of inertia [kgm²] | 0.09 |
| Oil leakage rate [l/min] | 4.5 |
| Piston stroke [mm] | 29.0 |
| Piston surface [cm²] | 170.0 |
| Power consumption [kW] | 1.8 |
| Pull force at 45 bar [kN] | 76.0 |
| Through-hole [mm] | 77.0 |
| Weight (Kg) | 23.0 |
