Schunk RM 12-W
| Angle of rotation [°] | 190 |
|---|---|
| End position adjustability [°] | 90 |
| Fluid consumption (2x nom. angle) [cm³] | 4.8 |
| Height Z [mm] | 35.0 |
| IP protection class | 40 |
| Length X [mm] | 122.0 |
| Max Operating Pressure (bar) | 8.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 590.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 3.0 |
| Moment My max. [Nm] | 5.0 |
| Nominal operating pressure [bar] | 6.0 |
| Number of intermediate positions | none |
| Repeat accuracy | 0.098 |
| Torque [Nm] | 0.38 |
| Weight (Kg) | 0.36 |
| Width Y [mm] | 43.0 |
Frequently Asked Questions
How do I get pricing for 1348062?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1348062?
1348062 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1348062?
Key specifications include Angle of rotation [°]: 190; End position adjustability [°]: 90; Fluid consumption (2x nom. angle) [cm³]: 4.8; Height Z [mm]: 35.0. The full specification table on this page lists every published attribute for this part.
How quickly can 1348062 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

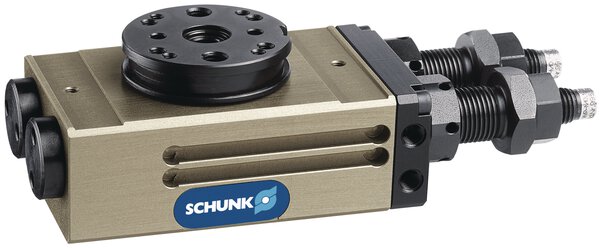

Schunk Schunk RM 12-W-RZ

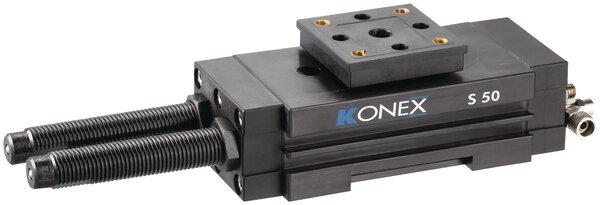

Schunk Schunk Konex S 50
