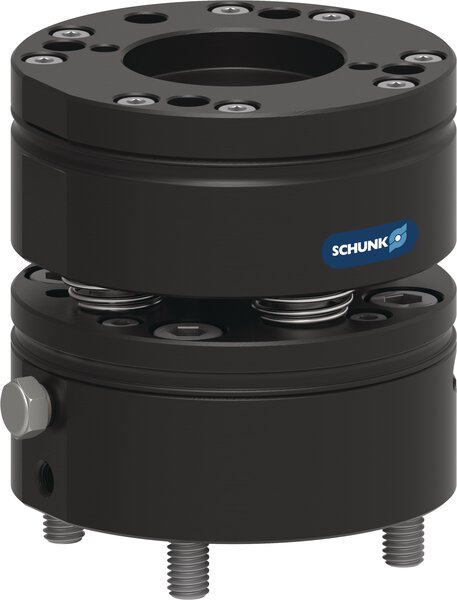

1312860 — Schunk AGE-U 050
KKM Solutions is an independent parts distributor, not an authorized Schunk dealer — how we source.
Schunk 1312860 - Compensation units - Weight (Kg): 0.6; Moment Mx max. [Nm]: 6.8; Moment My max. [Nm]: 6.8.
Overview
Part number 1312860 from Schunk. Specifications on file: Angular deflection [°] ± 3; Compensation XY* [mm] ± 2.7; Compensation Z [mm] 6.1; Deflection rotatory [°] ± 8. KKM Solutions quotes this part with pricing and availability confirmed per order.
The Schunk 1312860 is part of the Compensation units range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.6 and Moment Mx max. [Nm]: 6.8.
The specification set recorded for this part number covers Moment My max. [Nm]: 6.8; Moment Mz max. [Nm]: 3.4; Compensation XY* [mm]: ± 2.7; Compensation Z [mm]: 6.1; Angular deflection [°]: ± 3; Deflection rotatory [°]: ± 8; Recommended handling weight, vertical [kg]: 5.0; Min. return force with integrated spring [N]: 36.0; Max. return force with integrated spring [N]: 92.0; Min. operating pressure stiffness adjustment [bar]: 0.3; Max. operating pressure stiffness adjustment [bar]: 2.1; Min. operating pressure locking [bar]: 4.1. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Angular deflection [°] | ± 3 |
|---|---|
| Compensation XY* [mm] | ± 2.7 |
| Compensation Z [mm] | 6.1 |
| Deflection rotatory [°] | ± 8 |
| Max. operating pressure locking [bar] | 6.9 |
| Max. operating pressure stiffness adjustment [bar] | 2.1 |
| Max. return force with integrated spring [N] | 92.0 |
| Min. operating pressure locking [bar] | 4.1 |
| Min. operating pressure stiffness adjustment [bar] | 0.3 |
| Min. return force with integrated spring [N] | 36.0 |
| Moment Mx max. [Nm] | 6.8 |
| Moment My max. [Nm] | 6.8 |
| Moment Mz max. [Nm] | 3.4 |
| Recommended handling weight, vertical [kg] | 5.0 |
| Robot-side connection | ISO 9409-1-50-4-M6 |
| Tool-side connection | ISO 9409-1-50-4-M6 |
| Weight (Kg) | 0.6 |
Product details
| Manufacturer | Schunk |
|---|---|
| Manufacturer part number | 1312860 |
| Published specifications | 17 attributes listed |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 1312860?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1312860?
1312860 is made by Schunk. KKM Solutions is an independent distributor, not an authorized Schunk dealer: we source the exact Schunk part number 1312860, and the quote confirms condition and lead time before you order.
Is the 1312860 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the 1312860, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of 1312860?
No published lifecycle status is on file for 1312860. Schunk lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of 1312860?
Key specifications include Angular deflection [°]: ± 3; Compensation XY* [mm]: ± 2.7; Compensation Z [mm]: 6.1; Deflection rotatory [°]: ± 8. The full specification table on this page lists every published attribute for this part.
How much does 1312860 weigh?
Per the published specification for 1312860: Recommended handling weight, vertical [kg]: 5.0; Weight (Kg): 0.6. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can 1312860 ship?
Lead time for 1312860 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
