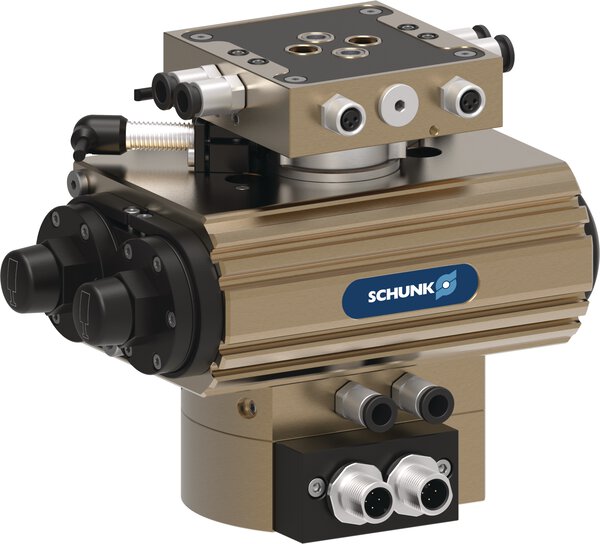

Schunk SRU-plus-D1 50-W-180-3-VM-8-M12-AS
Schunk 1001714 - Rotary Actuators - Weight (Kg): 14.95; Repeat accuracy: 0.05; Torque [Nm]: 50.3.
In our catalog, the 1001714 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 14.95 and Repeat accuracy: 0.05.
The specification set recorded for this part number covers Torque [Nm]: 50.3; Max Operating Pressure (bar): 6.5; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; IP protection class: 67; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Cleanroom class ISO 14644-1: 1999; Moment My max. [Nm]: 340.0; Max. axial force Fz max. [N]: 9000.0; Angle of rotation [°]: 180; End position adjustability [°]: 3. See the Specifications tab on this page for the full technical table.
| Adjustability of middle position [°] | 3.0 |
|---|---|
| Angle of rotation [°] | 180 |
| Cleanroom class ISO 14644-1 | 1999 |
| Diameter of connecting hose | 8 x 6 x 1 |
| End position adjustability [°] | 3 |
| End position damping | hydr. damper |
| Fluid consumption (2x nom. angle) [cm³] | 776.0 |
| IP protection class | 67 |
| Max Operating Pressure (bar) | 6.5 |
| Max. ambient temperature [°C] | 60.0 |
| Max. axial force Fz max. [N] | 9000.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Moment My max. [Nm] | 340.0 |
| Nominal operating pressure [bar] | 6.0 |
| Number of intermediate positions | 1 x VM (locked) |
| Repeat accuracy | 0.05 |
| Torque [Nm] | 50.3 |
| Version with electrical feed-throughs | yes |
| Version with fluid feed-through | yes |
| Version with M12 connector | yes |
| Weight (Kg) | 14.95 |
Frequently Asked Questions
How do I get pricing for 1001714?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1001714?
1001714 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1001714?
Key specifications include Adjustability of middle position [°]: 3.0; Angle of rotation [°]: 180; Cleanroom class ISO 14644-1: 1999; Diameter of connecting hose: 8 x 6 x 1. The full specification table on this page lists every published attribute for this part.
How quickly can 1001714 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
