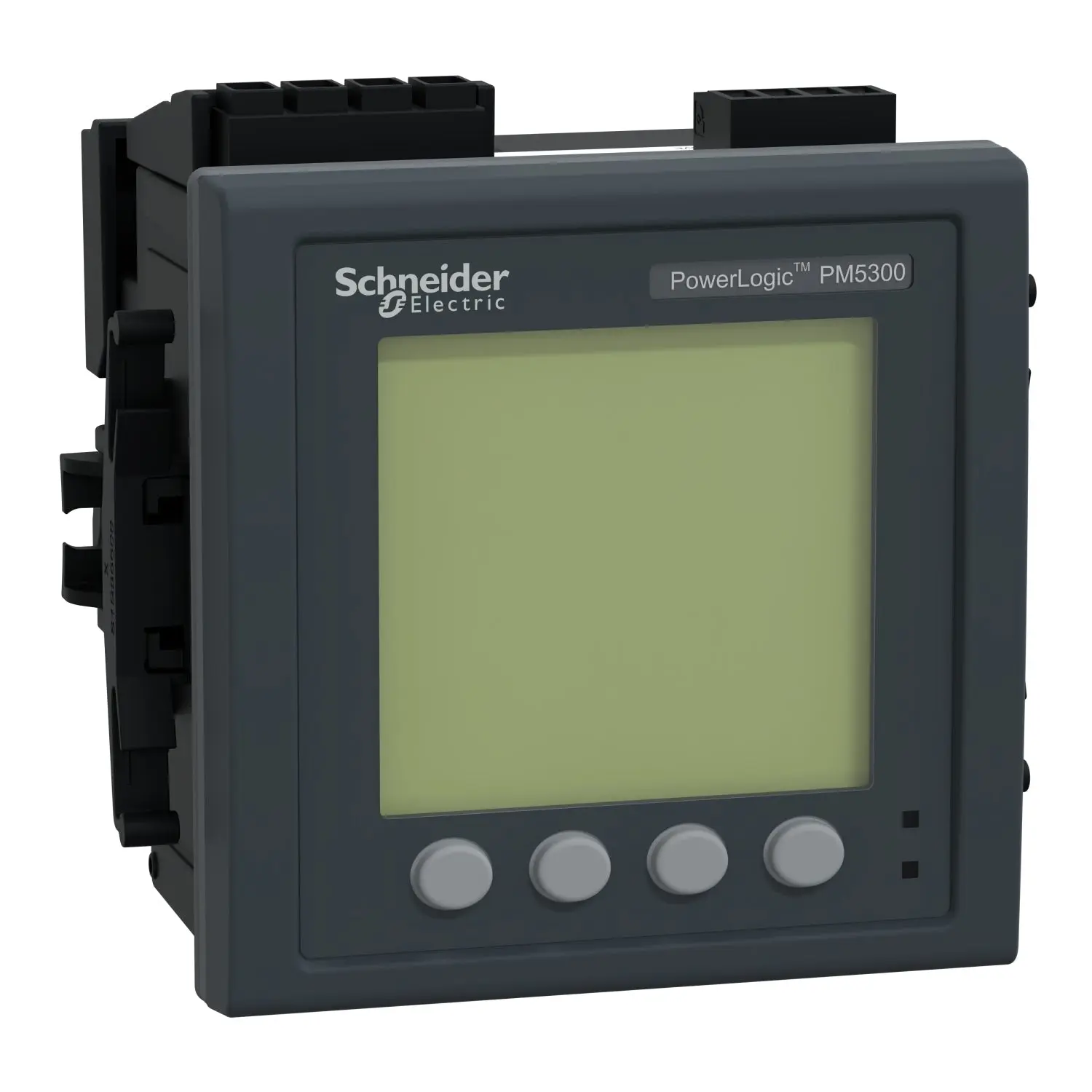

Schneider METSEPM5330 power meter PowerLogic PM5330
Schneider Electric METSEPM5330 — PowerLogic PM5000 power meter: accuracy class Class 0.5S active energy per IEC 62053-22, IP54 display / IP30 rear per IEC 60529, -25...70°C operating range.
The Schneider Electric METSEPM5330 is a power meter from the PowerLogic PM5000 range. Published specifications for this part number include IP54 display / IP30 rear per IEC 60529, panel mount (frame) mounting, -25...70°C operating range, certified CE (IEC 61010-1), CULus (UL 61010-1), accuracy class Class 0.5S active energy per IEC 62053-22. Further catalogue data covers ct input rating, communication, connections, digital inputs / outputs, dimensions (wxhxd), display, frequency range, harmonic analysis. KKM Solutions sources Schneider Electric components to order. Request a quote from KKM Solutions for current pricing, lead time and availability.
| Accuracy class | Class 0.5S active energy per IEC 62053-22 |
|---|---|
| Certifications | CE (IEC 61010-1), CULus (UL 61010-1) |
| Communication | Modbus RTU/ASCII over RS485, 9.6/19.2/38.4 kbaud, 2500 V isolation; JBUS |
| Connections | screw terminal blocks (voltage, CT, I/O, relay); RJ45 connector |
| CT input rating | 1 A / 5 A |
| Digital inputs/outputs | 2 / 2 |
| Dimensions (WxHxD) | 96 x 96 x 72 mm |
| Display | monochrome graphic LCD, 128 x 128 pixels |
| Frequency range | 45...65 Hz |
| Harmonic analysis | up to 31st harmonic |
| IP Rating | IP54 display / IP30 rear per IEC 60529 |
| Measured voltage | 35...760 V AC phase-to-phase / 20...400 V AC phase-to-neutral |
| Measurement accuracy | active energy +/-0.5%, reactive energy +/-2%, frequency +/-0.05% |
| Memory | 256 kB |
| Mounting | panel mount (frame) |
| Network type | 3P+N, 3P, 1P+N |
| Operating altitude | 2000 m CAT III / 3000 m CAT II |
| Operating Temperature | -25...70°C |
| Product type | Power meter |
| Relay outputs | 2 |
| Sampling rate | 64 samples/cycle |
| Series / range | PowerLogic PM5000 |
| Storage Temperature | -40...85°C |
| Supply voltage | 90...450 V AC (45...65 Hz) / 100...300 V DC |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does METSEPM5330 cost?
METSEPM5330 is listed at CA$596.95 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the METSEPM5330?
METSEPM5330 is a Schneider Electric part. KKM Solutions sources Schneider Electric components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is METSEPM5330 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for METSEPM5330 — check Schneider Electric's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of METSEPM5330?
Key specifications include Accuracy class: Class 0.5S active energy per IEC 62053-22; Certifications: CE (IEC 61010-1), CULus (UL 61010-1); Communication: Modbus RTU/ASCII over RS485, 9.6/19.2/38.4 kbaud, 2500 V isolation; JBUS; Connections: screw terminal blocks (voltage, CT, I/O, relay); RJ45 connector. The full specification table on this page lists every published attribute for this part.
How quickly can METSEPM5330 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
