Schneider LADN116 Auxiliary contact block
Schneider Electric LADN116 — TeSys Deca industrial contactor: connection type Lugs-ring terminals (external diameter: 8 mm), -5...60 °C operating range, width 26 mm / Height: 48 mm / Depth: 42 mm.
The Schneider Electric LADN116 is a industrial contactor from the TeSys Deca range. It is supplied as a auxiliary contact block. Published specifications for this part number include connection type Lugs-ring terminals (external diameter: 8 mm), dark grey finish, -5...60 °C operating range, width 26 mm / Height: 48 mm / Depth: 42 mm, built to EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1, certified CB Scheme, UL, CSA, CCC, EAC, UKCA. Further catalogue data covers contacts operation, conventional free air thermal current [ith], ip protection rating, insulation resistance, mechanical durability, minimum switching current, minimum switching voltage, mounting location. KKM Solutions sources Schneider Electric components to order. Request a quote from KKM Solutions for current pricing, lead time and availability.
| Certifications | CB Scheme, UL, CSA, CCC, EAC, UKCA |
|---|---|
| Colour | Dark grey |
| Connection type | Lugs-ring terminals (external diameter: 8 mm) |
| Contacts operation | Instantaneous |
| Conventional free air thermal current (Ith) | 10 A at 60 °C |
| Insulation resistance | greater than 10 MOhm |
| IP protection rating | IP20 (IEC 60529) |
| Mechanical durability | 30 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Mounting location | Front |
| Non-overlap time | 1.5 ms (energisation and de-energisation) |
| Operating altitude | 3000 m |
| Operating Temperature | -5...60 °C |
| Pole contact composition | 1 NO + 1 NC |
| Product type | Auxiliary contact block |
| Protection type | GG fuse 10 A |
| Rated insulation voltage (Ui) | 690 V (IEC 60947-5-1) / 600 V (UL, CSA) |
| Rated making capacity (Irms) | 140 A AC / 250 A DC (IEC 60947-5-1) |
| Rated operational current (Ie) | 6 A at 120 V AC-15 / 1.04 A at 690 V AC-15 / 0.55 A at 125 V DC-13 / 0.1 A at 600 V DC-13 |
| Rated operational voltage (Ue) | 690 V AC, 25...400 Hz |
| Series / range | TeSys Deca |
| Standards | EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1 |
| Storage Temperature | -60...80 °C |
| Tightening torque | 1.7 N.m (M3.5) |
| Width | 26 mm / Height: 48 mm / Depth: 42 mm mm |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does LADN116 cost?
LADN116 is listed at CA$7.75 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the LADN116?
LADN116 is a Schneider Electric part. KKM Solutions sources Schneider Electric components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is LADN116 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for LADN116 — check Schneider Electric's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of LADN116?
Key specifications include Certifications: CB Scheme, UL, CSA, CCC, EAC, UKCA; Colour: Dark grey; Connection type: Lugs-ring terminals (external diameter: 8 mm); Contacts operation: Instantaneous. The full specification table on this page lists every published attribute for this part.
How quickly can LADN116 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Schneider Electric part numbers in this family:
Related Products

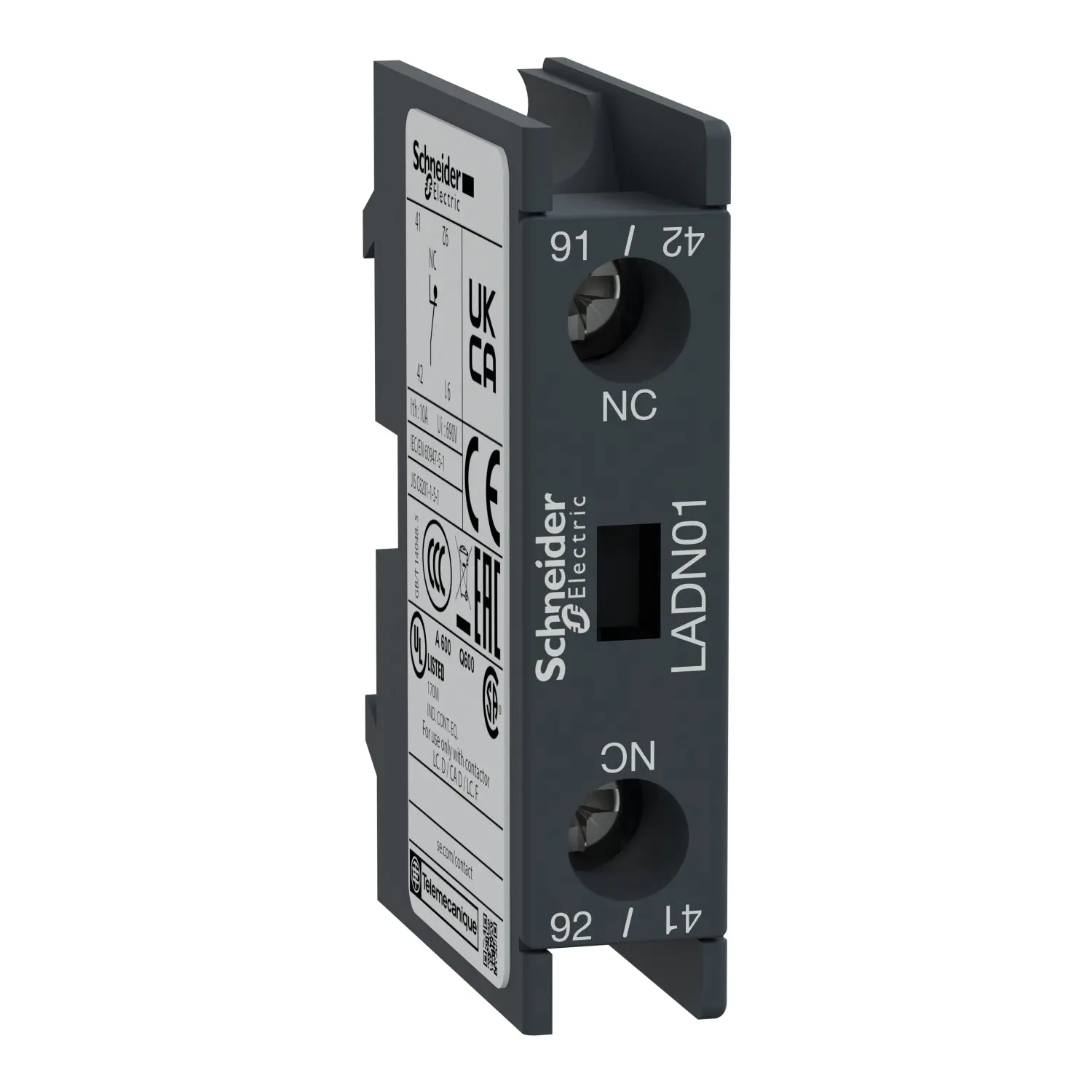

Schneider Electric Schneider LADN01 TeSys D Auxiliary Contact Block 1NC
