ORNO OR-CR-241 Ultra Flat PIR Motion Sensor 360° Ceiling 230V IP20
Orno OR-CR-241 — sensor: detection range 6 m floor diameter; 3 m sideways and 3 m frontally, dimensions 115 mm diameter × 22 mm depth; weight 105 g; colour: white; material: thermoplastic; connection: screw terminal, Ceiling surface mount only (not suitable for wall mounting); optimum height 2.2–.
The Orno OR-CR-241 is a sensor. Published specifications for this part number include output Relay; own power consumption 0.5 W, Ceiling surface mount only (not suitable for wall mounting); optimum height 2.2–4 m mounting, −20 to +40 °C operating range, dimensions 115 mm diameter × 22 mm depth; weight 105 g; colour: white; material: thermoplastic; connection: screw terminal, detection range 6 m floor diameter; 3 m sideways and 3 m frontally. Further catalogue data covers detection speed, light intensity threshold (lux), lighting time (time), max. switching power, nominal voltage, protection, sensor type. KKM Solutions sources Orno components to order. Request a quote from KKM Solutions for current pricing, lead time and availability.
| + output | Relay; own power consumption 0.5 W |
|---|---|
| Detection range | 6 m floor diameter; 3 m sideways and 3 m frontally |
| Detection speed | 0.6–1.5 m/s |
| Dimensions | 115 mm diameter × 22 mm depth; weight 105 g; colour: white; material: thermoplastic; connection: screw terminal |
| Light intensity threshold (LUX) | adjustable < 3–2000 lx |
| Lighting time (TIME) | adjustable; minimum switch-on time 10 s, maximum duty cycle 15 min |
| Max. switching power | 2000 W (LED: 500 W) |
| Mounting | Ceiling surface mount only (not suitable for wall mounting); optimum height 2.2–4 m |
| Nominal Voltage | 230 V AC, 50 Hz |
| Operating Temperature | −20 to +40 °C |
| Protection | IP20; operating humidity < 93% |
| Sensor type | Passive infrared (PIR), 360° horizontal detection angle |
| Source stock status | In stock at source |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does OR-CR-241 cost?
OR-CR-241 is listed at CA$10.35 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the OR-CR-241?
OR-CR-241 is a Orno part. KKM Solutions sources Orno components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is OR-CR-241 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for OR-CR-241 — check Orno's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of OR-CR-241?
Key specifications include + output: Relay; own power consumption 0.5 W; Detection range: 6 m floor diameter; 3 m sideways and 3 m frontally; Detection speed: 0.6–1.5 m/s; Dimensions: 115 mm diameter × 22 mm depth; weight 105 g; colour: white; material: thermoplastic; connection: screw terminal. The full specification table on this page lists every published attribute for this part.
How quickly can OR-CR-241 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Orno part numbers in this family:
- OR-CR-201/B — ORNO OR-CR-201/B PIR Motion Sensor 180° 230V 1200W IP44
- OR-CR-212 — ORNO OR-CR-212 Microwave Motion Sensor 360° 230V 1200W IP20 with Cover
- OR-CR-231 — ORNO OR-CR-231 DIN Twilight Sensor with External Probe IP65
- OR-CR-232 — ORNO OR-CR-232 Twilight Sensor External Probe IP65 230V 2300W
- OR-CR-233 — ORNO OR-CR-233 Twilight Sensor with External Probe IP65
- OR-CR-235 — ORNO OR-CR-235 Flush Mounted PIR Motion Sensor 360° 230V 800W IP20

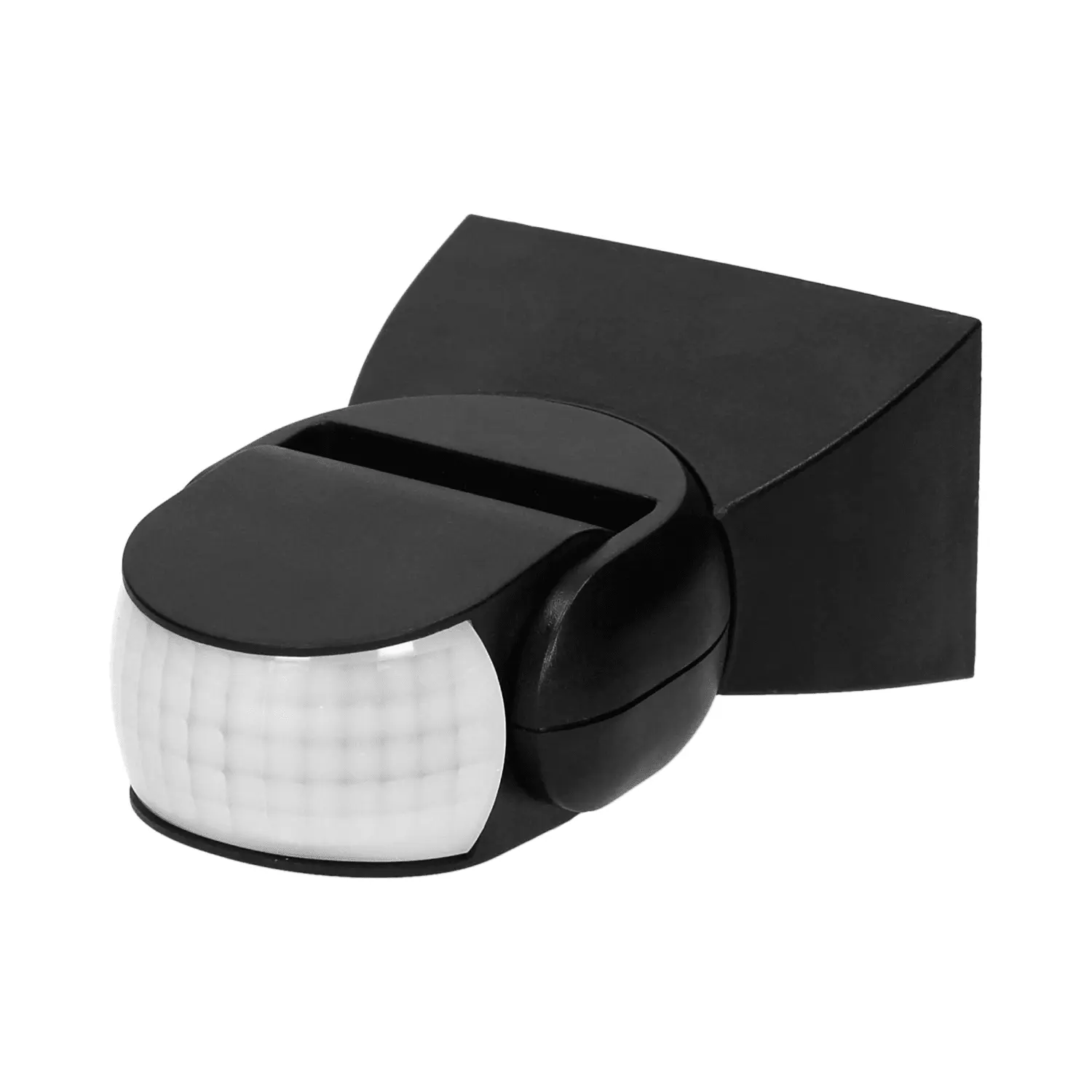

- OR-CR-236/B — ORNO OR-CR-236/B Adjustable PIR Motion Sensor 180° IP65
