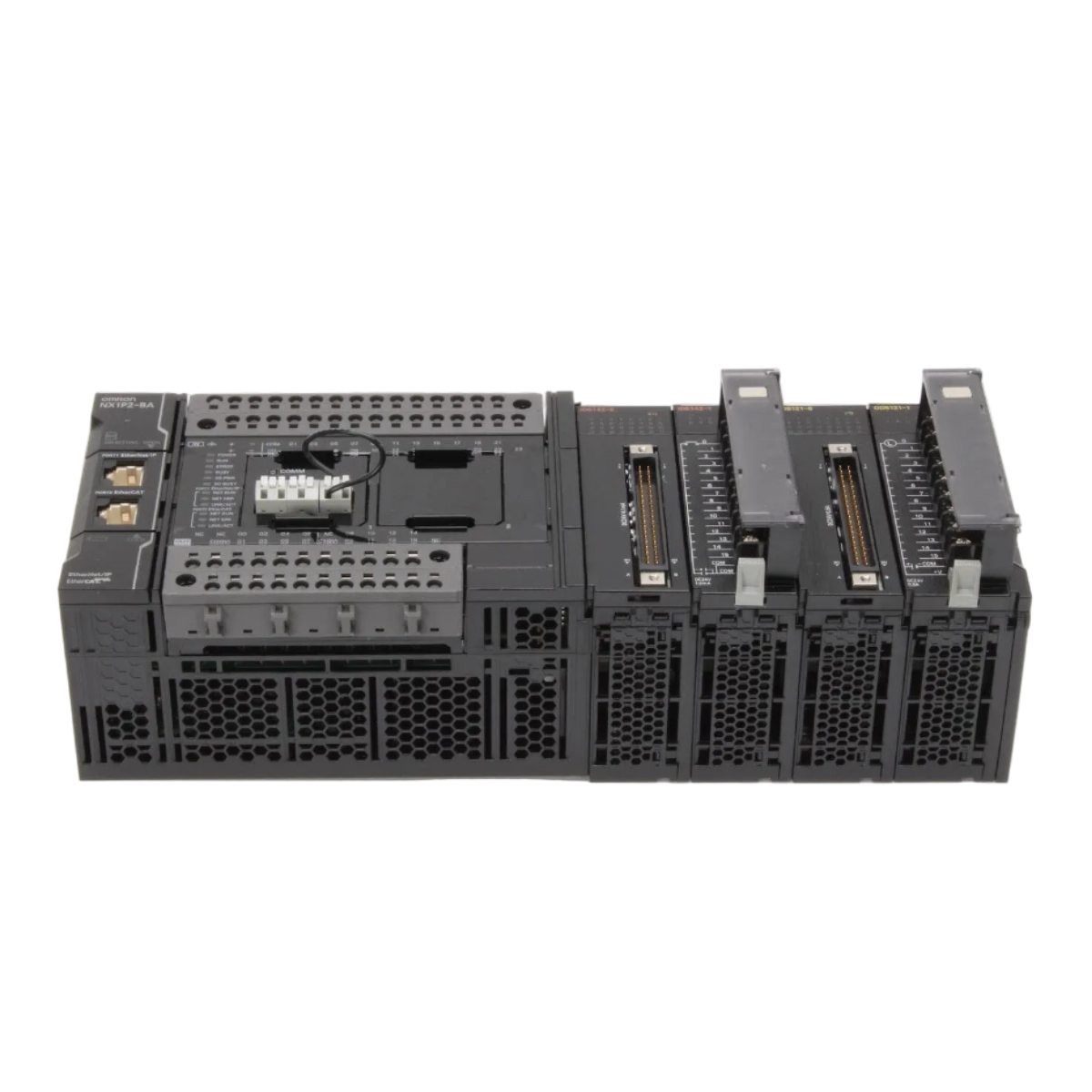

Omron NX1P2-1140DT-BA | Omron NX1P2 Programmable Controller 24 I/O Transistor Output

Description The Omron NX1P2-1140DT-BA is a compact programmable controller designed for high-speed machine control and motion applications. It combines built-in I/O, multi-axis capability, and efficient power management in a space-saving industrial PLC platform. Technical Specifications Condition New/Never Used Surplus Brand Omron Category Industrial Automation Part Number NX1P2-1140DT-BA Subcategory Programmable Logic Controllers Controller Type Programmable Controller (PLC) Program Capacity 1.5 MB Variable Memory Capacity 32 KB Maximum Number of Real Axes 8 Axes Number of Input Points 24 Points Number of Output Points 16 Points Output Type NPN Transistor Rated Supply Voltage 24 VDC Inrush Current (Cold Start) 10 A max / 0.1 ms, 2.5 A max / 150 ms Power Supply Terminal Current 4 A max NX Unit Power Supply Capacity 10 W max NX Unit Power Supply Efficiency 0.8 Dimensions (W × H × D) 154 × 100 × 71 mm Weight 650 g Information About NX1P2-1140DT-BA The NX1P2-1140DT-BA is part of Omron’s NX1P2 controller series, developed to deliver advanced machine control in a compact PLC form factor. It integrates program execution, I/O processing, and motion control capabilities within a single unit, reducing system complexity and panel space requirements. The controller supports up to eight real axes, making it suitable for synchronized motion and automation tasks. Designed for 24 VDC systems, it provides stable power distribution and efficient operation for connected NX expansion units. Key Features Integrated High-Performance PLC Architecture: Combines logic control, motion processing, and I/O handling in a single compact controller. 1.5 MB Program Memory: Supports complex control programs and advanced automation logic without external memory expansion. Multi-Axis Motion Capability: Controls up to eight real axes, enabling coordinated motion in machinery and production systems. Built-In Digital I/O: Includes 24 inputs and 16 NPN transistor outputs for direct connection to sensors and actuators. Efficient Power Management: Provides controlled inrush current handling and optimized power supply efficiency for stable startup and operation. Compact Industrial Design: Space-saving dimensions support installation in compact control panels and distributed automation layouts. NX System Compatibility: Designed to integrate seamlessly with Omron NX series expansion units and automation components. The NX1P2-1140DT-BA delivers the reliability and precision required for compact, high-performance machine control and motion automation systems.
