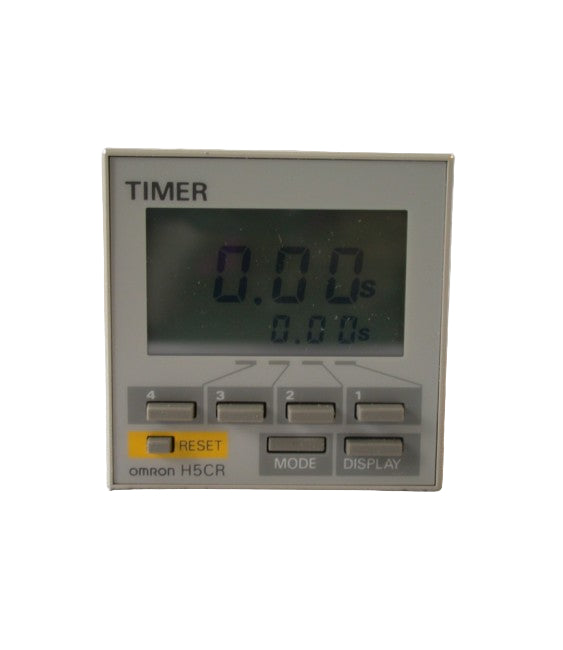

Omron H5CR-L — Panel Meter Instrument

Description The Omron H5CR-L is a digital panel meter timer designed for accurate time measurement and control in industrial automation and process systems. Featuring a compact design and versatile input options, it provides precise timing control in both up and down modes. With clear digital display and easy front-panel configuration, the H5CR-L offers dependable operation for a wide range of control panel applications. Technical Specifications Condition New/Never Used Surplus Brand Omron Category Industrial Automation and Controls Part Number H5CR-L Subcategory Panel Meters / Digital Timers Series H5CR Series Type Digital Timer / Counter Mounting Type Panel Mount Panel Cutout Dimensions 45 × 45 mm (for 48 × 48 mm housing) Display Type Digital LED / LCD Display Display Digits 4 to 6 digits (depending on mode) Operating Modes Up / Down timing, Interval, Repeat, One-shot Timing Range Selectable (from 0.01 sec to 99 hrs, depending on configuration) Reset Method External / Manual Input Signal Type Voltage or contact input Power Supply Voltage 100–240 VAC or 24 VDC (model-dependent) Output Type Relay Output (SPDT or DPDT) Contact Rating 250 VAC, 3 A resistive load Accuracy ±0.3% or less (of full-scale) Ambient Operating Temperature -10°C to +55°C Storage Temperature Range -25°C to +65°C Humidity Range 35–85% RH (non-condensing) Insulation Resistance ≥ 100 MΩ (at 500 VDC) Dielectric Strength 2,000 VAC for 1 min (between terminals) Vibration Resistance 10–55 Hz, 0.75 mm amplitude Shock Resistance 300 m/s² (3 times each direction) Protection Rating IP50 front panel (IP20 overall) Standards Compliance UL, CSA, CE, RoHS Weight Approx. 0.2 kg (0.44 lb) Information About H5CR-L The H5CR-L belongs to Omron’s H5CR Series of multi-function digital timers and counters, widely used in machine control, automation, and process monitoring. This model integrates up/down timing, external reset, and start signal inputs, allowing flexible timing sequences in production and test systems. Designed for panel mounting, it features a bright digital display for easy visibility and offers multiple timing ranges for precise interval management. The H5CR-L’s robust build and high reliability make it suitable for OEM machinery, conveyor systems, and industrial instrumentation panels. Key Features: Multi-Function Timer: Supports up and down timing modes with external control input. Compact Panel Design: Fits standard 48 × 48 mm DIN panel cutouts. High Accuracy: Stable and repeatable timing across multiple selectable ranges. Easy Configuration: Front-panel keypad for quick mode and time setting. Clear Digital Display: LED or LCD readout for real-time process visibility. Wide Input Voltage Range: Operates on standard AC or DC control power. Long Service Life: High-quality relay contacts for extended operational reliability. Omron Industrial Standard: Built for precise timing and control in automation systems. The H5CR-L delivers the reliability and precision required for timing, counting, and sequencing tasks in industrial machinery and process control systems.
