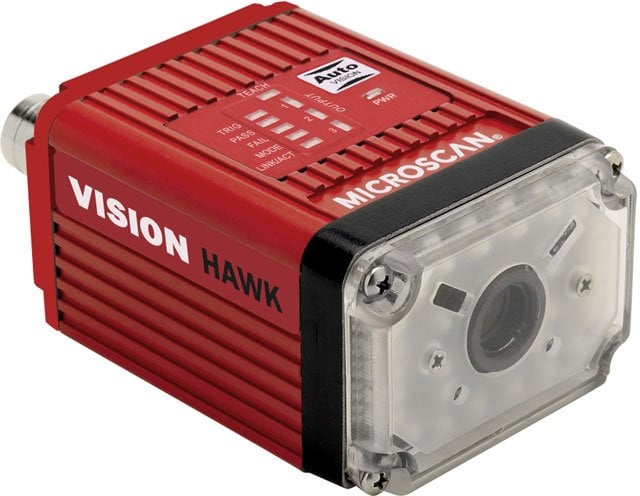

Omron GMV-6800-1002G | Omron Vision Hawk Fixed Barcode Scanner WVGA/SXGA Autofocus IP67

Description The Omron GMV-6800-1002G Vision Hawk Fixed Barcode Scanner is a high-performance industrial smart camera designed for 1D and 2D barcode reading in automation, logistics, and manufacturing environments. Equipped with a liquid lens autofocus system and high-output LED illumination, it captures barcodes at distances from 1 inch to infinity with exceptional clarity. The device features RS-232 and Ethernet interfaces, housed in a durable IP65/67-rated die-cast aluminum enclosure, ensuring reliable operation in demanding industrial settings. Technical Specifications Condition New/Never Used Surplus Brand Omron Microscan Category Barcode and Vision Systems Part Number GMV-6800-1002G Subcategory Fixed Barcode Scanners Series Vision HAWK Series Type Smart Camera / Fixed-Mount Barcode Scanner Sensor Type CMOS/CCD Progressive Scan Resolution WVGA (752×480) / SXGA (1280×960) Focal Range 1" (33 mm) to ∞ (Liquid Lens Autofocus) Light Source High-Output LEDs + 655 nm Laser Aimer Light Source Life 50,000 hours @ 25°C Symbologies Supported Data Matrix, QR, Micro QR, Aztec, PDF417, GS1 Databar, Code 39, Code 128, UPC/EAN, and Postal Codes Communication Interfaces RS-232, Ethernet (TCP/IP, EtherNet/IP) Protocols Supported Point-to-Point, XON/XOFF, TCP/IP, EtherNet/IP (Visionscape) I/O Connections 3 Discrete Outputs, 1 Learn/Trigger Input (Optoisolated) Power Supply 5–28 VDC Power Consumption 105 mA @ 24 VDC (typical) Enclosure Rating IP65/67 (Die-Cast Aluminum Housing) Mounting Fixed / Bracket Mount Indicators Pass, Fail, Trigger, Mode, Power, Network Activity, I/O Operating Temperature 0°C to 50°C Storage Temperature -29°C to 70°C Humidity Up to 90% (non-condensing) Dimensions (H × W × D) 1.59 × 2.27 × 3.79 in (40.5 × 57.6 × 96.3 mm) Weight 10 oz (280 g) Certifications CE, UL/cUL, FCC, CDRH, CB, BSMI, RoHS/WEEE ISO Certification ISO 9001:2008 Application Industrial Barcode Reading, Traceability, Inspection Country of Origin Japan Information About GMV-6800-1002G The GMV-6800-1002G belongs to the Omron Microscan Vision HAWK Series, a family of fixed-mount barcode scanners and smart cameras developed for precision code reading and inspection. It integrates autofocus optics, CMOS/CCD imaging, and advanced decoding algorithms to support a full range of 1D, stacked, and 2D symbologies, including Data Matrix, QR, and PDF417. Designed for rugged applications, the unit features a die-cast aluminum housing rated to IP67, providing dust and moisture resistance. With flexible RS-232 and Ethernet connectivity, software-adjustable shutter speed, and multiple I/O control options, the GMV-6800-1002G provides powerful performance for automated identification and traceability systems across packaging, electronics, and material handling industries. Key Features: Advanced Imaging System: Progressive-scan CMOS or CCD sensor with WVGA/SXGA resolution options for high-quality barcode capture. Liquid Lens Autofocus: Adjustable focal range from 1 inch (33 mm) to infinity for dynamic scanning distances. Comprehensive Code Support: Reads 1D, 2D, stacked, and postal symbologies including Data Matrix, QR, PDF417, and GS1 Databar. Rugged Industrial Housing: Die-cast aluminum enclosure rated IP65/67 for harsh environments. Flexible Communication Options: RS-232 or Ethernet (TCP/IP, EtherNet/IP, Visionscape) for integration with control systems. Integrated Illumination: High-output LEDs ensure consistent lighting for barcodes on varying surfaces. User Feedback Indicators: LED status for power, pass/fail, trigger, and network activity. Wide Power Range: Operates on 5–28 VDC with low current draw for efficient system integration. The GMV-6800-1002G delivers the reliability and precision required for industrial barcode reading, part identification, and automated inspection applications.
