Omron G2R-2-S DC100(S) Switching relay
Omron G2R-2-S DC100(S) plug-in DPDT switching relay with 100 VDC coil, 5 A switching capacity, and -40 to 70°C operating range.
The Omron G2R-2-S DC100(S) is a plug-in switching relay designed for industrial control applications. It features a DPDT contact arrangement and mechanical indicator for clear operational status.
This relay operates at 100 VDC with a power consumption of approximately 0.53 W and supports a maximum switching voltage of 380 VAC and 125 VDC, with a maximum switching current of 5 A. Rated for resistive loads of 5 A at 250 VAC and 5 A at 30 VDC, and inductive loads of 2 A at 250 VAC and 3 A at 30 VDC, it also handles up to 1,250 VA and 150 W resistive switching power. Minimum load is 10 mA at 5 VDC. Operating temperature ranges from -40 to 70°C, and it is RoHS compliant.
| Coil voltage | 100 VDC |
|---|---|
| Contact arrangement | DPDT |
| Indicator | Mechanical |
| Max. switching current | 5 A |
| Max. switching power (inductive) | 500 VA, 90 W |
| Max. switching power(resistive) | 1,250 VA, 150 W |
| Max. switching voltage | 380 VAC, 125 VDC |
| Minimum Load | 10 mA @ 5 VDC |
| Operating Temperature | -40 to 70°C |
| Power consumption | Approx. 0.53 W |
| Rated load (inductive) | 2A @ 250 VAC, 3 A @ 30 VDC |
| Rated load (resistive) | 5 A @ 250 VAC, 5 A @ 30 VDC |
| RoHS Compliant | Yes |
| Terminal | Plug-in |
Frequently Asked Questions
How do I get pricing for G2R-2-S DC100(S)?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the G2R-2-S DC100(S)?
G2R-2-S DC100(S) is a Omron part. KKM Solutions sources Omron components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of G2R-2-S DC100(S)?
Key specifications include Coil voltage: 100 VDC; Contact arrangement: DPDT; Indicator: Mechanical; Max. switching current: 5 A. The full specification table on this page lists every published attribute for this part.
How quickly can G2R-2-S DC100(S) ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Omron Omron G2R-2-S AC240(S)
Omron Omron G2R-2-S DC110(S)
Omron Omron G2R-2-S DC12(S)

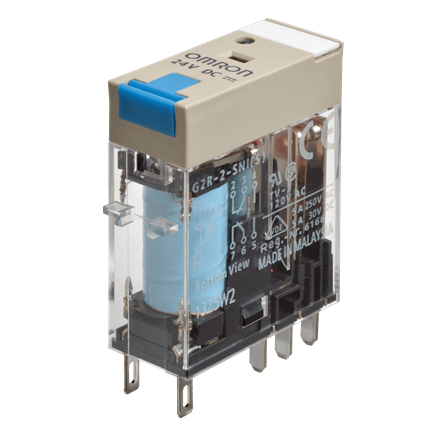

Omron Omron G2R-2-S AC24(S)
