Omron F3SJ-E0465N25 Omron

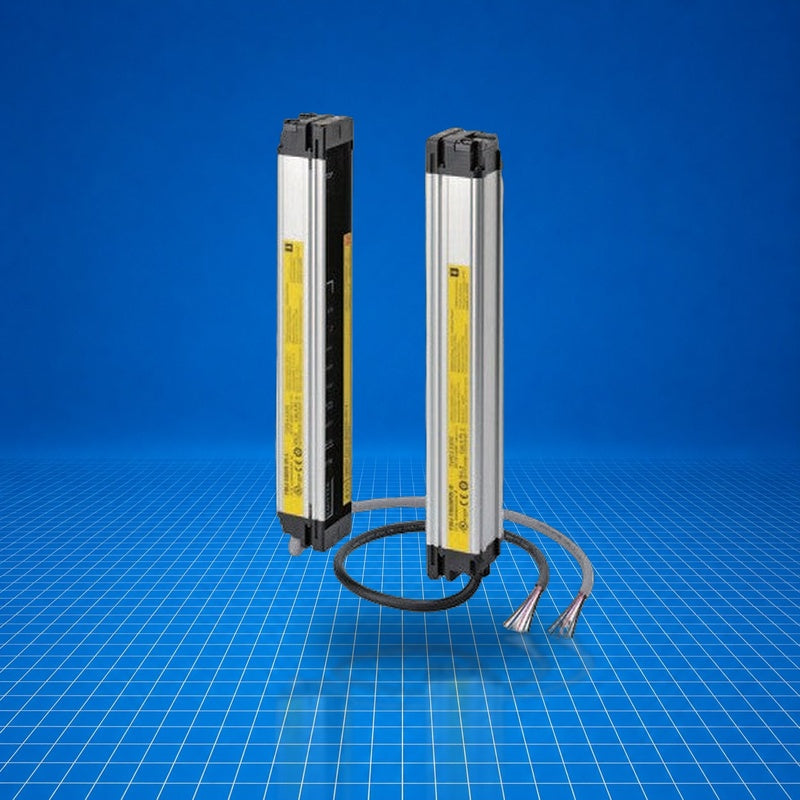

Product Overview The Omron F3SJ-E0465N25 is a Type 4 safety light curtain in the F3SJ-E series, designed for hand protection in industrial safety applications. With a 20 mm beam gap and a protective height of 465 mm, it integrates dual NPN safety outputs (OSSD) for reliable detection. It connects using a 3 m prewired discrete cable and is utilized primarily to safeguard access points, machinery openings, or manufacturing stations where space and hand-entry protection are critical. F3SJ-E0465N25 is part of the F3SJ-E platform for cost-conscious safety system integration. Best Suited For Hand-held access protection Safety interlocks on guarding doors Compact machine tool safety OEM systems requiring straightforward safety curtains Beam gap 20 mm Protective height 465 mm Safety outputs 2 × NPN OSSD 200 mA max Operating range 0.2 to 7 m Ingress protection IP65 Technical Specifications I/O & Electrical Power supply voltage 24 V DC ±20 % (ripple p-p 10 % max.) No-load consumption current (Receiver) Up to 22 beams: 40 mA max Safety output load current 200 mA max per output Test input ON voltage 0 to 3 V (approx. 4 mA short-circuit) Physical & Environmental Response time (ON to OFF) 15 ms max Operating temperature -10 to 55 °C Storage temperature -25 to 70 °C Ambient humidity (operating) 35 % to 85 % RH (no condensation) Weight (emitter or receiver) Weight (g) = (protective height) × 1.59 + 330 Certifications PLe (ISO 13849-1) Category 4 (IEC 61496-1/2)
