Omron E3S-R66 | Omron Retro-Reflective Photoelectric Sensor NPN
Overview
Description The Omron E3S-R66 is a retro-reflective photoelectric sensor with M.S.R. function designed for object detection in industrial automation systems. It operates on 10 to 30 VDC and provides an NPN open-collector output. The sensor supports a sensing distance of 0.1 to 1 meter when used with a compatible reflector. Technical Specifications Condition New/Never Used Surplus Brand Omron Category Sensors & Switches Part Number E3S-R66 Subcategory Photoelectric Series E3S Sensing Method Retro-Reflective with M.S.R. Sensing Distance 0.1 m to 1 m (with reflector) Light Source Red LED (660 nm) Supply Voltage 10–30 VDC Output Type NPN Open Collector Max Output Rating 30 VDC, 100 mA Response Time 1 ms max Operating Temperature 0°C to +40°C Protection Rating IP67 Connection Method M12 Connector Weight 0.13 lbs Information About E3S-R66 The E3S-R66 belongs to the Omron E3S series of square-type photoelectric sensors. It uses a red LED light source (660 nm) and a retro-reflective sensing method with M.S.R. functionality for stable detection performance. The unit features selectable Light-ON/Dark-ON operation and incorporates output short-circuit and reverse polarity protection. Designed with an IP67-rated housing and M12 connector interface, it is suitable for industrial environments requiring reliable object sensing. Key Features: Retro-Reflective Sensing: Detects objects using reflector-based light return. Sensing Range 0.1–1 m: Effective detection with compatible reflector. Red LED Light Source: 660 nm visible light emission. NPN Open-Collector Output: Rated 30 VDC max, 100 mA max. 10–30 VDC Supply Voltage: Compatible with standard industrial DC systems. Selectable Light-ON/Dark-ON Mode: Configurable output operation. IP67 Protection Rating: Dust-tight and water-resistant enclosure. M12 Connector Interface: Secure industrial connection method. The E3S-R66 delivers the reliability and precision required for retro-reflective object detection in industrial automation systems.
Specifications
| Tag | New |
|---|---|
| Weight | 0.13 lb |
Product details
| Manufacturer | Omron |
|---|---|
| Manufacturer part number | E3S-R66 |
| KKM catalog reference | OMRON-E3S-R66 |
| Product category | Photoelectric |
| Published specifications | 2 attributes listed |
| Related part numbers | 13 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does E3S-R66 cost?
E3S-R66 is listed at CA$661.03 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the E3S-R66?
E3S-R66 is a Omron part. KKM Solutions sources Omron components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is E3S-R66 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for E3S-R66 — check Omron's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of E3S-R66?
Key specifications include Tag: New; Weight: 0.13 lb. The full specification table on this page lists every published attribute for this part.
How quickly can E3S-R66 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Omron part numbers in this family:
- E3S-R1B4 — Omron Automation E3S-R1B4
- E3S-R1E4 — Omron Automation E3S-R1E4
- E3S-R31 — Omron E3S-R31 Photoelectric sensor, retroreflective, 1m, DC, 3-wire, PNP, horizontal, 2m cable
- E3S-R32 — Omron E3S-R32 Photoelectric sensor, retroreflective, 300 mm, DC, 3-wire, PNP, horizontal, 2…
- E3S-R36 — Omron E3S-R36 | Omron E3S Retro-Reflective Photoelectric Sensor PNP 10–30VDC IP67
- E3S-R62 — Omron E3S-R62 Photoelectric sensor, retroreflective, 300mm, DC, 3-wire, NPN, vertical, 2m cable
- E3S-R67 — Omron E3S-R67 | Retroreflective Photoelectric Sensor, 10m
- E3S-R81 — Omron E3S-R81 Photoelectric sensor, retroreflective, 1m, DC, 3-wire, PNP, vertical, 2m cable
- E3S-R82 — Omron E3S-R82 Photoelectric sensor, retroreflective, 300mm, DC, 3-wire, PNP, vertical, 2m cable
- E3S-R86 — Omron Automation E3S-R86
- E3S-RS30B4-30 — Omron Automation E3S-RS30B4-30
- E3S-RS30E4 2M — Omron E3S-RS30E4 2M RETRO-POL,TOP SENSING,DC,NPN,L.ON/D.ON,30 CM
- E3S-RS30E4-30 — Omron E3S-RS30E4-30
Related Products
Omron Omron E3S-LS20B4S1 | Omron 5–25cm Diffuse Photoelectric Sensor PNP

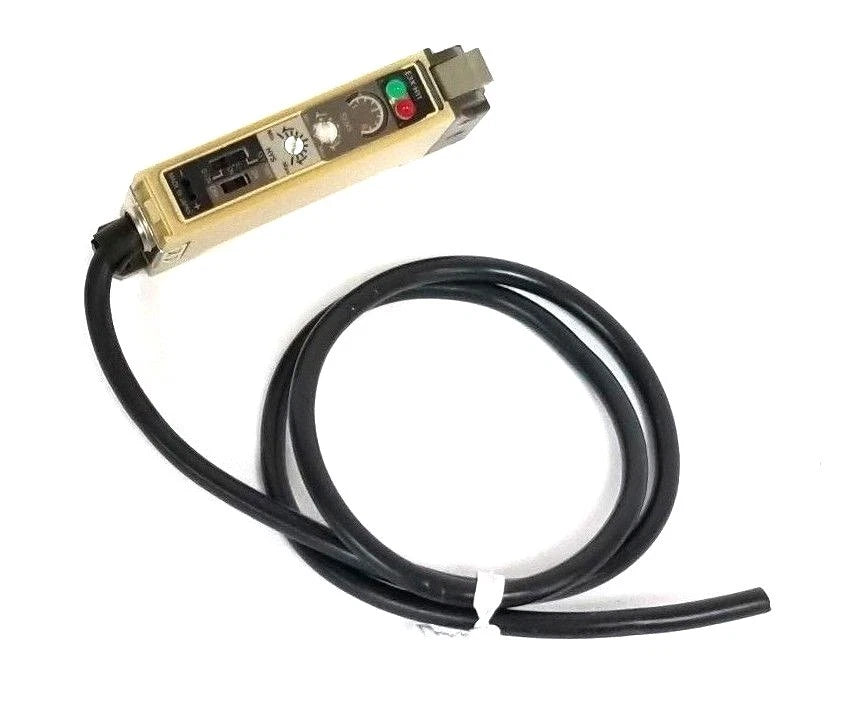

Omron Omron E3X-H11 | Omron Fiber Optic Amplifier NPN 10–30VDC
Omron Omron E3S-CD66 | Omron Diffuse Photoelectric Sensor 700mm 10-30VDC…
Omron E3S-CD63 | Omron Diffuse Photoelectric Sensor 40mm NPN/PNP…

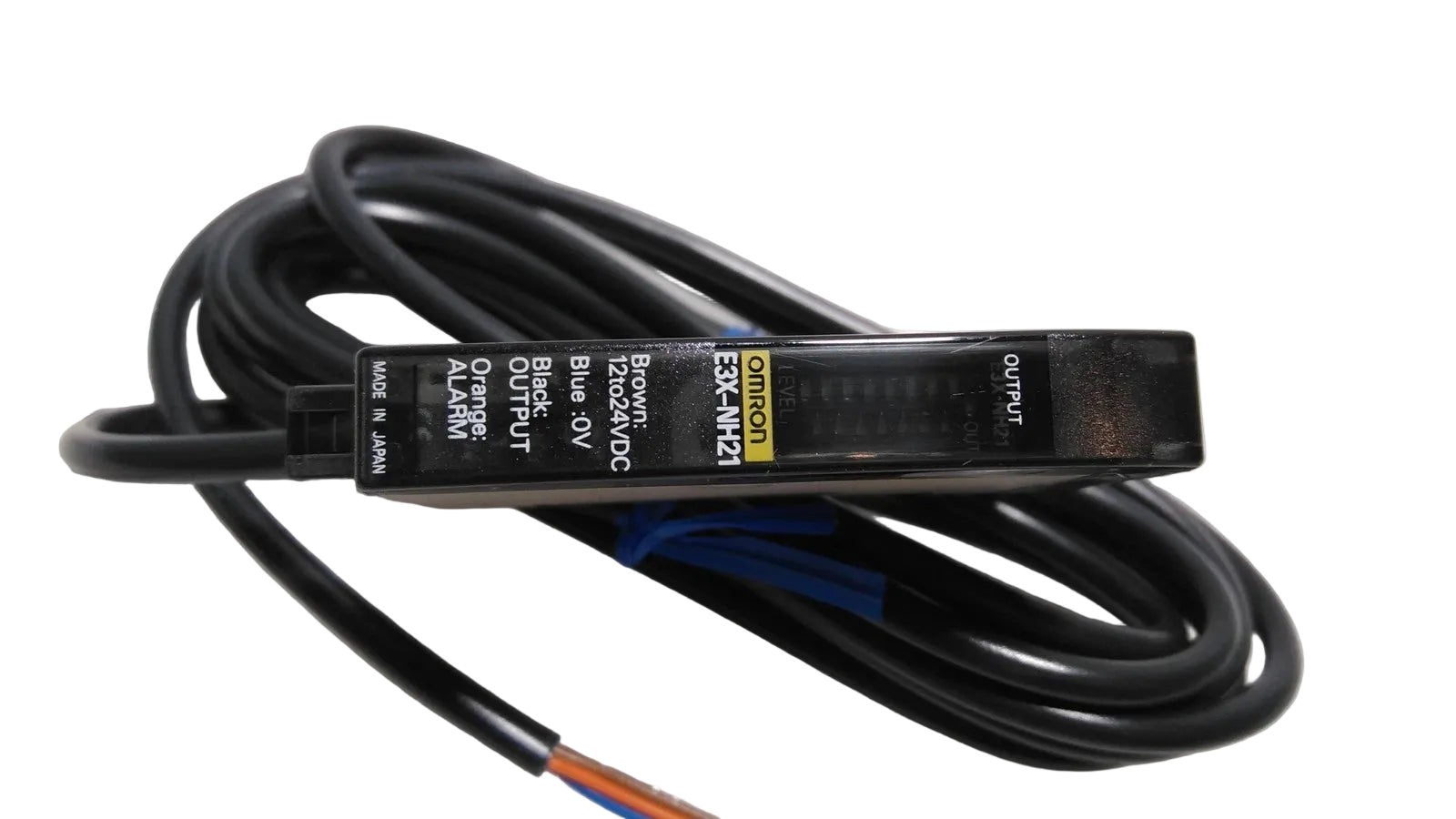

Omron Omron E3X-NH21 | Omron Fiber-Optic Sensor Amplifier with Timer,…
