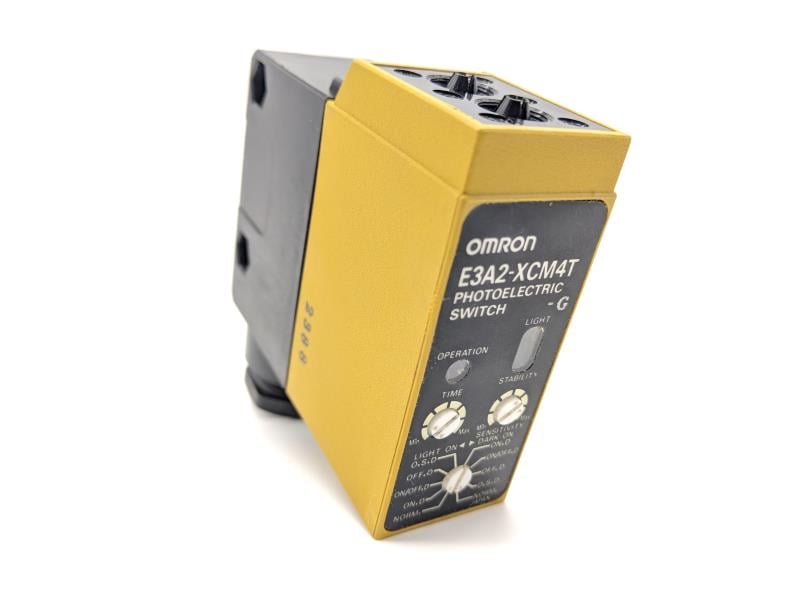

E3A2-XCM4T Omron Fiber-Optic Photoelectric Sensor with Red LED
KKM Solutions is an independent parts distributor, not an authorized Omron dealer — how we source.
Overview
Part number E3A2-XCM4T from Omron, listed in Photoelectric Sensors. KKM Solutions quotes this part with pricing and availability confirmed per order.
Description The Omron E3A2-XCM4T Photoelectric Sensor is a slim, rectangular fiber-optic amplifier unit designed for reliable object detection in industrial automation systems. It features a pulse-modulated red LED light source with switch-selectable Light-ON or Dark-ON operation modes. Technical Specifications Condition New/Never Used Brand Omron Category Industrial Sensors Part Number E3A2-XCM4T Subcategory Photoelectric Sensor Series E3A2 Sensor Type Fiber-optic photoelectric amplifier Light Source Pulse-modulated red LED Sensing Method Through-beam or reflective (with fiber cable) Operating Modes Light-ON / Dark-ON (switch selectable) Output Type Plug-in output terminal block Connection Type Screw terminals Supply Voltage 12–24 VDC Response Time Approx. 1 ms Operating Range Dependent on fiber cable type Indicators LED operation indicator Mounting Type Panel or DIN rail (via mounting accessories) Housing Shape Slim rectangular Material ABS plastic body Ingress Protection IP50 (typical) Operating Temperature Range -10°C to +55°C (14°F to 131°F) Part Status Discontinued by manufacturer Compliance CE Certified Dimensions Approx. 65 mm H × 18 mm W × 40 mm D Weight 0.2 lb (0.09 kg) Information About E3A2-XCM4T The E3A2-XCM4T is part of Omron’s E3A2 Series of compact photoelectric sensors, engineered for precision detection in space-constrained environments. This fiber-optic type sensor is compatible with Omron’s fiber-optic cables, providing flexible sensing configurations for various applications such as packaging, assembly, and part positioning. The sensor offers Light-ON/Dark-ON mode selection via a simple switch, making it adaptable to different control logic requirements. Designed with TDR (Through-beam Detection Relay) universal terminals and a robust housing, the E3A2-XCM4T offers reliable performance for industrial automation tasks. Key Features: Fiber Optic Design: Compatible with Omron fiber-optic cables for adaptable sensing configurations. Pulse-Modulated Red LED: Provides stable, high-contrast detection with ambient light immunity. Switch-Selectable Operation: Supports both Light-ON and Dark-ON modes for flexible control. Screw Terminal Connections: Simplifies wiring for fast and secure installation. Slim Rectangular Housing: Saves space in densely packed control panels or equipment. Plug-In Output Design: Allows easy replacement or maintenance without rewiring. Universal Mounting: Fits easily into standard fiber-optic sensor holders. Discontinued Legacy Support: Ideal for maintenance of existing Omron E3A2 system installations. The E3A2-XCM4T delivers the reliability and precision required for accurate optical detection in industrial automation and material handling applications.
Specifications
| Weight | 0.2 lb |
|---|
Product details
| Manufacturer | Omron |
|---|---|
| Manufacturer part number | E3A2-XCM4T |
| Product category | Photoelectric Sensors |
| Published specifications | 1 attribute listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does E3A2-XCM4T cost?
E3A2-XCM4T is listed at CA$2,232.87 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the E3A2-XCM4T?
E3A2-XCM4T is made by Omron and is listed in our Photoelectric Sensors category. KKM Solutions is an independent distributor, not an authorized Omron dealer: we source the exact Omron part number E3A2-XCM4T, and the quote confirms condition and lead time before you order.
Is the E3A2-XCM4T new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the E3A2-XCM4T, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of E3A2-XCM4T?
No published lifecycle status is on file for E3A2-XCM4T. Omron lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
How much does E3A2-XCM4T weigh?
Per the published specification for E3A2-XCM4T: Weight: 0.2 lb. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can E3A2-XCM4T ship?
Lead time for E3A2-XCM4T is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Omron part numbers in this family:
Frequently Searched Omron Part Numbers
Related Products
Omron Omron E3AS-HL500MT-M1TJ Laser Photoelectric Sensor 500mm IO-Link PNP

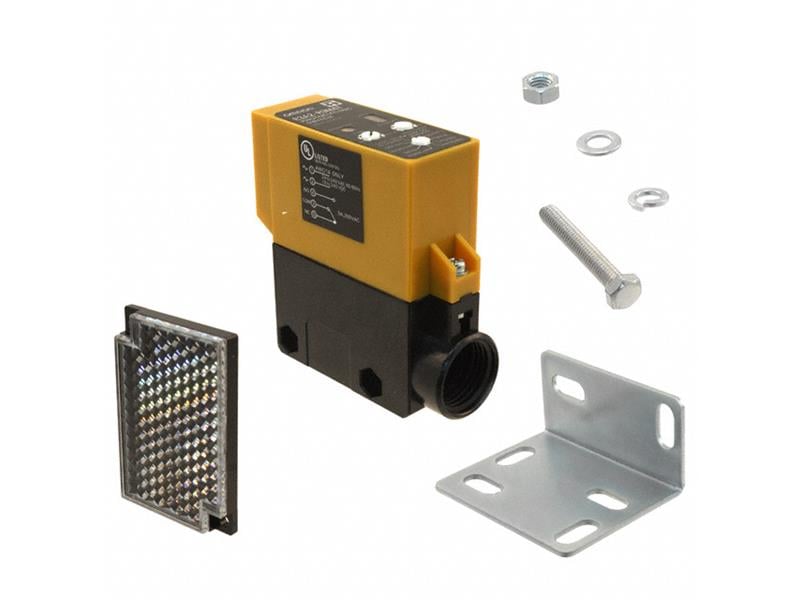

Omron Omron E3A2-R3M4T | Omron Photoelectric Sensor
Omron Omron E3B2-D2M4-US Photoelectric Sensor Diffuse Reflective 2m Range Relay…
Omron Omron E3A2-DS70M4T Photoelectric Sensor 70cm Diffuse Relay Timer

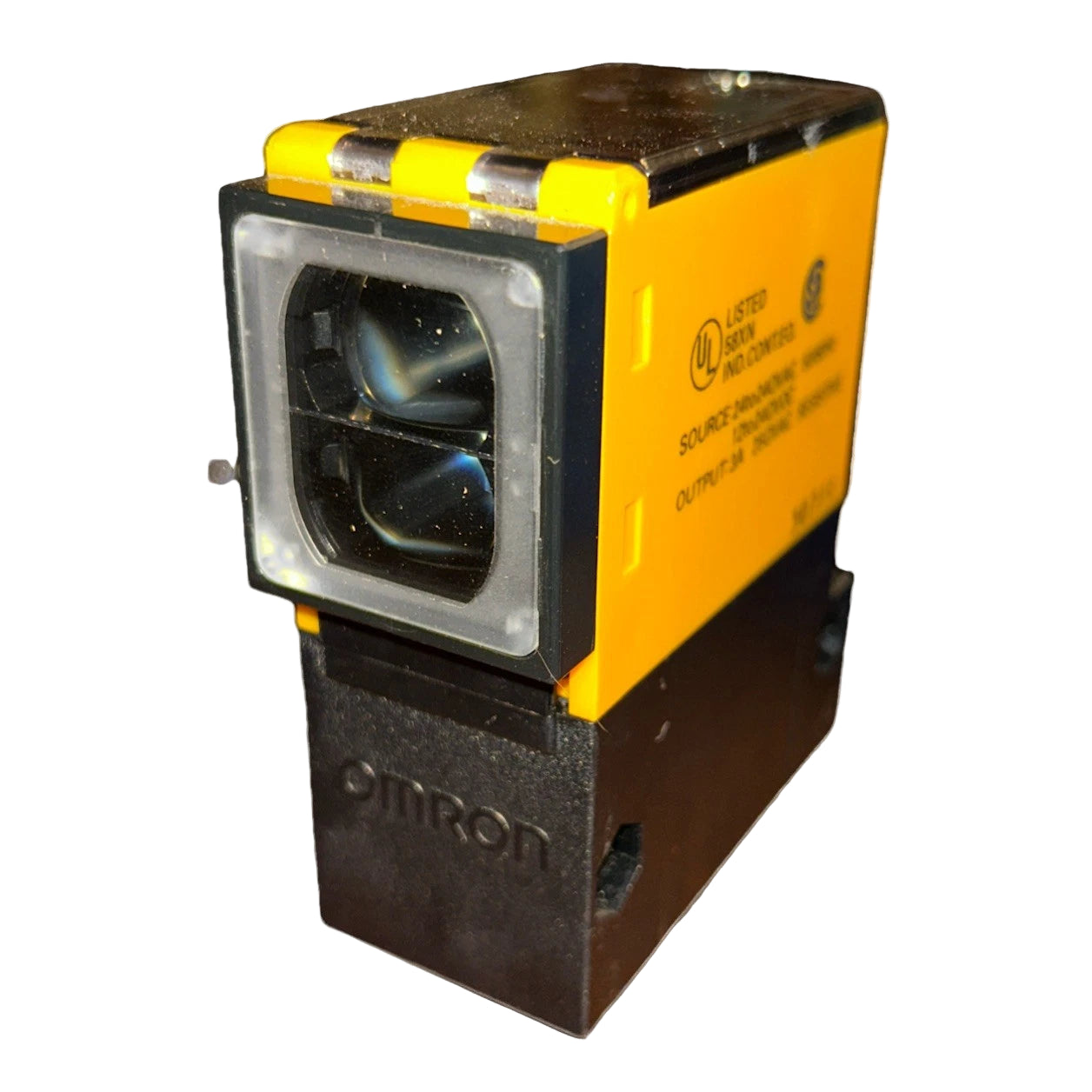

Omron Omron E3B2-R5M4-US | Omron Photoelectric Sensor, Retroreflective, 5 m…
