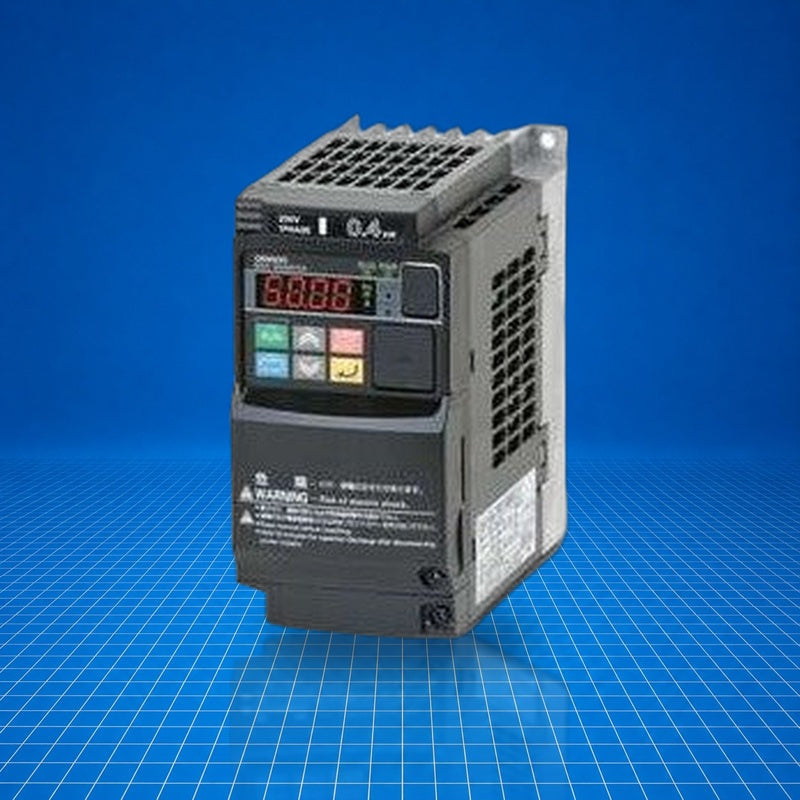

Omron 3G3MX2-AB004-E Omron

Product Overview The 3G3MX2-AB004-E is an Omron MX2-Series V2 type multi-function compact inverter designed for single-phase 200 V AC motor control. It provides variable-frequency drive capability in industrial control systems, enabling precise speed and torque regulation through V/f and sensorless vector control methods. Rated for approximately 0.4 kW normal-load and 0.55 kW light-load applications, it suits conveyors, small pumps, fans and machine tools. The unit integrates braking and current protection features and interfaces via standard PWM control. Best Suited For Single-phase 200 V AC motor drive applications Conveyors and small pump systems Light industrial machinery speed control Compact panel installation where space is limited Normal-load motor capacity (kW) 0.4 kW Light-load motor capacity (kW) 0.55 kW Rated input voltage Single-phase 200 V -15 % to 240 V +10 %, 50/60 Hz ±5 % Enclosure rating IP20 (open type) Control methods V/f, sensorless vector Technical Specifications I/O & Electrical Rated input voltage Single-phase 200 V -15 % to 240 V +10 %, 50/60 Hz ±5 % Rated input current (ND) 6.3 A Rated input current (LD) 7.3 A Rated output current (ND) 3.0 A Rated output current (LD) 3.5 A Output voltage 3-phase 200 to 240 V (less than input) Communication & Power Control method Phase-to-phase sinusoidal PWM Output frequency range 0.01 to 590 Hz Frequency precision (digital) ±0.01 % of max Frequency precision (analog) ±0.2 % of max (25 ±10 °C) Physical & Environmental Dimensions (W × H × D) 68 × 128 × 125.5 mm Depth with terminals (D1) 27 mm Enclosure rating IP20 (open type) Operating ambient temperature -10 to 50 °C Cooling method Self-cooling (no fan)
